RM38N0EC _56 Audio / Visual / Telematics _111825 PARK ASSIST / MONITORING _0500524 ULTRASONIC SENSOR(for Front) A

PARK ASSIST / MONITORING ULTRASONIC SENSOR(for Front) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ultrasonic sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Ultrasonic sensor	· Ultrasonic sensor detection angle · Ultrasonic sensor detection angle registration	· Toyota Parking Assist-sensor System · Parking Support Brake System	(202406,999999,_56,_111825,_0501857,RM100000002KVJJ,)
Front bumper assembly*	Front television camera view adjustment	Panoramic View Monitor System	(202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
Replacement or removal and installation of 2 or more parts: · Front television camera assembly, Radiator grille sub-assembly or Front bumper assembly · Rear television camera assembly · Side television camera assembly LH or Outer rear view mirror assembly LH · Side television camera assembly RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	(202409,999999,_56,_111825,_0500432,RM100000002O1F6,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Ultrasonic sensor	· Ultrasonic sensor detection angle · Ultrasonic sensor detection angle registration	· Toyota Parking Assist-sensor System · Parking Support Brake System	(202406,999999,_56,_111825,_0501857,RM100000002KVJJ,)
Front bumper assembly*	Front television camera view adjustment	Panoramic View Monitor System	(202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
Replacement or removal and installation of 2 or more parts: · Front television camera assembly, Radiator grille sub-assembly or Front bumper assembly · Rear television camera assembly · Side television camera assembly LH or Outer rear view mirror assembly LH · Side television camera assembly RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	(202409,999999,_56,_111825,_0500432,RM100000002O1F6,)

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202303,999999,_59,_111849,_0524334,RM100000002AYNC,

for SFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for SFTM Made)>REMOVAL202303,999999,_59,_111849,_0500095,RM100000002AYNE,

Hide Display 89341L 2.REMOVE FRONT CENTER ULTRASONIC SENSOR

HINT:: The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

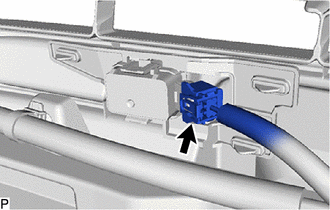

Disconnect the connector.

0,0 0,0 false

Remove in this Direction

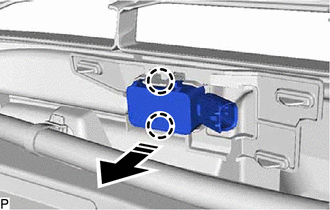

Disengage the 2 claws and remove the front center ultrasonic sensor as shown in the illustration.

Hide Display 89341K 3.REMOVE FRONT CORNER ULTRASONIC SENSOR

HINT:: The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

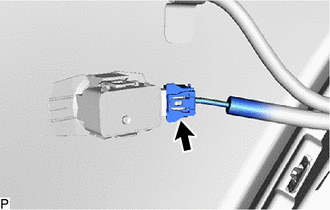

Disconnect the connector.

0,0 0,0 false

Remove in this Direction

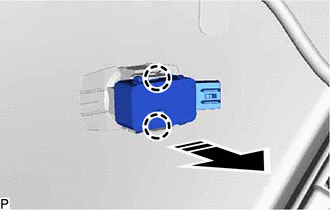

Disengage the 2 claws and remove the front corner ultrasonic sensor as shown in the illustration.

Hide Display 89C48D 4.REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER

HINT:: ·

Perform this procedure only when replacement of the front corner ultrasonic sensor retainer is necessary.

·

When removing the front corner ultrasonic sensor retainer, heat the front bumper assembly and front corner ultrasonic sensor retainer using a heat light.

·

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

Heat the front bumper assembly and front corner ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

Heating Temperature:

Item	Temperature
Front Bumper Assembly	40 to 60°C (104 to 140°F)
Front Corner Ultrasonic Sensor Retainer	40 to 60°C (104 to 140°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

Do not touch the heat light and heated parts.

Touching the heat light may result in burns.

Touching heated parts for a long time may result in burns.

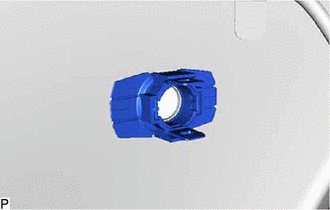

Remove the front corner ultrasonic sensor retainer.

Hide Display 89305 5.REMOVE ULTRASONIC SENSOR CUSHION SET

HINT:: Only perform this procedure when removing and installing the ultrasonic sensor cushion set.

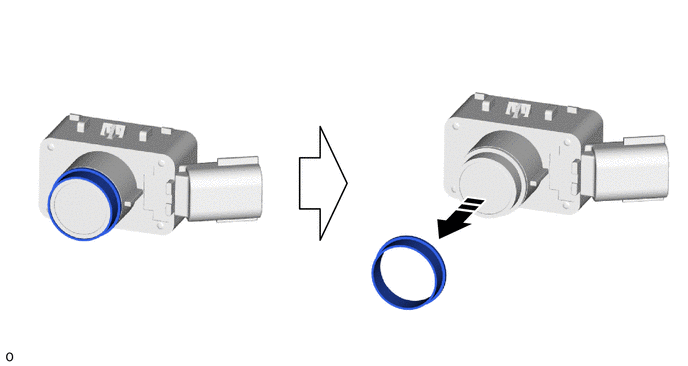

Remove the ultrasonic sensor cushion set as shown in the illustration.

0,0 0,0 false

Remove in this Direction
