EXTERIOR PANELS / TRIM  FRONT BUMPER(for GTMC Made)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front bumper assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedures Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

·

Front bumper assembly*

·

Front television camera assembly*

·

Radiator grille sub-assembly*


Front television camera view adjustment Panoramic View Monitor System (Click here)
Replacement or removal and installation of 2 or more parts:
·

Front television camera assembly, radiator grille sub-assembly or front bumper assembly

·

Rear television camera assembly

·

Side television camera assembly LH or outer rear view mirror assembly LH

·

Side television camera assembly RH or outer rear view mirror assembly RH


Television camera view adjustment Panoramic View Monitor System (Click here)

HINT:

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

for Target Adjustment (Triangle Target):

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR>TARGET ADJUSTMENT(TRIANGLE TARGET)

for Target Adjustment (Flat Surface Target):

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR>TARGET ADJUSTMENT(FLAT SURFACE TARGET)

for Driving Adjustment:

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR>DRIVING ADJUSTMENT


PROCEDURE

Hide 1.REMOVE FRONT BUMPER ASSEMBLY

a.
B645220C01
0,0 0,0 false
V100155

Protective Tape

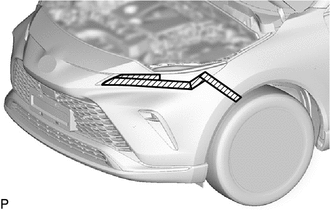

Apply protective tape around the front bumper assembly.

HINT:

Use the same procedure for the RH side and LH side.



b.

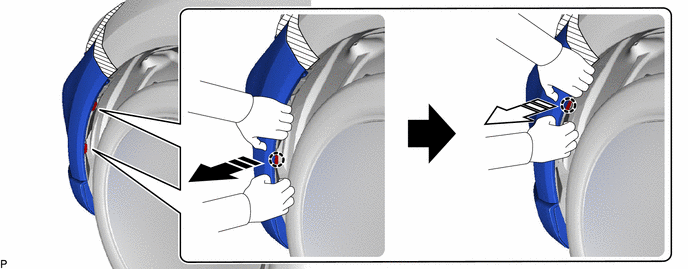

As shown in the illustration, pull the front bumper assembly horizontally to release each claw and disengage the front fender liner retainer.

B718849C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


HINT:

Use the same procedure for the RH side and LH side.



c.
B645222

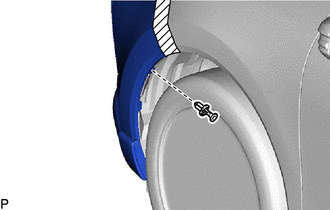

Remove the clip.

HINT:

Use the same procedure for the RH side and LH side.



d.
B645223

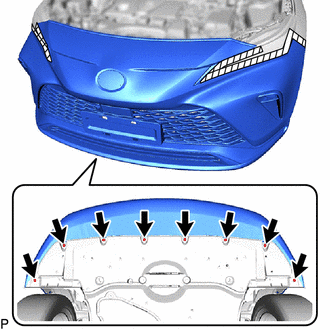

Remove the 8 screws.


e.
B645224C01
0,0 0,0 false
V113147

Remove in this Direction

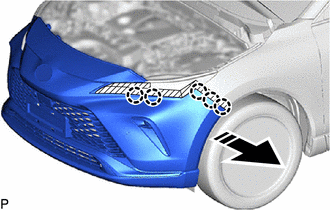

Disengage the 5 claws as shown in the illustration.

HINT:

Use the same procedure for the LH side and RH side.



f.
B645225C01
0,0 0,0 false
V113147

Remove in this Direction

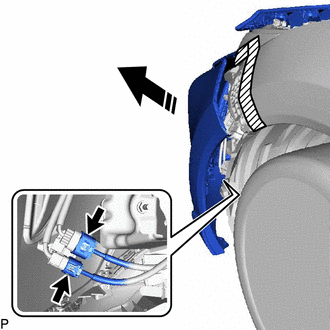

Pull back the side of the front bumper assembly and disconnect the 2 connectors.

NOTICE:

Do not apply excessive force when pulling back the front bumper assembly.



g.
B645226

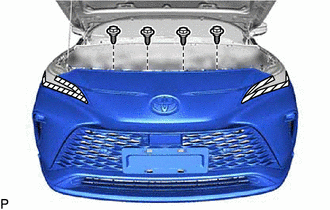

Remove the 4 bolts.


h.
B645227C01
0,0 0,0 false
V113147

Remove in this Direction

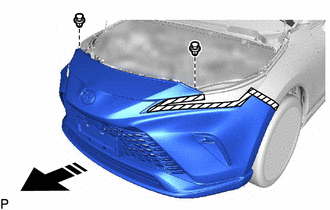

Remove the 2 clips and front bumper assembly as shown in the illustration.
