RM38N0EC _52 Drivetrain _119335 GF1A TRANSFER / 4WD / AWD _0524094 TRANSFER CASE FRONT OIL SEAL(for RH Side) A

GF1A TRANSFER / 4WD / AWD  TRANSFER CASE FRONT OIL SEAL(for RH Side)  REPLACEMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transfer case oil seal RH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

*3: If the vehicle height has changed due to suspension or tire replacement

Replacement of CVT fluid Air bleed the oil pump with motor assembly Stop and Start System (Click here)
ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly (Click here)
Tires
·

Initialization*1*2

·

Tire Position Identification*1*2


Tire Pressure Warning System Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below
(Click here)
Wheel alignment adjustment
·

Perform reset memory

·

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)
Suspension, tires, etc.*3 Parking assist ECU initialization Panoramic View Monitor System (Click here)
Rear television camera assembly optical axis (Back camera position setting) Parking Assist Monitor System (Click here)

PROCEDURE

Hide 36113D 3.REMOVE TRANSFER CASE OIL SEAL RH

a.

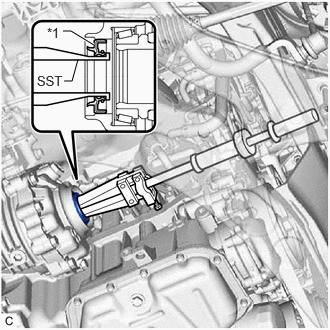

C433732C01
0.813,0.615 0.75,0.844 0.75,0.844 0.667,0.844 false 0.979,0.469 0.74,0.323 0.74,0.323 0.656,0.323 true 0.385,0.76 1.74,1.167 1.354,0.406 10 false SST 0.49,0.26 0.708,0.427 0.219,0.167 10 false *1
*1 Transfer Case Oil Seal RH


Using SST, remove the transfer case oil seal RH from the transfer assembly.

SST
09308-00010

NOTICE:

Do not scratch the press-fitting surface of the transfer case oil seal RH.



Hide 36113D 4.INSTALL TRANSFER CASE OIL SEAL RH

a.

Coat the lip of a new transfer case oil seal RH with MP grease.


b.
C433733C02
0.792,0.615 0.906,0.396 0.906,0.396 0.99,0.396 true 0.969,0.208 0.698,0.208 false 1.656,2.563 1.49,2.563 1.49,2.563 1.229,2.323 true 2.333,2.115 2.167,2.115 2.167,2.115 1.906,1.875 true 1.031,0.323 1.344,0.479 0.313,0.156 10 false *1 2.073,0.469 2.302,0.646 0.229,0.177 10 false (A) 2.385,2.021 2.729,2.219 0.344,0.198 10 true SST 1.01,0.135 1.354,0.333 0.344,0.198 10 true SST 1.688,2.469 2.031,2.667 0.344,0.198 10 true SST
*1 Transfer Case Oil Seal RH


Using SST and a hammer, tap in the transfer case oil seal RH as shown in the illustration.

SST
09631-32020
09950-60021  (09951-00680)
09950-70010  (09951-07360)

Drive in Depth (A):

7.5 to 8.5 mm (0.296 to 0.334 in.)


NOTICE:
·

Tap the transfer case oil seal RH uniformly so that the transfer case oil seal RH is straight.

·

Do not tap the transfer case oil seal RH in too far.
