43420G
1.INSTALL FRONT DRIVE SHAFT HOLE SNAP RING LH
Install a new front drive shaft hole snap ring LH.
Face the end gap of the front drive shaft hole snap ring LH downward.
43420
2.INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
Coat the snap ring of the front drive inboard joint assembly with MP grease.
for HV Model:
Coat the splines of the front drive inboard joint assembly with Toyota genuine ATF WS.
for Gasoline Model:
Coat the splines of the front drive inboard joint assembly with Toyota genuine CVT fluid FE.

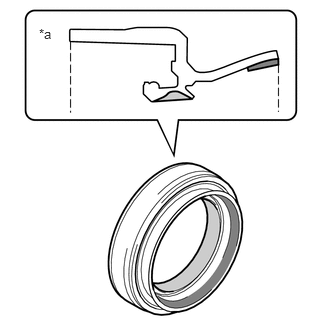

| *a | Cross Section of Front Drive Shaft Oil Seal LH |
|
MP Grease |
|
Toyota Genuine Oil Seal Side Lip Grease |
Coat the lip of the front drive shaft oil seal LH with MP grease and Toyota genuine oil seal side lip grease as shown in the illustration.
Apply a light coat of MP grease and Toyota genuine oil seal side lip grease to the entire circumference of the front drive shaft oil seal LH.

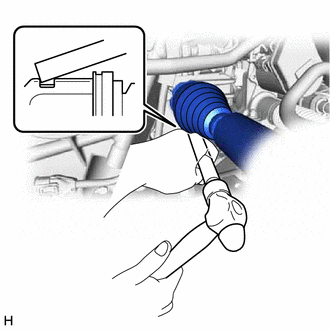

Align the inboard joint splines, and using a brass bar and a hammer, install the front drive shaft assembly LH.
Face the end gap of the front drive shaft hole snap ring LH downward.
Do not damage the front drive shaft oil seal LH.
Do not damage the front axle inboard joint boot.
Do not damage the front drive shaft dust cover LH.
Make sure to center the front drive shaft assembly LH during installation to prevent damage to the front drive shaft hole snap ring LH.
Confirm whether the drive shaft is securely driven in by checking the reaction force and sound.
43410
3.INSTALL FRONT DRIVE SHAFT ASSEMBLY RH (for Gasoline Model 2WD, HV Model)
for HV Model:
Coat the splines of the front drive inboard joint assembly with Toyota genuine ATF WS.
for Gasoline Model 2WD:
Coat the splines of the front drive inboard joint assembly with Toyota genuine CVT fluid FE.
| *a | Cross Section of Front Drive Shaft Oil Seal RH |
|
MP Grease |
|
Toyota Genuine Oil Seal Side Lip Grease |
Coat the lip of the front drive shaft oil seal RH with MP grease and Toyota genuine oil seal side lip grease as shown in the illustration.
Apply a light coat of MP grease and Toyota genuine oil seal side lip grease to the entire circumference of the front drive shaft oil seal RH.
Align the inboard joint splines, and securely insert the front drive shaft assembly RH.
Do not damage the front drive shaft oil seal RH.
Do not damage the front axle inboard joint boot.
Do not damage the front drive shaft dust cover RH.
Install the front drive shaft assembly RH with the 2 bolts.
43410
4.INSTALL FRONT DRIVE SHAFT ASSEMBLY RH (for Gasoline Model AWD)
Coat the splines of the front drive inboard joint assembly with Toyota genuine CVT fluid FE.
| *a | Cross Section of Transfer Case Oil Seal RH |
|
MP Grease |
|
Toyota Genuine Oil Seal Side Lip Grease |
Coat the lip of the transfer case oil seal RH with MP grease and Toyota genuine oil seal side lip grease as shown in the illustration.
Apply a light coat of MP grease and Toyota genuine oil seal side lip grease to the entire circumference of the transfer case oil seal RH.
Install a new drive shaft bearing bracket hole snap ring to the front drive shaft assembly RH.
Align the inboard joint splines, and securely insert the front drive shaft assembly RH.
Do not damage the transfer case oil seal RH.
Do not damage the front axle inboard joint boot.
When inserting the front drive shaft assembly RH, keep it level.
Install the drive shaft bearing bracket hole snap ring and a new No. 1 drive shaft bearing bracket setting bolt.
5.CONNECT FRONT AXLE ASSEMBLY
|
Toyota Body Grease W |

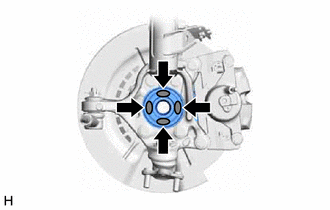

Apply 0.1 to 0.3 g (0.00353 to 0.0105 oz) of Toyota Body Grease W to each of the 4 areas shown in the illustration.
| *a | Matchmark |

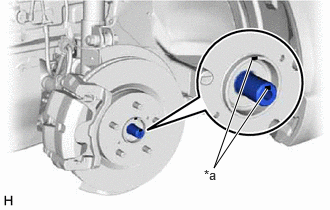

Align the matchmarks and install the front drive shaft assembly to the front axle assembly.
Do not damage the front disc brake dust cover.
Do not damage the front axle outboard joint boot.
Check that there is no foreign matter on the deflector or contact surfaces.
Do not push the front axle assembly towards the outside of the vehicle any further than necessary.
Do not damage the deflector.
|
Hook |

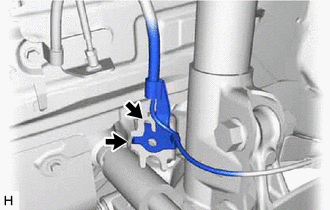

Engage the 2 hooks to install the front speed sensor clamp bracket.
Do not twist the front speed sensor when installing it.
Install the front speed sensor and front flexible hose to the front shock absorber assembly with the bolt.
Do not twist the front flexible hose when installing it.
Install the front speed sensor to the steering knuckle with the bolt.
Prevent foreign matter from attaching to the front speed sensor tip.
Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
Do not twist the front speed sensor when installing it.
Engage the clamp.
Do not twist the front speed sensor when installing it.
48069
6.CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY
48810
7.INSTALL FRONT STABILIZER LINK ASSEMBLY
43502H
8.INSTALL FRONT AXLE SHAFT NUT
Clean the threaded parts on the front drive shaft assembly and a new front axle shaft nut using non-residue solvent.
Make sure to perform this work even when using a new front drive shaft assembly.
Keep the threaded parts free of oil and foreign matter.
Using a 30 mm deep socket wrench, install the front axle shaft nut.
Depress the brake pedal to prevent the drive shaft from rotating.

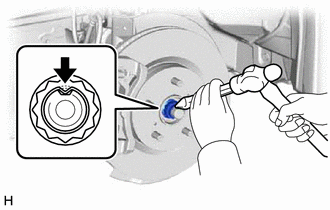

Using a chisel and hammer, stake the front axle shaft nut.
9.ADD HYBRID TRANSAXLE FLUID (for HV Model)
10.INSPECT HYBRID TRANSAXLE FLUID (for HV Model)
11.INSPECT FOR HYBRID TRANSAXLE FLUID LEAK (for HV Model)
12.ADJUST CONTINUOUSLY VARIABLE TRANSAXLE FLUID (for Gasoline Model)
13.INSPECT CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK (for Gasoline Model)
14.ADD TRANSFER OIL (for Gasoline Model AWD)
15.INSPECT FOR TRANSFER OIL LEAK (for Gasoline Model AWD)
53737B
16.INSTALL FRONT FENDER APRON SEAL LH
53736
17.INSTALL FRONT FENDER APRON SEAL RH
51420
18.INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
for M20C-FKS, M20D-FKS: Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (LUBRICATION)>OIL PAN AND OIL LEVEL SENSOR>INSTALLATION202111,202303,_51,_111787,_0503327,RM100000001ZE5N_01_0041,202303,999999,_51,_111787,_0503348,RM100000002B2JV_01_0037,
for A25D-FXS, A25F-FXS: Click hereEngine / Hybrid System>A25D-FXS, A25F-FXS (LUBRICATION)>OIL PAN AND OIL LEVEL SENSOR>INSTALLATION202111,999999,_51,_111799,_0503333,RM100000001ZE66_01_0037,
19.INSTALL FRONT WHEELS
20.CHECK FOR SPEED SENSOR SIGNAL
for M20C-FKS, M20D-FKS: Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model)>SIGNAL CHECK202111,999999,_54,_111814,_0503031,RM100000001ZCWS,
for A25D-FXS, A25F-FXS: Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>SIGNAL CHECK202111,999999,_54,_111814,_0500671,RM100000001Z2YR,
21.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
