RM38N0EC _56 Audio / Visual / Telematics _111823 NAVIGATION / MULTI INFO DISPLAY _0502893 NAVIGATION SYSTEM J

NAVIGATION / MULTI INFO DISPLAY NAVIGATION SYSTEM Microphone Circuit

DESCRIPTION

The navigation receiver assembly, map light assembly, microphone assembly LH and microphone assembly RH are connected to each other using the microphone connection detection signal lines.

Using this circuit, the navigation receiver assembly sends power to the map light assembly, microphone assembly LH and microphone assembly RH, and the map light assembly, microphone assembly LH and microphone assembly RH as sends microphone signals to the navigation receiver assembly.

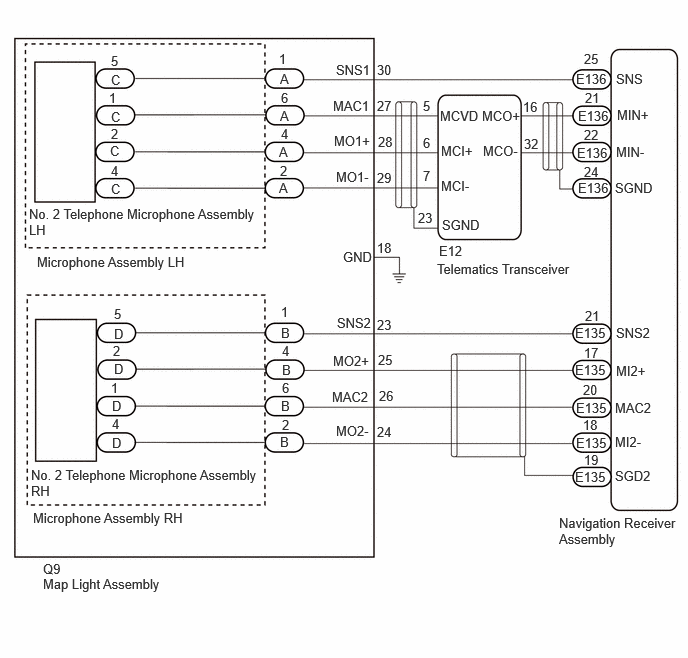

WIRING DIAGRAM

0.302,2.146 2.698,2.677 2.396,0.531 10 false No. 2 Telephone Microphone Assembly LH 0.323,4.865 2.719,5.406 2.396,0.542 10 false No. 2 Telephone Microphone Assembly RH 0.448,6 1.813,6.385 1.365,0.385 10 false Map Light Assembly 5.823,5.365 7.052,5.885 1.229,0.521 10 false Navigation Receiver Assembly 2.917,0.74 3.208,1.042 0.292,0.302 10 false A 2.917,1.125 3.208,1.427 0.292,0.302 10 false A 2.906,1.5 3.198,1.802 0.292,0.302 10 false A 2.906,1.875 3.198,2.177 0.292,0.302 10 false A 2.927,3.385 3.219,3.688 0.292,0.302 10 false B 2.938,3.771 3.229,4.073 0.292,0.302 10 false B 2.927,4.146 3.219,4.448 0.292,0.302 10 false B 2.917,4.521 3.208,4.823 0.292,0.302 10 false B 0.448,5.844 0.74,6.146 0.292,0.302 10 false Q9 6,0.74 6.385,1.021 0.385,0.281 10 false E136 6.01,1.51 6.5,1.781 0.49,0.271 10 false E136 6.021,1.125 6.406,1.406 0.385,0.281 10 false E136 6.021,1.875 6.479,2.146 0.458,0.271 10 false E136 6,4.531 6.458,4.802 0.458,0.271 10 false E135 5.99,3.771 6.448,4.042 0.458,0.271 10 false E135 6,4.167 6.458,4.438 0.458,0.271 10 false E135 5.99,3.385 6.448,3.656 0.458,0.271 10 false E135 5.99,4.885 6.448,5.156 0.458,0.271 10 false E135 6.417,0.74 6.802,1.021 0.385,0.281 10 false SNS 3.927,0.646 4.313,0.927 0.385,0.281 10 false 30 6.417,1.5 6.896,1.792 0.479,0.292 10 false MIN- 6.427,1.115 6.906,1.406 0.479,0.292 10 false MIN+ 6.406,4.521 6.885,4.813 0.479,0.292 10 false MI2- 6.083,1.323 6.469,1.604 0.385,0.281 10 false 22 6.094,0.938 6.479,1.219 0.385,0.281 10 false 21 6.083,1.708 6.469,1.99 0.385,0.281 10 false 24 6.417,3.781 6.896,4.073 0.479,0.292 10 false MI2+ 6.406,4.167 6.885,4.458 0.479,0.292 10 false MAC2 6.417,3.385 6.896,3.677 0.479,0.292 10 false SNS2 6.406,4.875 6.885,5.167 0.479,0.292 10 false SGD2 3.5,0.646 3.938,0.906 0.438,0.26 10 false SNS1 3.5,1.76 3.99,2.052 0.49,0.292 10 false MO1- 3.479,1.385 3.958,1.677 0.479,0.292 10 false MO1+ 6.406,1.875 6.885,2.167 0.479,0.292 10 false SGND 3.51,3.281 3.99,3.573 0.479,0.292 10 false SNS2 3.458,4.052 3.938,4.344 0.479,0.292 10 false MAC2 3.469,3.677 3.948,3.969 0.479,0.292 10 false MO2+ 3.5,4.406 3.979,4.698 0.479,0.292 10 false MO2- 3.927,1.021 4.313,1.302 0.385,0.281 10 false 27 3.927,1.771 4.313,2.052 0.385,0.281 10 false 29 3.938,1.396 4.323,1.677 0.385,0.281 10 false 28 3.927,4.417 4.313,4.698 0.385,0.281 10 false 24 3.948,4.042 4.333,4.323 0.385,0.281 10 false 26 3.938,3.667 4.323,3.948 0.385,0.281 10 false 25 3.927,3.302 4.313,3.583 0.385,0.281 10 false 23 3.927,2.5 4.313,2.781 0.385,0.281 10 false 18 3.573,2.594 4.052,2.885 0.479,0.292 10 false GND 6.083,0.531 6.469,0.813 0.385,0.281 10 false 25 6.073,4.344 6.458,4.625 0.385,0.281 10 false 18 6.083,3.594 6.469,3.875 0.385,0.281 10 false 17 6.073,3.979 6.458,4.26 0.385,0.281 10 false 20 6.094,3.208 6.479,3.49 0.385,0.281 10 false 21 6.083,4.708 6.469,4.99 0.385,0.281 10 false 19 2.906,0.531 3.292,0.813 0.385,0.281 10 false 1 2.927,0.938 3.313,1.219 0.385,0.281 10 false 6 2.927,1.313 3.313,1.594 0.385,0.281 10 false 4 2.917,1.698 3.302,1.979 0.385,0.281 10 false 2 2.927,3.167 3.313,3.448 0.385,0.281 10 false 1 2.938,3.958 3.323,4.24 0.385,0.281 10 false 6 2.938,3.573 3.323,3.854 0.385,0.281 10 false 4 2.938,4.344 3.323,4.625 0.385,0.281 10 false 2 1.167,4.531 1.458,4.833 0.292,0.302 10 false D 1.167,4.146 1.458,4.448 0.292,0.302 10 false D 1.188,3.76 1.479,4.063 0.292,0.302 10 false D 1.188,3.396 1.479,3.698 0.292,0.302 10 false D 1.156,1.885 1.448,2.188 0.292,0.302 10 false C 1.146,1.49 1.438,1.792 0.292,0.302 10 false C 1.156,1.135 1.448,1.438 0.292,0.302 10 false C 1.156,0.75 1.469,1.052 0.313,0.302 10 false C 0.385,2.646 2.885,3.167 2.5,0.521 10 false Microphone Assembly LH 0.344,5.313 2.885,5.844 2.542,0.531 10 false Microphone Assembly RH 1.135,0.938 1.521,1.219 0.385,0.281 10 false 1 1.156,0.552 1.542,0.833 0.385,0.281 10 false 5 1.156,1.313 1.542,1.594 0.385,0.281 10 false 2 1.156,1.698 1.542,1.979 0.385,0.281 10 false 4 1.188,3.188 1.573,3.469 0.385,0.281 10 false 5 1.177,3.573 1.563,3.854 0.385,0.281 10 false 2 1.156,3.958 1.542,4.24 0.385,0.281 10 false 1 1.167,4.333 1.552,4.615 0.385,0.281 10 false 4 3.469,1.021 3.948,1.313 0.479,0.292 10 false MAC1 4.573,2.531 5.031,2.802 0.458,0.271 10 false E12 4.552,2.719 6.063,3.281 1.51,0.563 10 false Telematics Transceiver 5.021,1.125 5.5,1.417 0.479,0.292 10 false MCO+ 5.031,1.49 5.51,1.781 0.479,0.292 10 false MCO- 4.583,1.125 5.063,1.417 0.479,0.292 10 false MCVD 4.594,1.49 5.073,1.781 0.479,0.292 10 false MCI+ 4.594,1.854 5.073,2.146 0.479,0.292 10 false MCI- 4.604,2.26 5.083,2.552 0.479,0.292 10 false SGND 4.406,1.021 4.792,1.302 0.385,0.281 10 false 5 4.406,1.406 4.792,1.688 0.385,0.281 10 false 6 4.406,1.75 4.792,2.031 0.385,0.281 10 false 7 4.354,2.188 4.74,2.469 0.385,0.281 10 false 23 5.448,1.031 5.833,1.313 0.385,0.281 10 false 16 5.458,1.417 5.844,1.698 0.385,0.281 10 false 32

CAUTION / NOTICE / HINT

NOTICE:: Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.; Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION202409,999999,_56,_111823,_0502893,RM100000002OBSO,

PROCEDURE

1.CHECK MICROPHONE

1.24,0.479 1.396,0.479 1.396,0.479 1.729,1.24 true 1.26,2.729 1.417,2.729 1.417,2.729 1.75,1.573 true 1.021,0.406 1.333,0.604 0.313,0.198 10 false *a 1.073,2.656 1.385,2.854 0.313,0.198 10 false *b

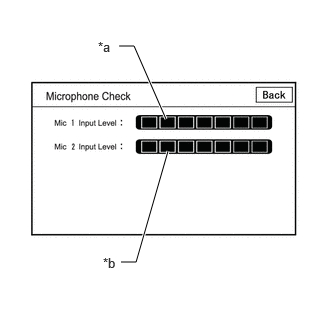

*a	Mic 1 Input Level
*b	Mic 2 Input Level

Enter diagnostic mode.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DIAGNOSIS SYSTEM202409,999999,_56,_111823,_0502893,RM100000002OPVB,

Select "Function Check/Setting" from the "Service Menu" screen.

Select "Microphone Check" from the "Function Check/Setting I" screen.

Speak into each microphone assembly and check the microphone input level gauge display.

OK:: The microphone input levels of the gauge change in accordance with the voice.

Result:

Result	Proceed to
Microphone input levels change for microphone 1 and 2	A
Microphone input level does not change for microphone 1	B
Microphone input level does not change for microphone 2	C

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL202409,999999,_56,_111823,_0500514,RM100000002OV73,

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER, MAP LIGHT ASSEMBLY)

10.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY)

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER, MAP LIGHT ASSEMBLY)

Disconnect the E136 navigation receiver assembly connector.

Disconnect the E12 telematics transceiver connector.

Disconnect the Q9 map light assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E136,Q9,E12)Location & Routingewd_type=routing;type=c,c,c;code=E136,Q9,E12 Click Connector(E136)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assemblyewd_type=component;type=c;code=E136;pinno=25,21,22,24 Click Connector(Q9)Body>Roof Wire>Map Light Assemblyewd_type=component;type=c;code=Q9;pinno=30,27,28,29 Click Connector(E12)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Telephone Transceiverewd_type=component;type=c;code=E12;pinno=16,32,5,6,7,23
E136-25 (SNS) - Q9-30 (SNS1)	Always	Below 1 Ω
E136-21 (MIN+) - E12-16 (MCO+)	Always	Below 1 Ω
E136-22 (MIN-) - E12-32 (MCO-)	Always	Below 1 Ω
E12-5 (MCVD) - Q9-27 (MAC1)	Always	Below 1 Ω
E12-6 (MCI+) - Q9-28 (MO1+)	Always	Below 1 Ω
E12-7 (MCI-) - Q9-29 (MO1-)	Always	Below 1 Ω
E136-25 (SNS) or Q9-30 (SNS1) - Body ground	Always	10 kΩ or higher
E136-21 (MIN+) or E12-16 (MCO+) - Body ground	Always	10 kΩ or higher
E136-22 (MIN-) or E12-32 (MCO-) - Body ground	Always	10 kΩ or higher
E12-5 (MCVD) or Q9-27 (MAC1) - Body ground	Always	10 kΩ or higher
E12-6 (MCI+) or Q9-28 (MO1+) - Body ground	Always	10 kΩ or higher
E12-7 (MCI-) or Q9-29 (MO1-) - Body ground	Always	10 kΩ or higher
E12-23 (SGND) - Body ground	Always	10 kΩ or higher
E136-24 (SGND) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

3.INSPECT TELEMATICS TRANSCEIVER

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT TELEMATICS TRANSCEIVER

Reconnect the E12 telematics transceiver connector.

Reconnect the Q9 map light assembly connector.

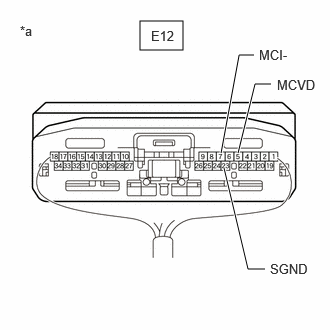

1.458,0.219 1.906,0.521 0.448,0.302 2.333,1.75 2.583,2.802 2.583,2.802 2.76,2.802 true 2.479,1.594 2.656,0.875 2.656,0.875 2.823,0.875 true 2.302,1.594 2.49,0.573 2.49,0.573 2.646,0.573 true 2.885,0.802 3.406,1.281 0.521,0.479 10 false MCVD 2.698,0.49 3.344,0.74 0.646,0.25 10 false MCI- 0.208,0.24 0.458,0.427 0.25,0.188 10 false *a 1.573,0.292 2.208,0.656 0.635,0.365 10 false E12 2.813,2.719 3.292,3.094 0.479,0.375 10 false SGND

*a	Component with harness connected (Telematics Transceiver)

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E12)Location & Routingewd_type=routing;type=c;code=E12 Click Connector(E12)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Telephone Transceiverewd_type=component;type=c;code=E12;pinno=5
E12-5 (MCVD) - Body ground	Ignition switch ACC	7.5 to 8.5 V

Tester Connection

Condition

Specified Condition

Click Location & Routing(E12)Location & Routingewd_type=routing;type=c;code=E12

Click Connector(E12)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Telephone Transceiverewd_type=component;type=c;code=E12;pinno=5

E12-5 (MCVD) - Body ground

Ignition switch ACC

7.5 to 8.5 V

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E12)Location & Routingewd_type=routing;type=c;code=E12 Click Connector(E12)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Telephone Transceiverewd_type=component;type=c;code=E12;pinno=23,7
E12-23 (SGND) - Body ground	Always	Below 1 Ω
E12-7 (MCI-) - Body ground	Always	Below 1 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(E12)Location & Routingewd_type=routing;type=c;code=E12

Click Connector(E12)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Telephone Transceiverewd_type=component;type=c;code=E12;pinno=23,7

E12-23 (SGND) - Body ground

Always

Below 1 Ω

E12-7 (MCI-) - Body ground

Always

Below 1 Ω

Result:

Proceed to
OK
NG

4.INSPECT MAP LIGHT ASSEMBLY

REPLACE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL202203,999999,_56,_111824,_0500296,RM1000000022MZX,

4.INSPECT MAP LIGHT ASSEMBLY

Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2,

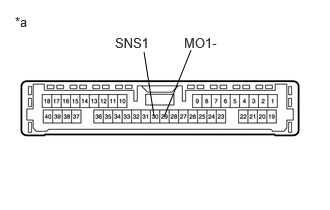

1.604,1.208 1.5,0.542 false 1.708,1.219 1.99,0.521 false 0.156,0.146 0.469,0.344 0.313,0.198 10 false *a 1.917,0.365 2.344,0.573 0.427,0.208 10 false MO1- 1.198,0.365 1.625,0.583 0.427,0.219 10 false SNS1

*a	Component without harness connected (Map Light Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
30 (SNS1) - 29 (MO1-)	Always	Below 1 Ω

Result:

Proceed to
OK
NG

5.INSPECT MAP LIGHT ASSEMBLY (OUTPUT TO NAVIGATION RECEIVER ASSEMBLY)

8.INSPECT MAP LIGHT ASSEMBLY

5.INSPECT MAP LIGHT ASSEMBLY (OUTPUT TO NAVIGATION RECEIVER ASSEMBLY)

Connect the E136 navigation receiver assembly connector.

Connect the Q9 map light assembly connector.

Turn the ignition switch to ACC.

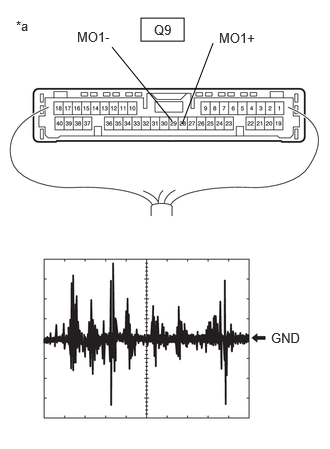

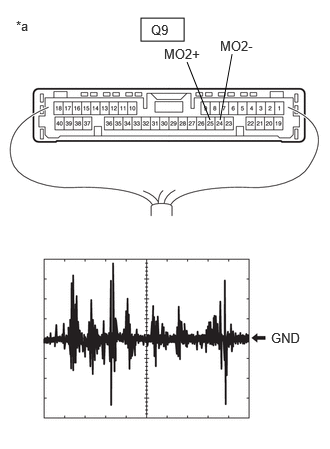

1.469,0.188 1.917,0.427 0.448,0.24 1.167,0.49 1.792,1.26 false 2.219,0.448 1.896,1.292 false 0.167,0.188 0.479,0.385 0.313,0.198 10 false *a 1.604,0.229 1.917,0.427 0.313,0.198 10 false Q9 0.802,0.302 1.313,0.51 0.51,0.208 10 false MO1- 2.281,0.313 2.792,0.521 0.51,0.208 10 false MO1+ 2.823,3.438 3.333,3.646 0.51,0.208 10 false GND

*a	Component with harness connected (Map Light Assembly)

Connect an oscilloscope to terminals 28 (MO1+) and 29 (MO1-) of the Q9 map light assembly connector.

Check the signal waveform according to the condition(s) in the table below.

Item	Condition
Measurement terminal	Q9-28 (MO1+) - Q9-29 (MO1-)
Tool setting	50 mV/DIV., 500 ms/DIV.
Vehicle condition	1. Turn the ignition switch to ACC. 2. Sound is input to the map light assembly when the user is closer than 125 mm from the map light assembly sound holes.

OK:: The waveform is similar to that shown in the illustration.

HINT:: The oscilloscope waveform shown in the illustration is an example for reference only.

Result:

Proceed to
OK
NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PROBLEM SYMPTOMS TABLE202409,999999,_56,_111823,_0502893,RM100000002OPV9,

6.INSPECT MAP LIGHT ASSEMBLY

Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2,

Disconnect the A microphone assembly LH connector.

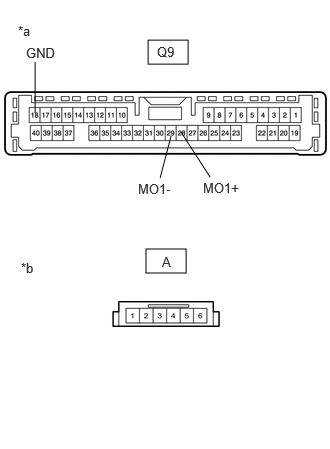

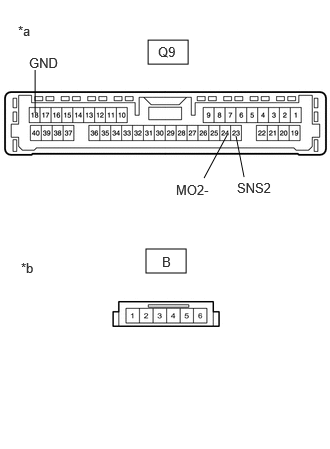

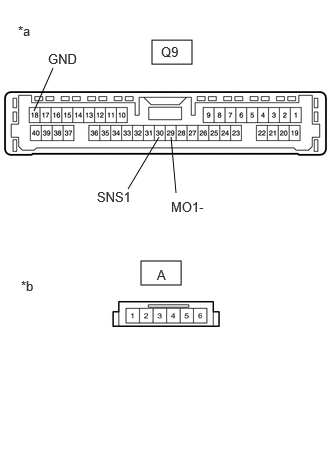

1.521,2.594 1.938,2.844 0.417,0.25 1.542,0.417 1.958,0.667 0.417,0.25 1.667,1.854 1.781,1.417 false 1.885,1.375 2.188,1.844 false 0.365,1.177 0.365,0.646 false 2.115,1.875 2.625,2.146 0.51,0.271 10 false MO1+ 0.188,0.24 0.5,0.438 0.313,0.198 10 false *a 0.219,2.708 0.531,2.906 0.313,0.198 10 false *b 1.635,0.458 2.115,0.677 0.479,0.219 10 false Q9 1.688,2.646 2.167,2.865 0.479,0.219 10 false A 1.438,1.885 1.979,2.104 0.542,0.219 10 false MO1- 0.271,0.469 0.813,0.688 0.542,0.219 10 false GND

*a	Component without harness connected (Map Light Assembly (Roof Wire Side))
*b	Component without harness connected (Map Light Assembly (Microphone Assembly LH Side))

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(Q9)Location & Routingewd_type=routing;type=c;code=Q9 Click Connector(Q9)Body>Roof Wire>Map Light Assemblyewd_type=component;type=c;code=Q9;pinno=28,29,18
Q9-28 (MO1+) - A-4	Always	Below 1 Ω
Q9-29 (MO1-) - A-2	Always	Below 1 Ω
Q9-28 (MO1+) or A-4 - Q9-18 (GND)	Always	10 kΩ or higher
Q9-29 (MO1-) or A-2 - Q9-18 (GND)	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

7.INSPECT MICROPHONE ASSEMBLY LH

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2,

7.INSPECT MICROPHONE ASSEMBLY LH

Remove the microphone assembly LH.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

Disconnect the A microphone assembly LH connector.

Disconnect the C no. 2 telephone microphone assembly LH connector.

1.458,0.146 1.906,0.458 0.448,0.313 1.49,1.844 1.938,2.156 0.448,0.313 0.375,0.823 0.688,1.021 0.313,0.198 10 false *a 0.375,2.531 0.688,2.729 0.313,0.198 10 false *b 1.646,0.219 1.958,0.417 0.313,0.198 10 false C 1.688,1.906 2,2.104 0.313,0.198 10 false A

*a	Component without harness connected (No. 2 Telephone Microphone Assembly Side)
*b	Component without harness connected (Map Light Assembly Side)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A-2 - C-4	Always	Below 1 Ω
A-4 - C-2	Always	Below 1 Ω
A-2 - C-2	Always	10 kΩ or higher
A-4 - C-4	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE NO. 2 TELEPHONE MICROPHONE ASSEMBLY LH

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

REPLACE MICROPHONE ASSEMBLY LH

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

8.INSPECT MAP LIGHT ASSEMBLY

Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2,

Disconnect the A microphone assembly LH connector.

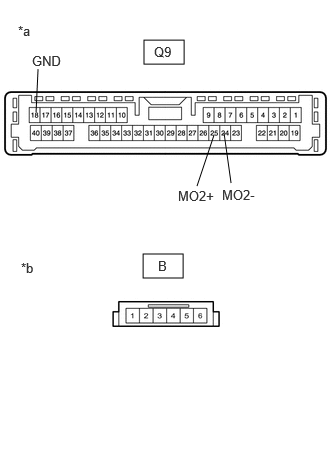

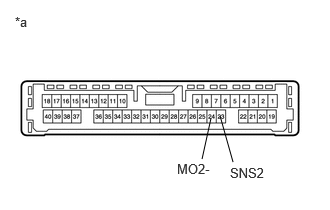

1.469,2.719 1.885,2.969 0.417,0.25 1.583,0.417 2,0.667 0.417,0.25 1.833,2.01 1.781,1.427 false 0.354,1.156 0.552,0.708 false 1.333,1.969 1.656,1.427 false 0.188,0.24 0.5,0.438 0.313,0.198 10 false *a 0.219,2.896 0.531,3.094 0.313,0.198 10 false *b 1.677,0.458 2.156,0.677 0.479,0.219 10 false Q9 1.635,2.781 2.115,3 0.479,0.219 10 false A 1.01,1.969 1.552,2.188 0.542,0.219 10 false SNS1 0.5,0.531 1.042,0.75 0.542,0.219 10 false GND 1.781,2.073 2.323,2.292 0.542,0.219 10 false MO1-

*a	Component without harness connected (Map Light Assembly (Roof Wire Side))
*b	Component without harness connected (Map Light Assembly (Microphone Assembly LH Side))

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(Q9)Location & Routingewd_type=routing;type=c;code=Q9 Click Connector(Q9)Body>Roof Wire>Map Light Assemblyewd_type=component;type=c;code=Q9;pinno=30,29,18
Q9-30 (SNS1) - A-1	Always	Below 1 Ω
Q9-29 (MO1-) - A-2	Always	Below 1 Ω
Q9-30 (SNS1) or A-1 - Q9-18 (GND)	Always	10 kΩ or higher
Q9-29 (MO1-) or A-2 - Q9-18 (GND)	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

9.INSPECT MICROPHONE ASSEMBLY LH

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2,

9.INSPECT MICROPHONE ASSEMBLY LH

Remove the microphone assembly LH.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

Disconnect the A microphone assembly LH connector.

Disconnect the C no. 2 telephone microphone assembly LH connector.

*a	Component without harness connected (No. 2 Telephone Microphone Assembly Side)
*b	Component without harness connected (Map Light Assembly Side)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A-1 - C-5	Always	Below 1 Ω
A-2 - C-4	Always	Below 1 Ω
A-2 - C-5	Always	10 kΩ or higher
A-1 - C-4	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE NO. 2 TELEPHONE MICROPHONE ASSEMBLY LH

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

REPLACE MICROPHONE ASSEMBLY LH

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

10.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY)

Disconnect the E135 navigation receiver assembly connector.

Disconnect the Q9 map light assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E135,Q9)Location & Routingewd_type=routing;type=c,c;code=E135,Q9 Click Connector(E135)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assemblyewd_type=component;type=c;code=E135;pinno=21,20,18,17,19 Click Connector(Q9)Body>Roof Wire>Map Light Assemblyewd_type=component;type=c;code=Q9;pinno=23,26,24,25
E135-21 (SNS2) - Q9-23 (SNS2)	Always	Below 1 Ω
E135-20 (MAC2) - Q9-26 (MAC2)	Always	Below 1 Ω
E135-18 (MI2-) - Q9-24 (MO2-)	Always	Below 1 Ω
E135-17 (MI2+) - Q9-25 (MO2+)	Always	Below 1 Ω
E135-21 (SNS2) or Q9-23 (SNS2) - Body ground	Always	10 kΩ or higher
E135-20 (MAC2) or Q9-26 (MAC2) - Body ground	Always	10 kΩ or higher
E135-18 (MI2-) or Q9-24 (MO2-) - Body ground	Always	10 kΩ or higher
E135-17 (MI2+) or Q9-25 (MO2+) - Body ground	Always	10 kΩ or higher
E135-19 (SGD2) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

11.INSPECT NAVIGATION RECEIVER ASSEMBLY

REPAIR OR REPLACE HARNESS OR CONNECTOR

11.INSPECT NAVIGATION RECEIVER ASSEMBLY

Reconnect the E135 navigation receiver assembly connector.

Reconnect the Q9 map light assembly connector.

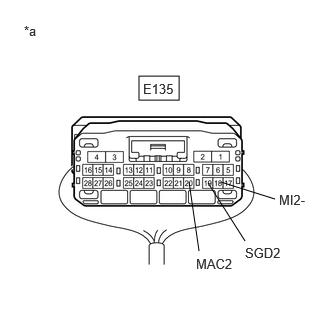

1.448,0.792 1.865,1.042 0.417,0.25 2.865,2.073 2.302,1.896 false 2.073,2.615 1.969,1.896 false 2.552,2.51 2.167,1.906 false 0.25,0.24 0.563,0.438 0.313,0.198 10 false *a 1.49,0.844 1.875,1.063 0.385,0.219 10 false E135 2.906,2 3.375,2.208 0.469,0.208 10 false MI2- 2.042,2.667 2.542,2.885 0.5,0.219 10 false MAC2 2.552,2.552 3.167,2.75 0.615,0.198 10 false SGD2

*a	Component with harness connected (Navigation Receiver Assembly)

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E135)Location & Routingewd_type=routing;type=c;code=E135 Click Connector(E135)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assemblyewd_type=component;type=c;code=E135;pinno=20
E135-20 (MAC2) - Body ground	Ignition switch ACC	7.5 to 8.5 V

Tester Connection

Condition

Specified Condition

Click Location & Routing(E135)Location & Routingewd_type=routing;type=c;code=E135

Click Connector(E135)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assemblyewd_type=component;type=c;code=E135;pinno=20

E135-20 (MAC2) - Body ground

Ignition switch ACC

7.5 to 8.5 V

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E135)Location & Routingewd_type=routing;type=c;code=E135 Click Connector(E135)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assemblyewd_type=component;type=c;code=E135;pinno=19,18
E135-19 (SGD2) - Body ground	Always	Below 1 Ω
E135-18 (MI2-) - Body ground	Always	Below 1 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(E135)Location & Routingewd_type=routing;type=c;code=E135

Click Connector(E135)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assemblyewd_type=component;type=c;code=E135;pinno=19,18

E135-19 (SGD2) - Body ground

Always

Below 1 Ω

E135-18 (MI2-) - Body ground

Always

Below 1 Ω

Result:

Proceed to
OK
NG

12.INSPECT MAP LIGHT ASSEMBLY

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL202409,999999,_56,_111823,_0500514,RM100000002OV73,

12.INSPECT MAP LIGHT ASSEMBLY

Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2,

2.104,1.656 2.198,1.229 false 2.427,1.688 2.292,1.208 false 0.156,0.146 0.469,0.344 0.313,0.198 10 false *a 1.844,1.677 2.271,1.885 0.427,0.208 10 false MO2- 2.396,1.719 2.823,1.938 0.427,0.219 10 false SNS2

*a	Component without harness connected (Map Light Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
23 (SNS2) - 24 (MO2-)	Always	Below 1 Ω

Result:

Proceed to
OK
NG

13.INSPECT MAP LIGHT ASSEMBLY (OUTPUT TO NAVIGATION RECEIVER ASSEMBLY)

16.INSPECT MAP LIGHT ASSEMBLY

13.INSPECT MAP LIGHT ASSEMBLY (OUTPUT TO NAVIGATION RECEIVER ASSEMBLY)

Connect the E135 navigation receiver assembly connector.

Connect the Q9 map light assembly connector.

Turn the ignition switch to ACC.

1.469,0.188 1.917,0.427 0.448,0.24 2.417,0.563 2.292,1.25 false 1.948,0.646 2.188,1.25 false 0.167,0.188 0.479,0.385 0.313,0.198 10 false *a 1.573,0.229 1.885,0.427 0.313,0.198 10 false Q9 2.292,0.396 2.802,0.604 0.51,0.208 10 false MO2- 1.708,0.479 2.219,0.688 0.51,0.208 10 false MO2+ 2.823,3.438 3.333,3.646 0.51,0.208 10 false GND

*a	Component with harness connected (Map Light Assembly)

Connect an oscilloscope to terminals 25 (MO2+) and 24 (MO2-) of the Q9 map light assembly connector.

Check the signal waveform according to the condition(s) in the table below.

Item	Condition
Measurement terminal	Q9-25 (MO2+) - Q9-24 (MO2-)
Tool setting	50 mV/DIV., 500 ms/DIV.
Vehicle condition	1. Turn the ignition switch to ACC. 2. Sound is input to the map light assembly when the user is closer than 125 mm from the map light assembly sound holes.

OK:: The waveform is similar to that shown in the illustration.

HINT:: The oscilloscope waveform shown in the illustration is an example for reference only.

Result:

Proceed to
OK
NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PROBLEM SYMPTOMS TABLE202409,999999,_56,_111823,_0502893,RM100000002OPV9,

14.INSPECT MAP LIGHT ASSEMBLY

Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2,

Disconnect the B microphone assembly RH connector.

1.49,2.646 1.906,2.896 0.417,0.25 1.5,0.417 1.917,0.667 0.417,0.25 2.229,1.406 2.052,1.938 false 2.406,1.906 2.333,1.385 false 0.375,1.167 0.396,0.719 false 1.854,1.958 2.365,2.229 0.51,0.271 10 false MO2+ 0.188,0.24 0.5,0.438 0.313,0.198 10 false *a 0.219,2.708 0.531,2.906 0.313,0.198 10 false *b 1.604,0.458 2.083,0.677 0.479,0.219 10 false Q9 1.646,2.688 2.125,2.906 0.479,0.219 10 false B 2.313,1.948 2.854,2.167 0.542,0.219 10 false MO2- 0.333,0.552 0.875,0.771 0.542,0.219 10 false GND

*a	Component without harness connected (Map Light Assembly (No. 1 Roof Wire Side))
*b	Component without harness connected (Map Light Assembly (Microphone Assembly RH Side))

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(Q9)Location & Routingewd_type=routing;type=c;code=Q9 Click Connector(Q9)Body>Roof Wire>Map Light Assemblyewd_type=component;type=c;code=Q9;pinno=25,24,18
Q9-25 (MO2+) - B-4	Always	Below 1 Ω
Q9-24 (MO2-) - B-2	Always	Below 1 Ω
Q9-25 (MO2+) or B-4 - Q9-18 (GND)	Always	10 kΩ or higher
Q9-24 (MO2-) or B-2 - Q9-18 (GND)	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

15.INSPECT MICROPHONE ASSEMBLY RH

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2,

15.INSPECT MICROPHONE ASSEMBLY RH

Remove the microphone assembly RH.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

Disconnect the B microphone assembly RH connector.

Disconnect the D no. 2 telephone microphone assembly RH connector.

*a	Component without harness connected (No. 2 Telephone Microphone Assembly Side)
*b	Component without harness connected (Map Light Assembly Side)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
B-2 - D-4	Always	Below 1 Ω
B-4 - D-2	Always	Below 1 Ω
B-2 - D-2	Always	10 kΩ or higher
B-4 - D-4	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE NO. 2 TELEPHONE MICROPHONE ASSEMBLY RH

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

REPLACE MICROPHONE ASSEMBLY RH

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

16.INSPECT MAP LIGHT ASSEMBLY

Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2,

Disconnect the B microphone assembly RH connector.

1.521,2.594 1.938,2.844 0.417,0.25 1.542,0.417 1.958,0.667 0.417,0.25 2.125,1.854 2.365,1.406 false 2.542,1.844 2.458,1.417 false 0.365,1.177 0.365,0.729 false 1.833,1.896 2.344,2.167 0.51,0.271 10 false MO2- 0.188,0.24 0.5,0.438 0.313,0.198 10 false *a 0.219,2.708 0.531,2.906 0.313,0.198 10 false *b 1.646,0.458 2.125,0.677 0.479,0.219 10 false Q9 1.688,2.646 2.167,2.865 0.479,0.219 10 false B 2.469,1.875 3.01,2.094 0.542,0.219 10 false SNS2 0.302,0.573 0.844,0.792 0.542,0.219 10 false GND

*a	Component without harness connected (Map Light Assembly (No. 1 Roof Wire Side))
*b	Component without harness connected (Map Light Assembly (Microphone Assembly RH Side))

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(Q9)Location & Routingewd_type=routing;type=c;code=Q9 Click Connector(Q9)Body>Roof Wire>Map Light Assemblyewd_type=component;type=c;code=Q9;pinno=23,24,18
Q9-23 (SNS2) - B-1	Always	Below 1 Ω
Q9-24 (MO2-) - B-2	Always	Below 1 Ω
Q9-23 (SNS2) or B-1 - Q9-18 (GND)	Always	10 kΩ or higher
Q9-24 (MO2-) or B-2 - Q9-18 (GND)	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

17.INSPECT MICROPHONE ASSEMBLY RH

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2,

17.INSPECT MICROPHONE ASSEMBLY RH

Remove the microphone assembly RH.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

Disconnect the B microphone assembly RH connector.

Disconnect the D no. 2 telephone microphone assembly RH connector.

*a	Component without harness connected (No. 2 Telephone Microphone Assembly Side)
*b	Component without harness connected (Map Light Assembly Side)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
B-1 - D-5	Always	Below 1 Ω
B-2 - D-4	Always	Below 1 Ω
B-2 - D-5	Always	10 kΩ or higher
B-1 - D-4	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE NO. 2 TELEPHONE MICROPHONE ASSEMBLY RH

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,

REPLACE MICROPHONE ASSEMBLY RH

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL202409,999999,_56,_111824,_0500300,RM100000002OAKP,
