RM38N0EC _56 Audio / Visual / Telematics _111824 TELEMATICS _0500300 TELEPHONE MICROPHONE ASSEMBLY A

TELEMATICS TELEPHONE MICROPHONE ASSEMBLY REMOVAL

PROCEDURE

Hide Display 1.REMOVE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2_01_0001,

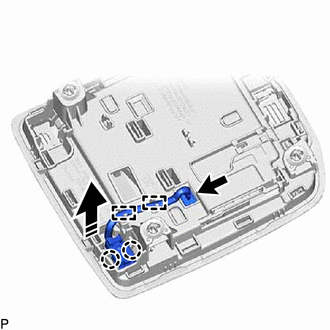

Hide Display 86730E 2.REMOVE MICROPHONE ASSEMBLY (except SFTM Made without Navigation System)

a.

E510651C01

0,0 0,0 false

V113147

Remove in this Direction

Disconnect the connector.

b.

Disengage the 2 clamps.

c.

Disengage the 2 claws and remove the microphone assembly as shown in the illustration.

Hide Display 86730D 3.REMOVE NO. 2 TELEPHONE MICROPHONE ASSEMBLY (except SFTM Made without Navigation System)

a.

E474874

Disconnect the connector to remove the No. 2 telephone microphone assembly.

Hide Display 86730A 4.REMOVE TELEPHONE MICROPHONE ASSEMBLY (for SFTM Made without Navigation System)

a.

E510651C01

0,0 0,0 false

V113147

Remove in this Direction

Disconnect the connector.

b.

Disengage the 2 clamps.

c.

Disengage the 2 claws and remove the telephone microphone assembly as shown in the illustration.
