RM38N0EC _56 Audio / Visual / Telematics _111824 TELEMATICS _0500296 TELEMATICS TRANSCEIVER A

TELEMATICS TELEMATICS TRANSCEIVER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during telematics transceiver removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Telematics transceiver	Register vehicle information	Emergency call service	(202111,999999,_56,_111824,_0502894,RM100000001ZC5J,)
Telematics transceiver	Code registration	Telematics service	See Service Bulletin for the registration method

PROCEDURE

Hide Display 55900 1.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL202111,999999,_58,_111841,_0499807,RM100000001Z0A5,

Hide Display 58925B 2.REMOVE UPPER CONSOLE BOX INSULATOR

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0127,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0127,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0127,

Hide Display 3.REMOVE UPPER CONSOLE BOX (w/o Wireless Charger)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0135,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0135,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0135,

Hide Display 4.REMOVE WIRELESS CHARGER ASSEMBLY (w/ Wireless Charger)

Click hereVehicle Interior>POWER OUTLETS (INT)>WIRELESS CHARGER ASSEMBLY>REMOVAL202203,999999,_58,_111842,_0525420,RM10000000226MH_01_0148,

Hide Display 5.REMOVE TELEMATICS TRANSCEIVER WITH BRACKET

a.

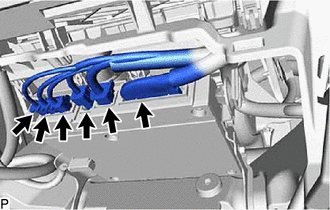

E474859

Disconnect each connector.

b.

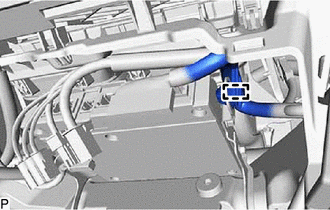

E474860

Disengage the clamp.

c.

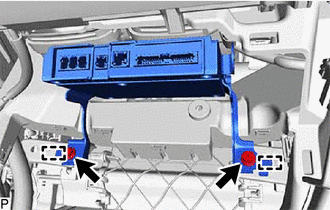

E474861

Remove the 2 bolts.

d.

Disengage the 2 guides and remove the telematics transceiver with bracket.

Hide Display 86719B 6.REMOVE NO. 2 TELEPHONE BRACKET

a.

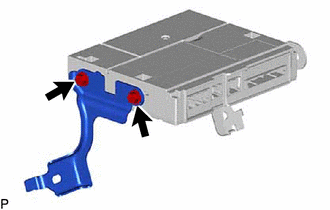

E474862

Remove the 2 screws and No. 2 telephone bracket.

Hide Display 86719A 7.REMOVE NO. 1 TELEPHONE BRACKET

a.

E474863

Remove the 2 screws and No. 1 telephone bracket.

Hide Display 8.REMOVE TELEMATICS TRANSCEIVER
