M20C-FKS, M20D-FKS COOLING WATER PUMP REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine water pump assembly (water inlet housing) removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
·
Replacement of throttle body with motor assembly ·
Cleaning the deposits from the throttle body with motor assembly ·
Gas leak from exhaust system is repaired |
Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202303,999999,_51,_111785,_0504416,RM1000000029BFF,)
|
- HINT:
-
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Items for which learning is completed by driving the vehicle Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
Items for which learning is completed by operating the vehicle normally Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
- NOTICE:
-
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
27020
1.REMOVE GENERATOR ASSEMBLY
17111
2.REMOVE INTAKE MANIFOLD
16572D
3.DISCONNECT NO. 2 RADIATOR HOSE
16032
4.REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

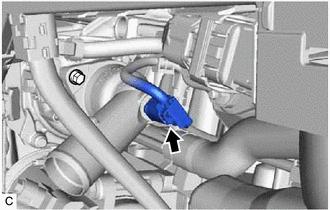

Disconnect the water inlet with thermostat sub-assembly connector.

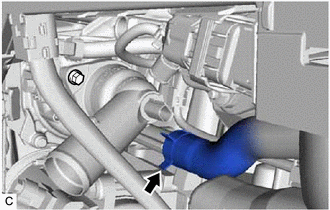

Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly.
- NOTICE:
- ·
Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.
·Do not damage the water inlet with thermostat sub-assembly.
- HINT:
-
When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

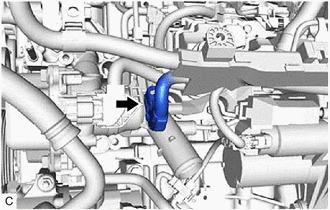

Disconnect the sensor wire connector.

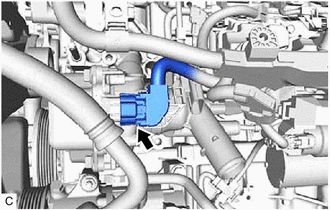

Disconnect the engine water pump assembly (water inlet housing) connector.

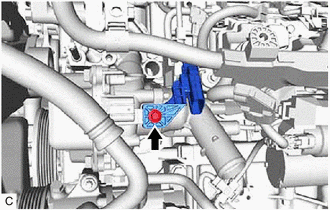

Using an 8 mm socket wrench, remove the bolt and disconnect the sensor wire from the engine water pump assembly (water inlet housing).

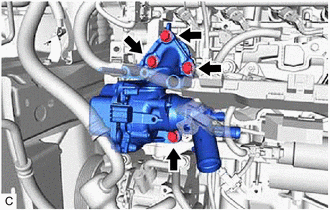

Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block assembly.
Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.
Remove the gasket from the water inlet with thermostat sub-assembly.
Remove the gasket from the engine water pump assembly (water inlet housing).
Using an E8 "TORX" socket wrench, remove the stud bolt.
