The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during generator assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Lane Tracing Assist System | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. | ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
|
| Pre-collision System | ||
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted | ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
|
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Power Door Lock Control System
·
Back door opener |
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
|
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
1. PRECAUTION
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3.REMOVE V-RIBBED BELT
27020
4.REMOVE GENERATOR ASSEMBLY

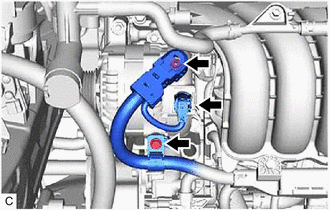

Disconnect the generator assembly connector.
Open the terminal cap.
Remove the nut and disconnect the wire harness from terminal B.
Remove the bolt and separate the wire harness clamp bracket from the generator assembly.

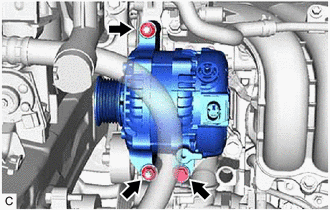

Remove the 2 nuts, bolt and generator assembly.
