M20C-FKS, M20D-FKS FUEL  FUEL TANK  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel tank assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Gas leak from exhaust system is repaired Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

CAUTION:
·
A360563

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.

·
A360564

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

·
A344817

The fuel tank assembly is very heavy. Be sure to follow the procedure described in the repair manual, or the fuel tank assembly may fall off the engine lifter.



HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 3.DRAIN FUEL

Hide 58166A 5.REMOVE FRONT FLOOR COVER LH

a.

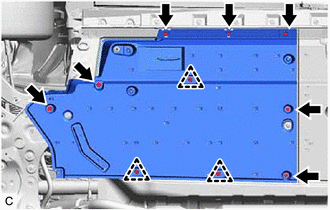

A476823

Remove the 3 clips, 2 bolts and 5 screws.


b.
A476824

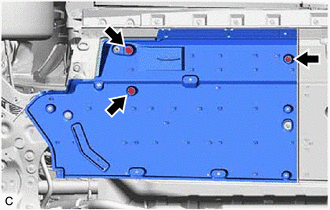

Turn the 3 clips and remove the front floor cover LH from the vehicle body.

NOTICE:

If the 3 clips are not turned when the front floor cover LH is removed, the front floor cover LH or stud bolt may be damaged.


HINT:

Do not remove the clips from the front floor cover LH.



Hide 58399D 6.REMOVE NO. 2 FLOOR UNDER COVER

a.

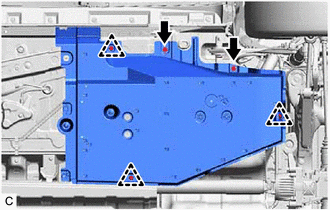

A476825

Remove the 3 clips and 2 bolts.


b.
A476826

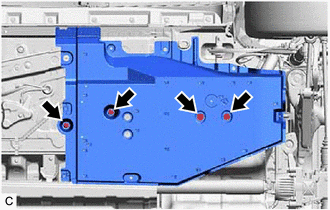

Turn the 4 clips and remove the No. 2 floor under cover from the vehicle body.

NOTICE:

If the 4 clips are not turned when the No. 2 floor under cover is removed, the No. 2 floor under cover or stud bolt may be damaged.


HINT:

Do not remove the clips from the No. 2 floor under cover.



Hide 58165C 7.REMOVE FRONT FLOOR COVER RH

a.
A476827

Remove the 2 clips, 2 bolts and 4 screws.


b.

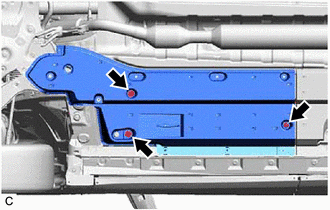

A476828

Turn the 3 clips and remove the front floor cover RH from the vehicle body.

NOTICE:

If the 3 clips are not turned when the front floor cover RH is removed, the front floor cover RH or stud bolt may be damaged.


HINT:

Do not remove the clips from the front floor cover RH.



Hide 58398F 8.REMOVE NO. 1 FLOOR UNDER COVER

a.

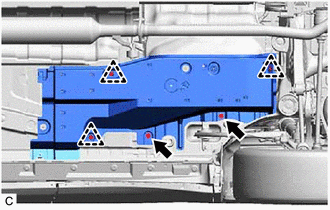

A476829

Remove the 3 clips and 2 bolts.


b.

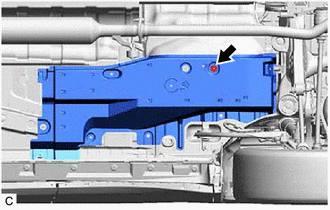

A476830

Turn the clip and remove the No. 1 floor under cover from the vehicle body.

NOTICE:

If the clip is not turned when the No. 1 floor under cover is removed, the No. 1 floor under cover or stud bolt may be damaged.


HINT:

Do not remove the clip from the No. 1 floor under cover.



Hide 37100 10.REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

Hide 77606C 11.REMOVE NO. 2 FUEL TANK PROTECTOR

a.
A476831

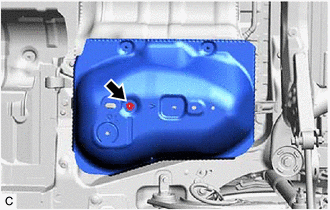

Remove the nut and No. 2 fuel tank protector.


Hide 77606 12.REMOVE NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY

a.
A476832

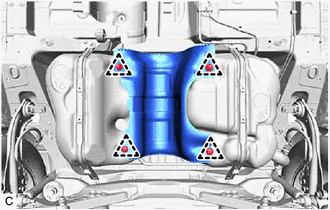

Remove the 4 clips and No. 1 fuel tank protector sub-assembly from the fuel tank assembly.


Hide 13.DISCONNECT FUEL TANK EVAP/VENT TUBE SUB-ASSEMBLY

a.

Disengage the clamp.


b.
A434515

Disconnect the fuel tank evap/vent tube sub-assembly from the fuel tank vent hose sub-assembly.

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL SYSTEM>PRECAUTION


Hide 77209C 14.DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

a.

Hide 15.DISCONNECT FUEL TANK BREATHER TUBE

a.
A434514

Disconnect the fuel tank breather tube from the fuel tank breather tube sub-assembly.

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL SYSTEM>PRECAUTION


Hide 77210 16.DISCONNECT FUEL TANK FILLER PIPE ASSEMBLY

a.
A434517

Disconnect the fuel tank filler pipe assembly from the fuel tank assembly.

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL SYSTEM>PRECAUTION


Hide 77100 17.REMOVE FUEL TANK ASSEMBLY

CAUTION:

The fuel tank assembly is very heavy. Be sure to follow the procedure described in the repair manual, or the fuel tank assembly may fall off the engine lifter.


a.
A476837

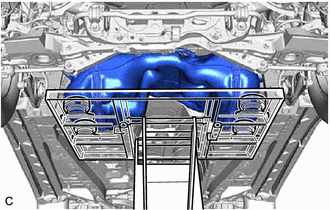

Support the fuel tank assembly using an engine lifter.

HINT:

Using height adjustment attachments and plate lift attachments, keep the fuel tank assembly horizontal.



b.
A476838

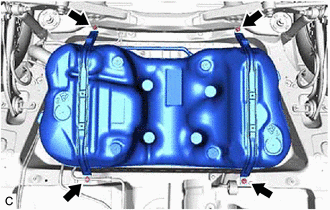

Remove the 4 bolts and 2 fuel tank band sub-assemblies.


c.

Lower the engine lifter to remove the fuel tank assembly.

NOTICE:
·

Be careful not to drop the fuel tank assembly.

·

When removing the fuel tank assembly, tilt it slightly to prevent it from interfering with the surrounding parts.




Hide 77209C 18.REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY

a.
A434519

Disengage the clamp to remove the fuel tank main tube sub-assembly from the fuel tank assembly.


Hide 77016H 19.REMOVE FUEL RETURN VENT TUBE SUB-ASSEMBLY

a.

Remove the fuel return vent tube sub-assembly from the fuel tank assembly.


Hide 77651A 20.REMOVE NO. 1 FUEL TANK CUSHION

a.

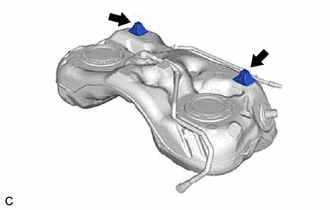

A499848

Remove the 2 No. 1 fuel tank cushions from the fuel tank assembly.


Hide 77652A 21.REMOVE NO. 2 FUEL TANK CUSHION

a.
A499849

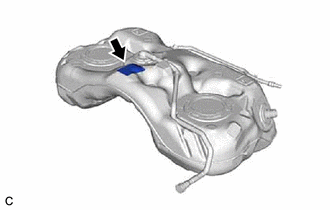

Remove the No. 2 fuel tank cushion from the fuel tank assembly.

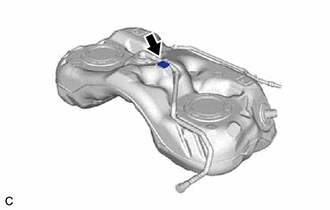

Hide 77653A 22.REMOVE NO. 3 FUEL TANK CUSHION

a.
A499850

Remove the No. 3 fuel tank cushion from the fuel tank assembly.

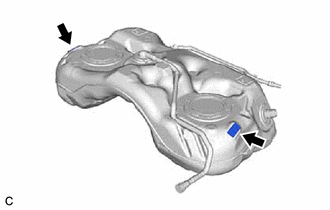

Hide 77654A 23.REMOVE NO. 4 FUEL TANK CUSHION

a.
A499851

Remove the 2 No. 4 fuel tank cushions from the fuel tank assembly.
