RM38N0EC _52 Drivetrain _111807 DRIVE SHAFT / PROPELLER SHAFT _0525508 PROPELLER SHAFT ASSEMBLY A

DRIVE SHAFT / PROPELLER SHAFT PROPELLER SHAFT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during propeller with center bearing shaft assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Gas leaks from exhaust system	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(202111,202303,_51,_111785,_0504416,RM100000001ZIBM,202303,999999,_51,_111785,_0504416,RM1000000029BFF,)

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

PROCEDURE

Hide Display 1. RELEASE PARKING BRAKE

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE ACTUATOR>REMOVAL202111,999999,_54,_111818,_0502910,RM100000001ZC3F_04_0002,

Hide Display 58166A 2.REMOVE FRONT FLOOR COVER LH

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL TANK>REMOVAL202203,202406,_51,_111793,_0504184,RM1000000022AQO_01_0107,202406,999999,_51,_111793,_0504184,RM100000002MUME_01_0107,

Hide Display 58399D 3.REMOVE NO. 2 FLOOR UNDER COVER

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL TANK>REMOVAL202203,202406,_51,_111793,_0504184,RM1000000022AQO_01_0103,202406,999999,_51,_111793,_0504184,RM100000002MUME_01_0103,

Hide Display 58165C 4.REMOVE FRONT FLOOR COVER RH

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL TANK>REMOVAL202203,202406,_51,_111793,_0504184,RM1000000022AQO_01_0106,202406,999999,_51,_111793,_0504184,RM100000002MUME_01_0106,

Hide Display 58398F 5.REMOVE NO. 1 FLOOR UNDER COVER

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (FUEL)>FUEL TANK>REMOVAL202203,202406,_51,_111793,_0504184,RM1000000022AQO_01_0104,202406,999999,_51,_111793,_0504184,RM100000002MUME_01_0104,

Hide Display 17410 6.REMOVE FRONT EXHAUST PIPE ASSEMBLY

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL202111,202303,_51,_111792,_0503719,RM100000001ZFP6,202303,999999,_51,_111792,_0503719,RM1000000029Z2M,

Hide Display 58152A 7.REMOVE LOWER NO. 1 FRONT FLOOR HEAT INSULATOR

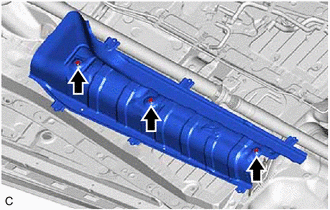

Remove the 3 nuts and lower No. 1 front floor heat insulator.

Hide Display 37100 8.REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

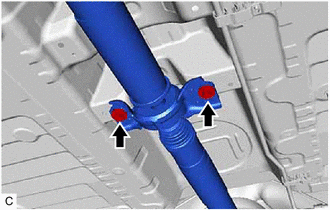

Remove the 2 bolts and 2 center No. 2 support bearing washers, and disconnect the propeller shaft with center bearing assembly.

NOTICE:: ·

During the removal, do not exert excessive force on the universal joint.

·

When removing, transporting or storing the propeller shaft with center bearing assembly, do not allow the No. 2 joint angle to exceed 20°.

1.771,1.417 1.177,1.927 1.177,1.927 1.75,1.344 true 0.813,1.885 1.125,2.083 0.313,0.198 10 true *a

Matchmark

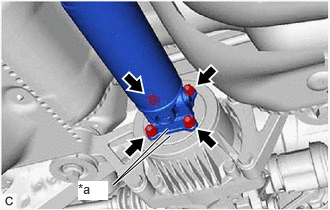

Place matchmarks on the differential carrier assembly and propeller shaft with center bearing assembly.

Remove the 4 nuts and 4 washers, and disconnect the propeller shaft with center bearing assembly from the differential carrier assembly.

1.729,1.49 2.063,1.896 2.063,1.896 1.729,1.406 true 0.833,0.417 0.667,0.417 false 2.135,1.885 2.448,2.083 0.313,0.198 10 true *a

Matchmark

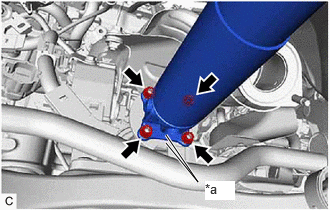

Place matchmarks on the transfer assembly and propeller shaft with center bearing assembly.

Remove the 4 nuts and 4 washers, and disconnect the propeller shaft with center bearing assembly from the transfer assembly.
