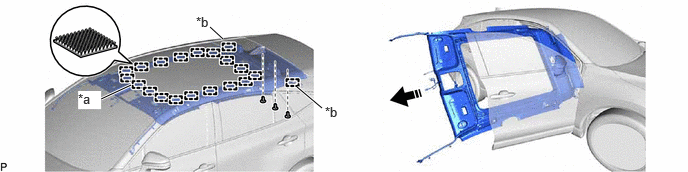

INTERIOR PANELS / TRIM ROOF HEADLINING REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during roof headlining assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Auxiliary battery terminal is disconnected/reconnected	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202303,999999,_58,_111838,_0499714,RM100000002AQNJ,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202406,999999,_V1,_111780,_0504976,RM100000002MNUD,

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

for Gasoline Model:

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1.REMOVE FRONT SEAT ASSEMBLY

for Manual Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>REMOVAL202406,999999,_58,_111839,_0501171,RM100000002MQOP,

for Power Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REMOVAL202406,999999,_58,_111839,_0500775,RM100000002MQQJ,

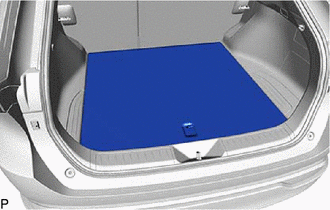

Hide Display 58410B 2.REMOVE DECK BOARD ASSEMBLY

Remove the deck board assembly.

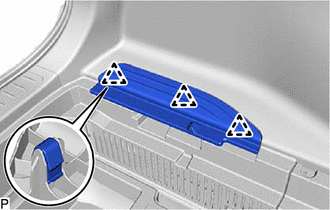

Hide Display 58416K 3.REMOVE REAR NO. 2 FLOOR BOARD

Disengage the 3 clips to remove the rear No. 2 floor board.

Hide Display 58417 4.REMOVE REAR NO. 3 FLOOR BOARD

Disengage the 3 clips to remove the rear No. 3 floor board.

Hide Display 65351A 5.REMOVE BATTERY HOLE COVER

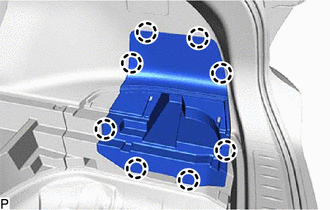

Disengage the 8 claws to remove the battery hole cover.

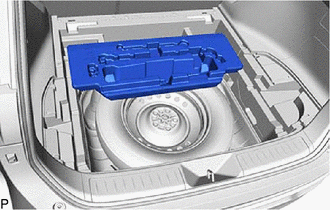

Hide Display 64779 6.REMOVE SPARE WHEEL COVER TRAY

Remove the spare wheel cover tray.

Hide Display 7.REMOVE REAR SEAT ASSEMBLY

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for SFTM Made)>REMOVAL202111,999999,_58,_111839,_0500762,RM100000001Z3BE,

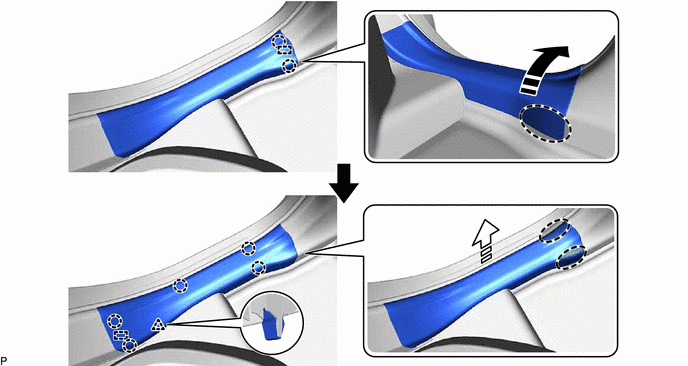

Hide Display 67914B 8.REMOVE FRONT DOOR SCUFF PLATE LH

Disengage the 2 claws and guide as shown in the illustration.

0,0 0,0 false

	Place Hand Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

Disengage the 6 claws and guide as shown in the illustration to remove the front door scuff plate LH.

w/ Illumination:

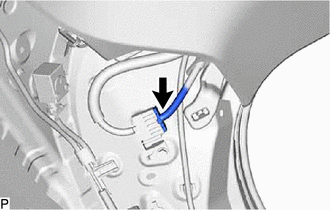

Disconnect the connector.

Hide Display 67913B 9.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.

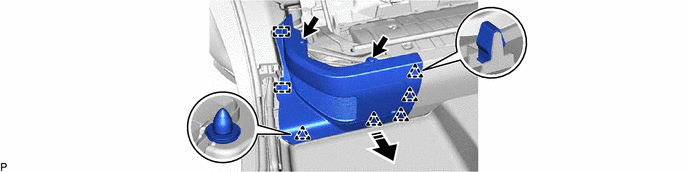

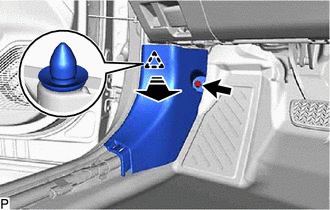

Hide Display 62112A 10.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

0,0 0,0 false

Remove in this Direction

Remove the clip.

Disengage the clip to remove the cowl side trim sub-assembly LH as shown in the illustration.

Hide Display 62111C 11.REMOVE COWL SIDE TRIM BOARD RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62312B 12.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL202111,999999,_59,_111831,_0501458,RM100000001Z65U_02_0003,

Hide Display 62311B 13.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure as for the LH side.

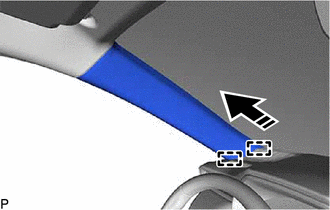

Hide Display 62212 14.REMOVE FRONT PILLAR GARNISH LH

2.25,0.969 2.25,0.625 false 2.188,1.021 2.5,1.219 0.313,0.198 10 false *1

*1	Front Pillar Garnish Clip
	Remove in this Direction

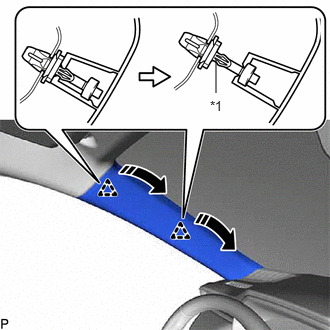

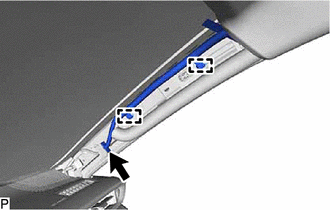

Pull the upper part of the front pillar garnish LH toward the inside of the cabin as shown in the illustration to disengage the front pillar garnish LH from the base of the 2 front pillar garnish clips.

HINT:: Let the front pillar garnish LH hang from the 2 front pillar garnish clips.

0.615,0.719 0.948,1.24 true 0.396,0.604 0.823,0.813 0.427,0.208 10 true SST

Pull in this Direction

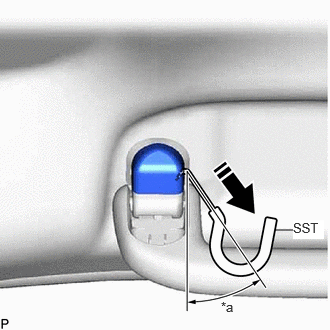

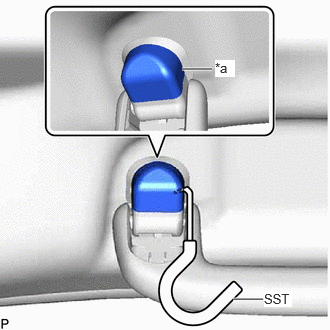

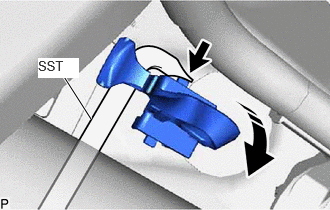

Pull down the front pillar garnish clip while pushing the side of the release lever with SST as shown in the illustration.

SST: 09813-00020

0.604,0.813 0.917,1.365 true 0.385,0.625 0.802,0.844 0.417,0.219 10 true SST

Pull in this Direction

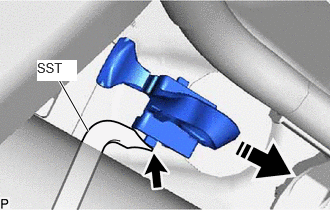

While pulling the front pillar garnish clip, push the side of the release lever with SST as shown in the illustration and then separate the front pillar garnish clip from the vehicle body.

0,0 0,0 false

Remove in this Direction

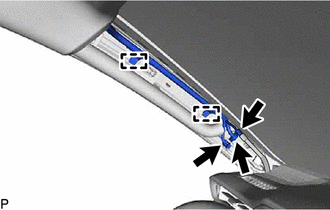

Disengage the 2 guides to remove the front pillar garnish LH as shown in the illustration.

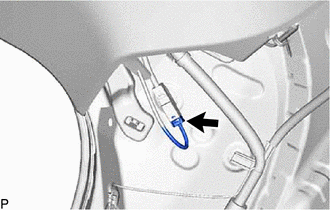

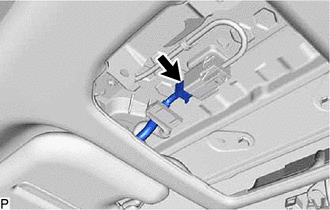

w/ Front No. 2 Speaker:

Disconnect the connector.

1.25,1.219 1.25,0.604 true 1.875,1.406 1.875,0.708 true 1.188,1.24 1.5,1.438 0.313,0.198 10 false *a 1.823,1.479 2.135,1.677 0.313,0.198 10 false *b

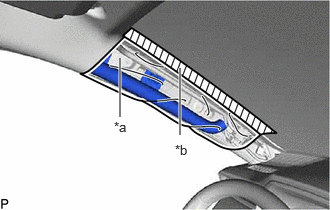

*a	Protective Cover
*b	Adhesive Tape

Protect the curtain shield airbag assembly LH.

Cover the curtain shield airbag assembly LH with a protective cover, such as a cloth, and secure the edges of the cover with tape as shown in the illustration.

NOTICE:: Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish LH is removed.

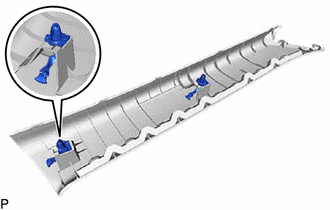

Remove the 2 front pillar garnish clips from the front pillar garnish LH.

Hide Display 62211 15.REMOVE FRONT PILLAR GARNISH RH

HINT:: Use the same procedure as for the LH side.

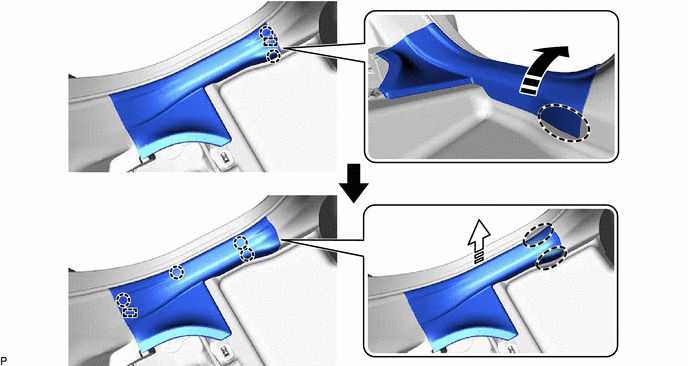

Hide Display 67918A 16.REMOVE REAR DOOR SCUFF PLATE LH

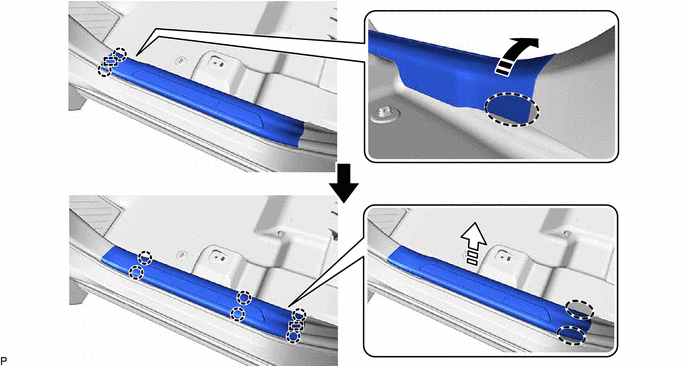

for Gasoline Model:

Disengage the 2 claws and guide as shown in the illustration.

0,0 0,0 false

	Place Hand Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

ii.

Disengage the 4 claws and guide as shown in the illustration to remove the rear door scuff plate LH.

for HV Model:

Disengage the 2 claws and guide as shown in the illustration.

0,0 0,0 false

	Place Hand Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

ii.

Disengage the 5 claws, clip and guide as shown in the illustration to remove the rear door scuff plate LH.

Hide Display 67917A 17.REMOVE REAR DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.

Hide Display 58466J 18.REMOVE NO. 2 BATTERY SERVICE COVER BOARD (for HV Model)

Using a clip remover, remove the 2 clips.

0,0 0,0 false

Remove in this Direction

Disengage the 5 clips and 2 guides to remove the No. 2 battery service cover board as shown in the illustration.

Hide Display 58467H 19.REMOVE NO. 3 BATTERY SERVICE COVER BOARD (for HV Model)

Using a clip remover, remove the 2 clips.

0,0 0,0 false

Remove in this Direction

Disengage the 5 clips and 2 guides to remove the No. 3 battery service cover board as shown in the illustration.

Hide Display 62332C 20.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>REMOVAL202111,999999,_59,_111831,_0501460,RM100000001Z661_02_0010,

Hide Display 62331C 21.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure as for the LH side.

Hide Display 73233 22.REMOVE LAP BELT OUTER ANCHOR COVER (for LH Side)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>REMOVAL202406,999999,_58,_111840,_0501513,RM100000002MX0V_02_0051,

Hide Display 73220 23.DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>REMOVAL202406,999999,_58,_111840,_0501513,RM100000002MX0V_02_0037,

Hide Display 73233 24.REMOVE LAP BELT OUTER ANCHOR COVER (for RH Side)

HINT:: Use the same procedure as for the LH side.

Hide Display 73210 25.DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

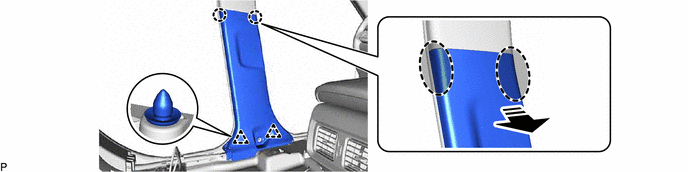

Hide Display 62414A 26.REMOVE CENTER PILLAR LOWER GARNISH LH

Disengage the 2 claws as shown in the illustration.

0,0 0,0 false

Place Hand Here

Remove in this Direction

Disengage the 2 clips to remove the center pillar lower garnish LH.

Hide Display 62413A 27.REMOVE CENTER PILLAR LOWER GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62420A 28.REMOVE CENTER PILLAR GARNISH ASSEMBLY LH

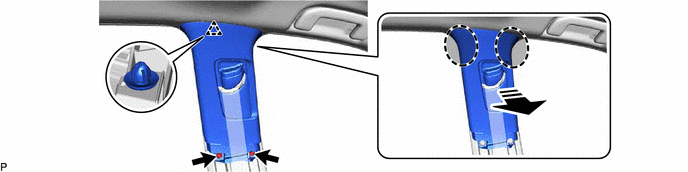

Remove the 2 clips.

0,0 0,0 false

Place Hand Here

Remove in this Direction

Disengage the clip as shown in the illustration.

Pass the anchor of the front seat outer belt assembly LH through the center pillar garnish assembly LH to remove it.

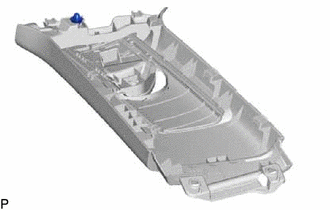

Remove the clip from the center pillar garnish assembly LH.

Hide Display 62410A 29.REMOVE CENTER PILLAR GARNISH ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

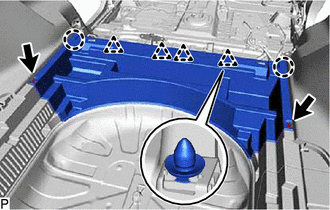

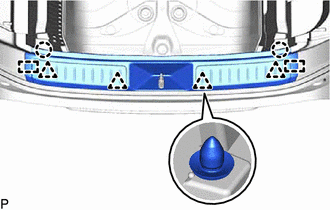

Hide Display 58387B 30.REMOVE REAR FLOOR FINISH PLATE

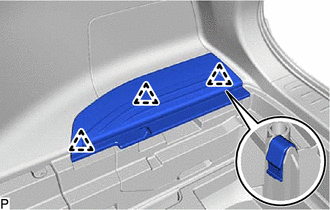

Disengage the 2 claws, 2 guides and 4 clips to remove the rear floor finish plate.

Hide Display 58577E 31.REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

Remove the 2 screws.

Disengage the 2 claws and 4 clips to remove the rear No. 1 floor mat support side plate.

Hide Display 73706 32.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>CHILD RESTRAINT SEAT ANCHOR BRACKET>REMOVAL202203,999999,_58,_111840,_0501519,RM1000000022LL4_01_0002,

Hide Display 73705 33.REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 71304C 34.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH

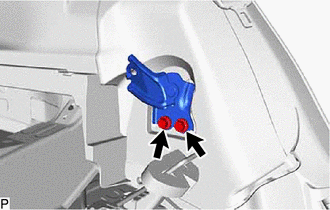

Remove the 2 bolts and rear seatback hinge sub-assembly LH.

Hide Display 71303C 35.REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

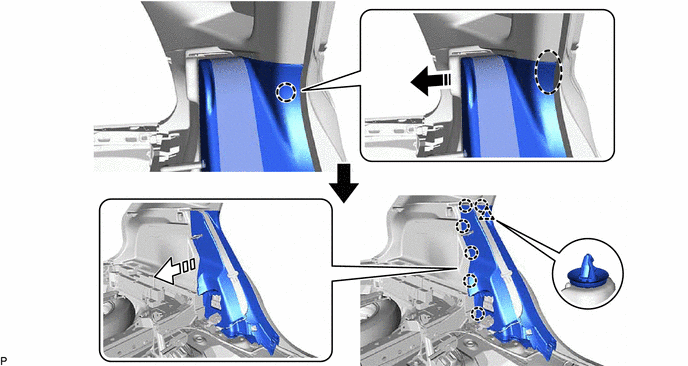

Hide Display 62552F 36.REMOVE REAR SEAT SIDE GARNISH LH

Disengage the claw as shown in the illustration.

0,0 0,0 false

	Remove in this Direction (1)		Remove in this Direction (2)
	Place Hand Here	-	-

Disengage the clip and 6 claws to remove the rear seat side garnish LH as shown in the illustration.

Hide Display 62551F 37.REMOVE REAR SEAT SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 81330 38.REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>LUGGAGE COMPARTMENT ROOM LIGHT>REMOVAL202111,999999,_58,_111833,_0499875,RM100000001Z0IC_01_0029,

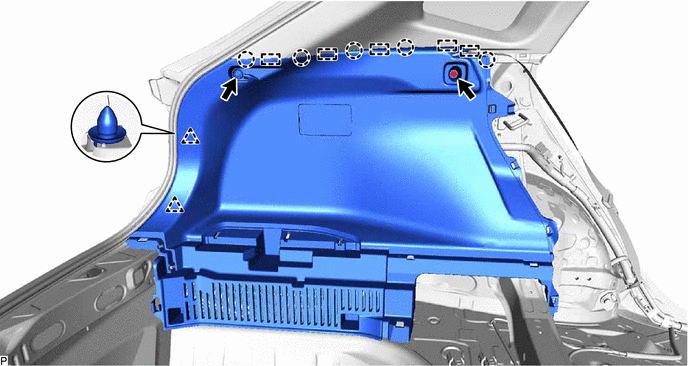

Hide Display 64740C 39.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

Remove the screw and clip.

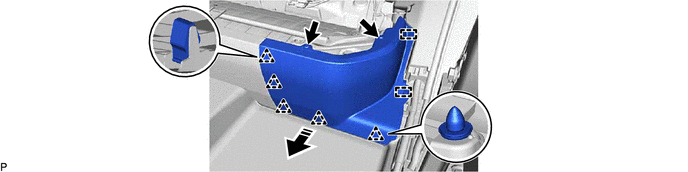

Disengage the 5 claws, 2 clips and 5 guides to remove the deck trim side panel assembly LH.

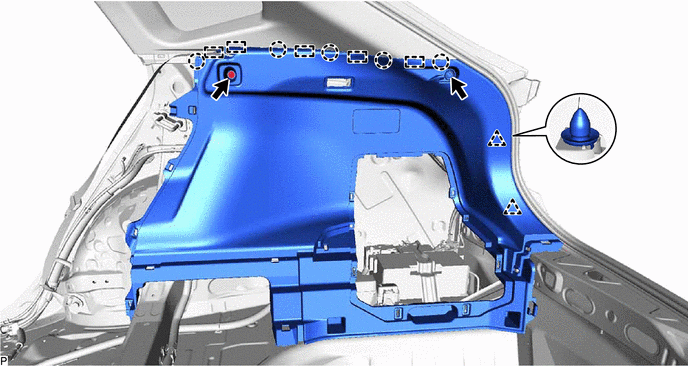

Hide Display 64730B 40.REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

Remove the screw and clip.

Disengage the 5 claws, 2 clips and 5 guides to remove the deck trim side panel assembly RH.

Hide Display 62480A 41.REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

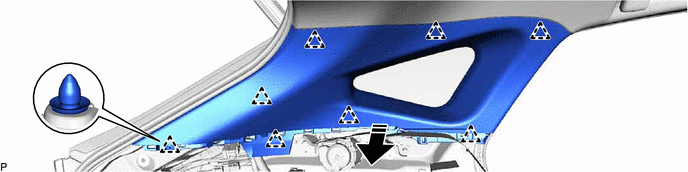

Disengage the 8 clips as shown in the illustration to remove the roof side inner garnish assembly LH.

0,0 0,0 false

Remove in this Direction

Remove the 8 clips from the roof side inner garnish assembly LH.

Hide Display 62470A 42.REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 43.REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

for P710:Click hereDrivetrain>P710 (HYBRID TRANSMISSION / TRANSAXLE)>SHIFT LEVER>REMOVAL202203,999999,_52,_111805,_0503481,RM1000000022L0Y,

for K120:Click hereDrivetrain>K120 / K120F / K121 / K121F (CVT)>SHIFT LEVER>REMOVAL202203,999999,_52,_111806,_0499742,RM1000000022725,

Hide Display 58996A 44.REMOVE NO. 2 CONSOLE BOX MOUNTING BRACKET

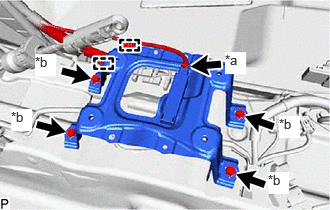

2.344,0.542 2.563,0.771 0.219,0.229 10 true *a 2.906,1.208 3.125,1.438 0.219,0.229 10 true *b 2.792,1.792 3.01,2.021 0.219,0.229 10 true *b 0.115,1.135 0.333,1.365 0.219,0.229 10 true *b 0.365,0.563 0.583,0.792 0.219,0.229 10 true *b

*a	Connector
*b	Bolt

Disconnect the connector.

Disengage the 2 clamps.

Remove the 4 bolts and No. 2 console box mounting bracket.

Hide Display 74325 45.REMOVE VISOR BRACKET COVER LH

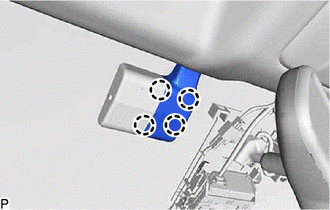

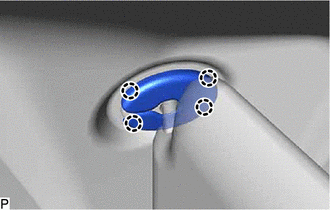

Using a moulding remover, disengage the 4 claws and remove the visor bracket cover LH.

Hide Display 74320 46.REMOVE VISOR ASSEMBLY LH

Remove the 2 screws.

2.146,0.438 2.354,0.24 true 2.365,0.083 2.604,0.281 0.24,0.198 10 true *a

*a	Visor Holder
	Remove in this Direction (1)
	Remove in this Direction (2)

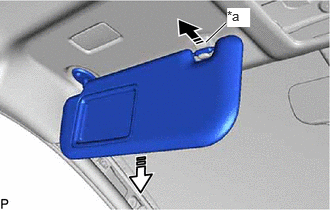

Pull the visor assembly LH in the direction indicated by the arrow (1) shown in the illustration to disconnect it from the visor holder.

Pull the visor assembly LH in the direction indicated by the arrow (2) shown in the illustration to remove it.

Hide Display 74325 47.REMOVE VISOR BRACKET COVER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 74310 48.REMOVE VISOR ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 49.REMOVE VISOR HOLDER

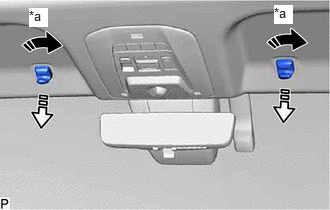

0.302,0.083 0.5,0.281 0.198,0.198 10 true *a 2.854,0.052 3.052,0.25 0.198,0.198 10 true *a

*a	45°
	Remove in this Direction (1)
	Remove in this Direction (2)

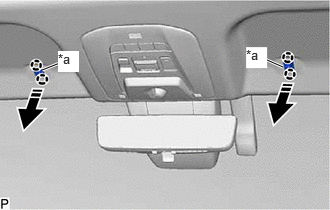

Turn the 2 visor holders approximately 45° and remove them as indicated by the arrows, in the order shown in the illustration.

2.948,0.698 2.76,0.615 true 0.646,0.646 0.438,0.729 true 2.563,0.49 2.781,0.708 0.219,0.219 10 true *a 0.604,0.531 0.823,0.75 0.219,0.219 10 true *a

*a	Base of Visor Holder
	Remove in this Direction

Disengage the 4 claws as shown in the illustration to remove the base of each visor holder.

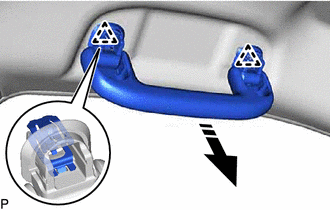

Hide Display 74610A 50.REMOVE ASSIST GRIP SUB-ASSEMBLY

HINT:: Use the same procedure for all assist grip sub-assemblies.

1.896,0.719 2.208,0.719 true 2.427,3.115 2.74,3.115 true 2.24,0.625 2.448,0.802 0.208,0.177 10 true *a 2.75,3.031 3.042,3.198 0.292,0.167 10 true SST

Cutout

Insert SST into the cutout of the assist grip cover as shown in the illustration.

SST: 09813-00010

NOTICE:: To prevent the assist grip sub-assembly from being damaged, make sure to insert SST straight into the cutout.

HINT:: Use the same procedure for the LH side and RH side.

2.865,2.396 3.094,2.396 false 3.052,2.292 3.375,2.49 0.323,0.198 10 true SST 2.302,3.115 2.615,3.313 0.313,0.198 10 false *a

*a	30 to 45°
	Remove in this Direction

Pull SST as shown in the illustration to disengage the claw.

NOTICE:: To prevent the assist grip sub-assembly from being damaged, make sure to only pull SST as shown in the illustration.

HINT:: ·

Use the same procedure for the claw on the other side of the assist grip cover LH.

·

Use the same procedure for the LH side and RH side.

Remove the assist grip cover LH.

HINT:: Use the same procedure for the LH side and RH side.

0,0 0,0 false

Remove in this Direction

Disengage the 2 clips as shown in the illustration to remove the assist grip assembly.

Remove the 2 clips from the vehicle body.

Hide Display 74630E 51.REMOVE REAR ASSIST GRIP ASSEMBLY LH

HINT:: Use the same procedure as for the assist grip assembly.

Hide Display 74620C 52.REMOVE REAR ASSIST GRIP ASSEMBLY RH

HINT:: Use the same procedure as for the assist grip assembly.

Hide Display 53.REMOVE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL202111,999999,_58,_111833,_0499873,RM100000001Z0I2_01_0001,

Hide Display 81240 54.REMOVE NO. 1 ROOM LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>ROOM LIGHT>REMOVAL202111,999999,_58,_111833,_0499874,RM100000001Z0I8,

Hide Display 81340 55.REMOVE VANITY LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>VANITY LIGHT>REMOVAL202111,999999,_58,_111833,_0499872,RM100000001Z0HY_02_0007,

Hide Display 86466E 56.REMOVE NO. 2 FORWARD RECOGNITION COVER

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>REMOVAL202303,999999,_95,_111850,_0502177,RM10000000292O2_01_0022,

Hide Display 86466D 57.REMOVE NO. 1 FORWARD RECOGNITION COVER

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>REMOVAL202303,999999,_95,_111850,_0502177,RM10000000292O2_01_0023,

Hide Display 89943 58.REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

Click hereVehicle Exterior>WIPER / WASHER>RAIN SENSOR>REMOVAL202111,999999,_59,_111846,_0500799,RM100000001Z3XW_01_0004,

Hide Display 59.REMOVE COVER (w/ ETC)

Disengage the 4 claws to remove the cover.

Hide Display 60.REMOVE ROOF HEADLINING ASSEMBLY

for Front Pillar LH Side:

Remove the protective cover.

ii.

Disconnect each connector.

iii.

Disengage the 2 clamps.

iv.

Install the protective cover.

for Front Pillar RH Side:

Remove the protective cover.

ii.

Disconnect the connector.

iii.

Disengage the 2 clamps.

iv.

Install the protective cover.

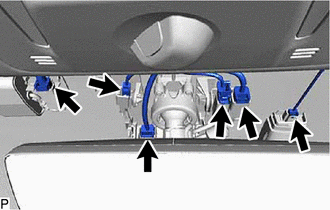

for Windshield Glass Side:

Disconnect each connector.

for Map Light Side with Long Type Panoramic Fixed Moon Roof:

Disconnect the connector.

for Rear Pillar LH Side with Digital Inner Mirror:

Disconnect the connector.

for Rear Pillar RH Side:

Disconnect the connector.

for Short Type Panoramic Fixed Moon Roof:

Using a clip remover, remove the 3 clips.

1.125,0.99 1.365,0.854 true 3.292,1 3.042,0.865 true 2.24,0.417 2.115,0.292 true 0.927,0.885 1.167,1.094 0.24,0.208 10 true *a 3.313,0.948 3.552,1.156 0.24,0.208 10 true *b 1.979,0.146 2.219,0.354 0.24,0.208 10 false *b

*a	Fastener	*b	Guide
	Remove in this Direction	-	-

ii.

Disengage the 2 guides and 14 fasteners.

iii.

Remove the roof headlining assembly from the vehicle through the front passenger door as shown in the illustration.

NOTICE:: Do not damage the roof headlining assembly or vehicle interior.

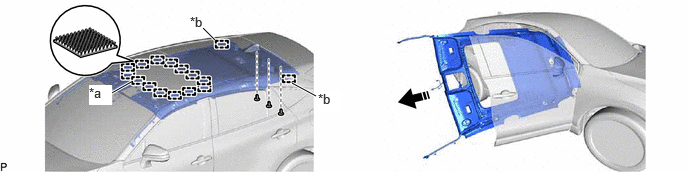

for Long Type Panoramic Fixed Moon Roof:

Using a clip remover, remove the 3 clips.

1.052,1.031 1.365,0.885 true 3.094,0.906 3.354,1.125 true 2.188,0.281 2.323,0.406 true 0.813,0.948 1.052,1.135 0.24,0.188 10 true *a 3.385,1.083 3.625,1.271 0.24,0.188 10 false *b 2.042,0.146 2.281,0.333 0.24,0.188 10 false *b

*a	Fastener	*b	Guide
	Remove in this Direction	-	-

ii.

Disengage the 2 guides and 18 fasteners.

iii.

Remove the roof headlining assembly from the vehicle through the front passenger door as shown in the illustration.

NOTICE:: Do not damage the roof headlining assembly or vehicle interior.

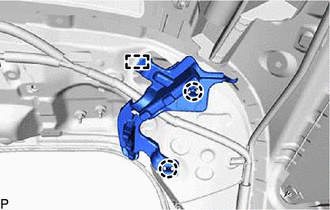

Hide Display 66425B 61.REMOVE REAR NO. 2 SIDE RAIL SPACER LH

HINT:: Perform this procedure only when replacement of the rear No. 2 side rail spacer LH is necessary.

Disengage the 2 claws and guide to remove the rear No. 2 side rail spacer LH.

Hide Display 66415B 62.REMOVE REAR NO. 2 SIDE RAIL SPACER RH

HINT:: Use the same procedure as for the LH side.
