K120 / K120F / K121 / K121F CVT  SHIFT LEVER  REMOVAL

Fully apply the parking brake and chock a wheel.

CAUTION:

·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

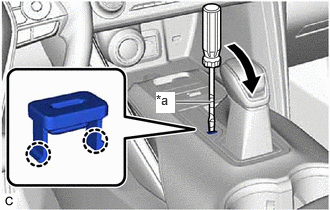

1.833,1.063 2.188,1.063 true 1.625,0.958 1.823,1.177 0.198,0.219 10 true *a

*a	Protective Tape

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the upper console panel sub-assembly.

NOTICE:

Be careful not to damage the shift lock release button cover and shift position indicator.

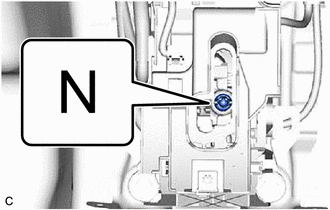

Move the shift lever to N.

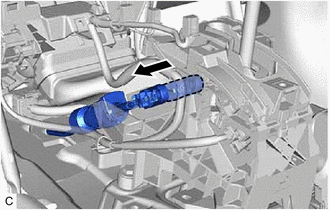

Disconnect the transmission control cable assembly from the transmission floor shift assembly.

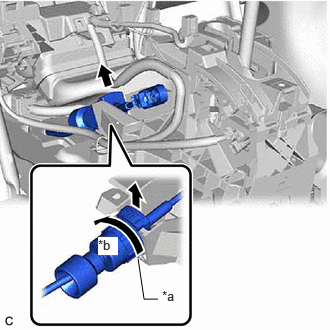

1.438,2.698 1.5,3.115 1.5,3.115 1.646,3.115 true 1.021,2.469 1.229,2.656 0.208,0.188 10 true *b 1.688,3 1.906,3.219 0.219,0.219 10 false *a

*a	Lock Nut
*b	Counterclockwise

Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

Move the shift lever to N.

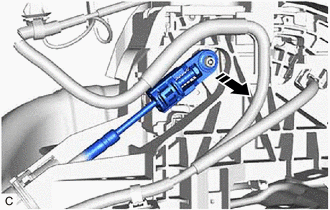

Disconnect the transmission control cable assembly from the transmission floor shift assembly.

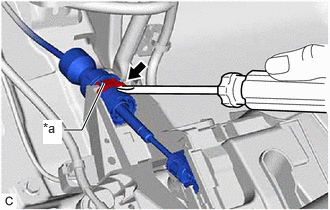

0.667,1.354 0.854,1.354 0.854,1.354 1.083,0.865 true 0.448,1.25 0.646,1.5 0.198,0.25 10 true *a

*a

Stopper

Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

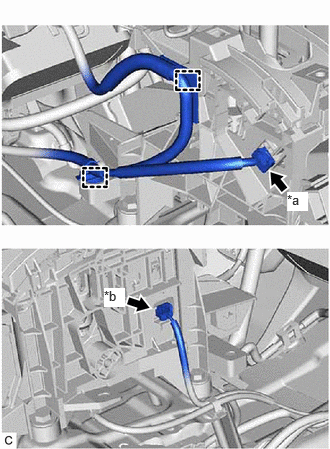

2.99,2 3.208,2.198 0.219,0.198 10 true *a 1.083,3 1.302,3.198 0.219,0.198 10 true *b

*a	Transmission Control Switch Connector
*b	Shift Lock Control ECU Connector

Disconnect the transmission control switch connector.

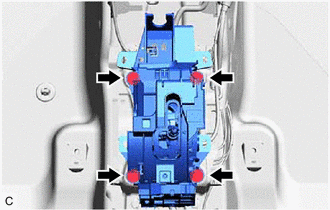

Remove the 4 bolts and transmission floor shift assembly from the vehicle body.
