Vehicle Interior
_111833
LIGHTING (INT)
_0499874
ROOM LIGHT
A
LIGHTING (INT) ROOM LIGHT REMOVAL
PROCEDURE
81240
1.REMOVE NO. 1 ROOM LIGHT ASSEMBLY
a.
1.531,1.917 1.208,1.417
true
1.458,1.896 1.771,2.052
0.313,0.156
10
true
*a
| *a | Protective Tape |
|
Front |

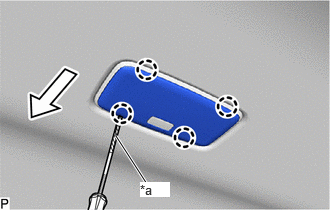

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the room light lens.
b.
1.365,1.604 1.042,1.104
true
1.313,1.625 1.625,1.781
0.313,0.156
10
true
*a
| *a | Protective Tape |
|
|
Front |

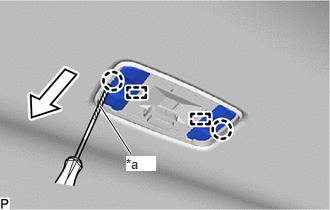

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and 2 guides to remove the 2 inner covers.
c.
1.198,1.927 1.552,2.323
true
1.458,2.344 1.771,2.542
0.313,0.198
10
true
*a
| *a | Protective Tape |
|
|
Front |
|
Remove in this Direction |

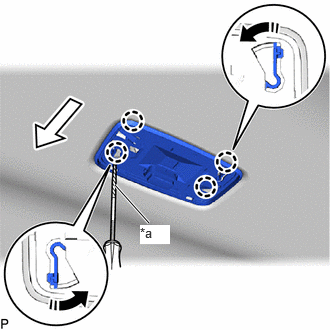

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws as shown in the illustration to separate the room light housing.
d.
Disconnect the connector to remove the room light housing.
