SUPPLEMENTAL RESTRAINT SYSTEMS  CENTER AIRBAG SENSOR ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during airbag sensor assembly or airbag ECU assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

Airbag sensor assembly (for SFTM Made)*
Airbag ECU assembly (for GTMC Made)*
Update ECU security key (Only necessary after replacement) Vehicle Control History (RoB) are stored (Click here)
Perform "Calibration"
·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)
Disconnect cable from negative auxiliary battery terminal Reset back door close position Power Back Door System (Click here)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

Airbag sensor assembly (for SFTM Made)*
Airbag ECU assembly (for GTMC Made)*
Reset memory (Only necessary after replacement) Dynamic Torque Control AWD System (Click here)
Update ECU security key (Only necessary after replacement) Vehicle Control History (RoB) are stored (Click here)
·

Perform reset memory

·

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)
Disconnect cable from negative auxiliary battery terminal Reset back door close position Power Back Door System (Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:
·
Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

·
Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


for Gasoline Model:
·
Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

·
Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
B394719

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION


NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 4.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for M20C-FKS, M20D-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>REMOVAL

for A25D-FXS, A25F-FXS: Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>REMOVAL

CAUTION:
B422343

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.


Hide 58510C 6.DISCONNECT FRONT FLOOR CARPET ASSEMBLY

a.
B581282

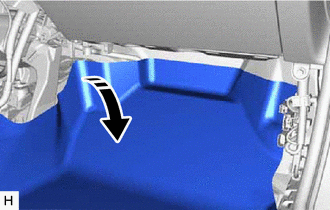

Turn back the front floor carpet assembly.


Hide 89170 7.REMOVE AIRBAG SENSOR ASSEMBLY (for SFTM Made)

a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



c.
B581283C01
1.75,1.021 1.438,0.604 1.438,0.604 1.188,0.604 true 1.854,1.125 2.5,1.125 true 0.99,0.521 1.156,0.729 0.167,0.208 10 true A 2.521,1.021 2.688,1.229 0.167,0.208 10 true *a
*a Lock Lever
V113147

Release the lock (1)
V113148

Disconnect the connector (2)

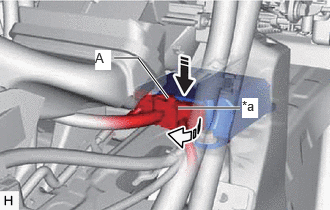

Push down the part (A) in the direction indicated by the arrow (1) to release the lock, and then move the lock lever in the direction indicated by the arrow (2) shown in the illustration to disconnect the connectors.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.



d.
B581284

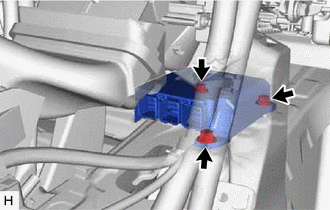

Remove the 3 bolts and airbag sensor assembly.


Hide 89170A 8.REMOVE AIRBAG ECU ASSEMBLY (for GTMC Made)

a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



c.
B581283C01
1.75,1.021 1.438,0.604 1.438,0.604 1.188,0.604 true 1.854,1.125 2.5,1.125 true 0.99,0.521 1.156,0.729 0.167,0.208 10 true A 2.521,1.021 2.688,1.229 0.167,0.208 10 true *a
*a Lock Lever
V113147

Release the lock (1)
V113148

Disconnect the connector (2)


Push down the part (A) in the direction indicated by the arrow (1) to release the lock, and then move the lock lever in the direction indicated by the arrow (2) shown in the illustration to disconnect the connectors.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.



d.
B581284

Remove the 3 bolts and airbag ECU assembly.
