RM38N0EC _56 Audio / Visual / Telematics _111825 PARK ASSIST / MONITORING _0500525 ULTRASONIC SENSOR(for Rear) A

PARK ASSIST / MONITORING  ULTRASONIC SENSOR(for Rear)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ultrasonic sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Ultrasonic sensor
·

Ultrasonic sensor detection angle

·

Ultrasonic sensor detection angle registration


·

Toyota Parking Assist-sensor System

·

Parking Support Brake System


(Click here)

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Ultrasonic sensor
·

Ultrasonic sensor detection angle

·

Ultrasonic sensor detection angle registration


·

Toyota Parking Assist-sensor System

·

Parking Support Brake System


(Click here)

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 89342A 2.REMOVE REAR CENTER ULTRASONIC SENSOR

HINT:

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.


a.

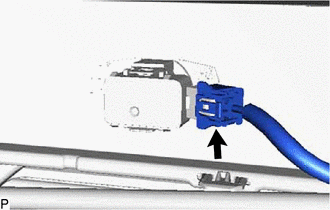

E475067

Disconnect the connector.


b.

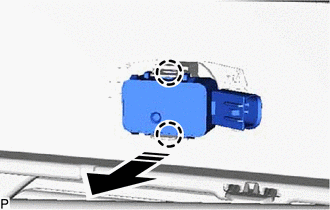

E475068
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws and remove the rear center ultrasonic sensor as shown in the illustration.


Hide 89342 3.REMOVE REAR CORNER ULTRASONIC SENSOR

HINT:

The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.


a.

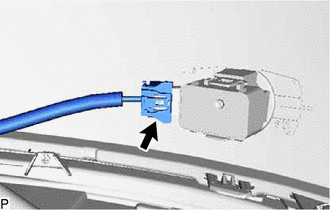

E475070

Disconnect the connector.


b.

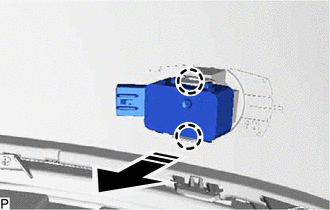

E475071
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws and remove the rear corner ultrasonic sensor as shown in the illustration.


Hide 89C48B 4.REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER

HINT:
·

Perform this procedure only when replacement of the rear center ultrasonic sensor retainer is necessary.

·

When removing the rear center ultrasonic sensor retainer, heat the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light.

·

The illustration is for the LH side. Use the same procedure for the RH side and LH side.



a.

Heat the rear bumper assembly and rear center ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

Heating Temperature:
Item Temperature
Rear Bumper Assembly 40 to 60°C (104 to 140°F)
Rear Center Ultrasonic Sensor Retainer


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.




b.

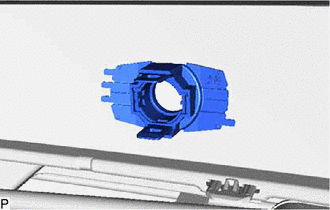

E475073

Remove the rear center ultrasonic sensor retainer.


Hide 89C48A 5.REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER

HINT:
·

Perform this procedure only when replacement of the rear corner ultrasonic sensor retainer is necessary.

·

When removing the rear corner ultrasonic sensor retainer, heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.

·

The illustration is for the LH side. Use the same procedure for the RH side and LH side.



a.

Heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

Heating Temperature:
Item Temperature
Rear Bumper Assembly 40 to 60°C (104 to 140°F)
Rear Corner Ultrasonic Sensor Retainer


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.




b.

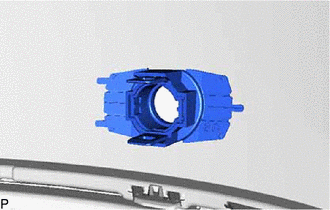

E475077

Remove the rear corner ultrasonic sensor retainer.


Hide 89305 6.REMOVE ULTRASONIC SENSOR CUSHION SET

HINT:

Only perform this procedure when removing and installing the ultrasonic sensor cushion set.


a.

Remove the ultrasonic sensor cushion set as shown in the illustration.

B549651C02
0,0 0,0 false
V113147

Remove in this Direction - -
