EXTERIOR PANELS / TRIM  REAR BUMPER  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear bumper assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

for HV Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

for Gasoline Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 58416K 1.REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)

Hide 81498 4.REMOVE REAR COMBINATION LIGHT COVER LH

a.
B628995

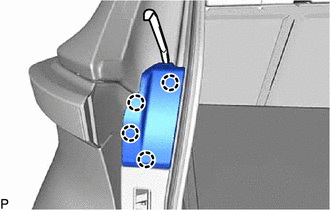

Using a moulding remover, disengage the 4 claws as shown in the illustration to remove the rear combination light cover LH.


Hide 81497 5.REMOVE REAR COMBINATION LIGHT COVER RH

HINT:

Use the same procedure as for the LH side.


Hide 6.REMOVE REAR BUMPER ASSEMBLY

a.
B628996C01
0,0 0,0 false
V100155

Protective Tape

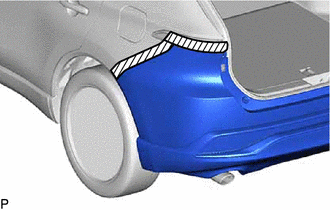

Apply protective tape around the rear bumper assembly as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



b.
B628997

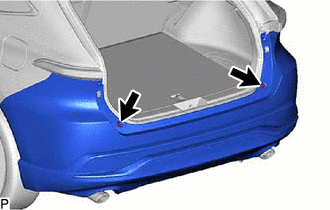

Remove the 2 rear bumper upper stoppers.


c.
B628998

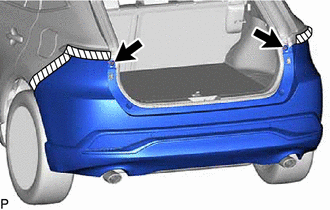

Remove the 2 screws.


d.
B628999

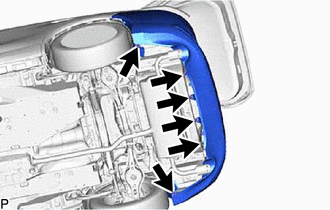

Remove the 6 clips.


e.
B629000

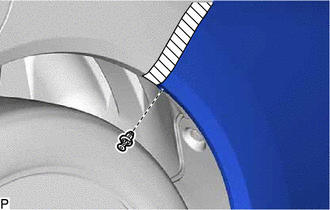

Remove the clip.

HINT:

Use the same procedure for the RH side and LH side.



f.
B629001C01
0,0 0,0 false
V113147

Remove in this Direction

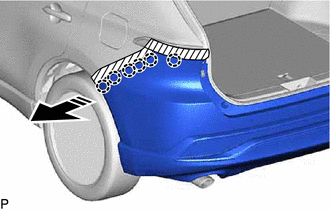

Disengage the 6 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



g.
B646323C02
0.938,3.708 1.167,3.906 0.229,0.198 10 true *A
*A w/ Kick Sensor

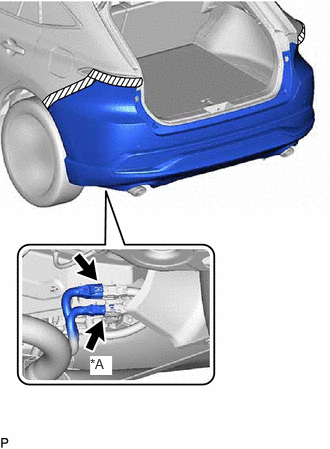

Disconnect each connector.


h.
B629004C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 6 claws and 4 guides as shown in the illustration to remove the rear bumper assembly.
