INTERIOR PANELS / TRIM INSTRUMENT PANEL SAFETY PAD REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during instrument panel safety pad sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Auxiliary battery terminal is disconnected/reconnected	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202303,999999,_58,_111838,_0499714,RM100000002AQNJ,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202406,999999,_V1,_111780,_0504976,RM100000002MNUD,

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)

Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

for Gasoline Model:

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1.ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide Display 45130 2.REMOVE HORN BUTTON ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>REMOVAL202406,999999,_58,_111838,_0502520,RM100000002MS7O,

Hide Display 45100 3.REMOVE STEERING WHEEL ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING WHEEL>REMOVAL202406,999999,_55,_111820,_0503156,RM100000002MQ2I_02_0006,

Hide Display 45287 4.REMOVE LOWER STEERING COLUMN COVER

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL202406,202409,_55,_111820,_0503155,RM100000002MQ07_01_0114,202409,999999,_55,_111820,_0503155,RM100000002OMWK_01_0114,

Hide Display 45286B 5.REMOVE UPPER STEERING COLUMN COVER

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL202406,202409,_55,_111820,_0503155,RM100000002MQ07_01_0099,202409,999999,_55,_111820,_0503155,RM100000002OMWK_01_0099,

Hide Display 84650 6.REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WIPER SWITCH>REMOVAL202111,999999,_59,_111846,_0500793,RM100000001Z3X8_01_0024,

Hide Display 84329 7.REMOVE TURN SIGNAL SWITCH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT DIMMER SWITCH>REMOVAL202111,999999,_59,_111834,_0499897,RM100000001Z0M9_01_0050,

Hide Display 67914B 8.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0001,

Hide Display 62112A 9.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0003,

Hide Display 55606 10.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Remove the 3 screws <C>.

Pull the No. 1 instrument panel under cover sub-assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 3 claws.

Pull the No. 1 instrument panel under cover sub-assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the guide.

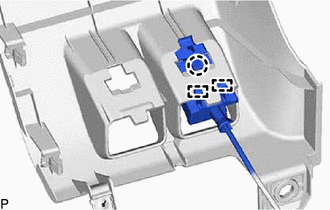

Disengage the 2 claws to disconnect the DLC3.

1.302,1.406 1.854,1.656 true 4.76,1.406 5.313,1.656 true 0.5,0.094 0.875,0.333 0.375,0.24 12 false *A 4,0.094 4.375,0.333 0.375,0.24 12 false *B 1.885,1.573 2.198,1.771 0.313,0.198 10 false *a 5.344,1.573 5.656,1.771 0.313,0.198 10 false *a

*A	w/o Illumination	*B	w/ Illumination
*a	DLC3	-	-

Disconnect the connector and disengage the clamp to remove the No. 1 instrument panel under cover sub-assembly.

Hide Display 62312B 11.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

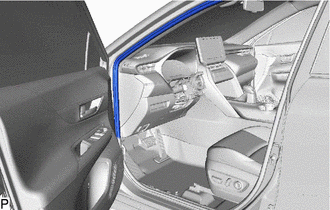

Disconnect the front door opening trim weatherstrip LH.

Hide Display 55318F 12.REMOVE NO. 2 INSTRUMENT SIDE PANEL

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

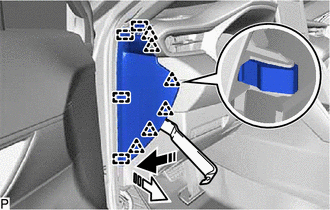

Using a moulding remover, pull the No. 2 instrument side panel in the direction indicated by the arrow (1) shown in the illustration to disengage the 6 clips.

Pull the No. 2 instrument side panel in the direction indicated by the arrow (2) shown in the illustration to disengage the 4 guides and remove it.

Hide Display 67913B 13.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62111C 14.REMOVE COWL SIDE TRIM BOARD RH

HINT:: Use the same procedure as for the LH side.

Hide Display 55607 15.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

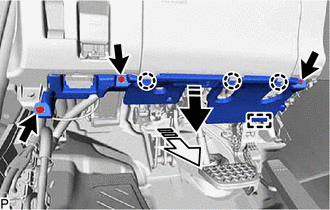

Pull the No. 2 instrument panel under cover sub-assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 4 claws.

Pull the No. 2 instrument panel under cover sub-assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove it.

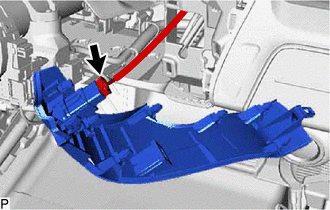

Disconnect the connector and disengage the clamp to remove the No. 2 instrument panel under cover sub-assembly.

0.083,0.083 0.458,0.323 0.375,0.24 12 false *A 3.583,0.094 3.958,0.333 0.375,0.24 12 false *B

w/o Illumination

w/ Illumination

Hide Display 55550 16.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

0.406,1.063 0.656,0.76 true 3.167,1.01 2.875,0.781 true 0.208,0.438 0.354,0.625 0.146,0.188 10 true A 3.188,0.448 3.333,0.635 0.146,0.188 10 true B 0.323,1.063 0.51,1.24 0.188,0.177 10 true *a 3.094,1.01 3.281,1.188 0.188,0.177 10 true *a

Stopper

Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows in the illustration and open the glove compartment door assembly until the stoppers are released.

2.073,0.969 2.646,0.969 true 2.646,0.885 2.844,1.031 0.198,0.146 10 true *1

*1	Glove Compartment Door Stopper Sub-assembly

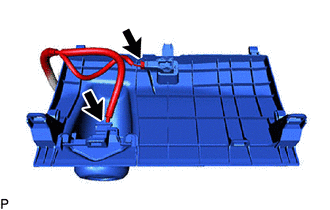

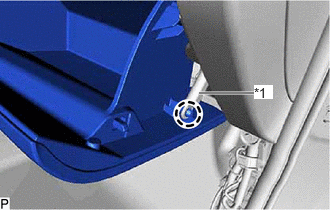

Disengage the claw to disconnect the glove compartment door stopper sub-assembly.

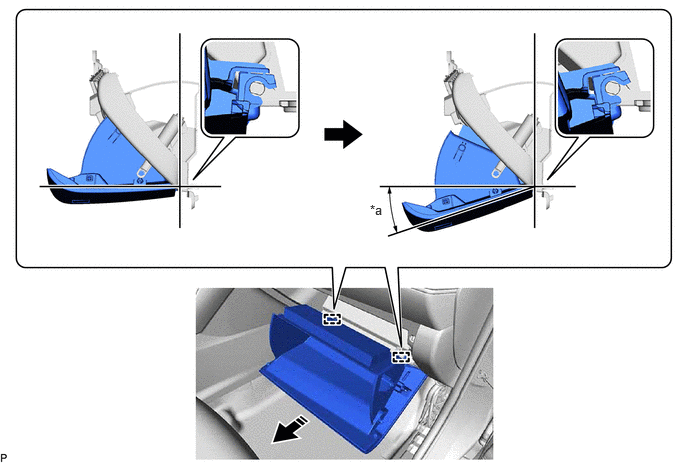

Open the glove compartment door assembly approximately 15° from the position shown in the illustration, then pull horizontally toward the rear of the vehicle to disengage the 2 hinges and remove the glove compartment door assembly.

3.854,2.104 4.167,2.302 0.313,0.198 10 false *a

*a	15°	-	-
	Remove in this Direction	-	-

NOTICE:: Pulling the glove compartment door assembly upward to remove it causes the hinges to deform. Be sure to pull out the glove compartment door assembly horizontally.

Hide Display 17.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202111,999999,_58,_111843,_0501136,RM100000001Z534,

Hide Display 55433B 18.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

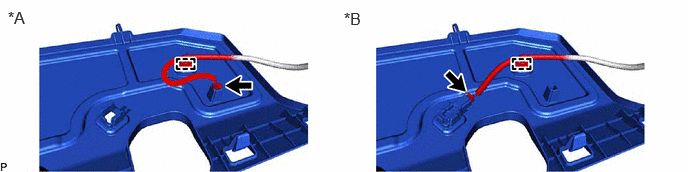

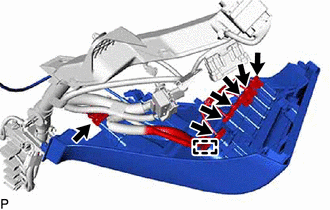

Disconnect the connector.

0.688,0.208 0.927,0.406 0.24,0.198 12 true *A 2.26,0.198 2.5,0.396 0.24,0.198 12 true *B

w/o Illumination

w/ Illumination

Remove the 5 bolts <B>.

0,0 0,0 false

Remove in this Direction

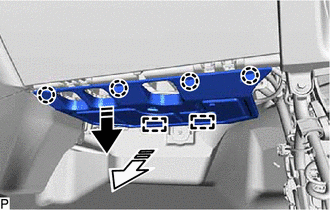

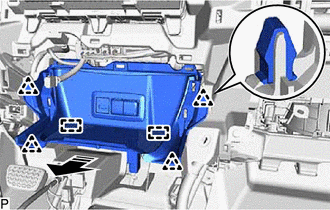

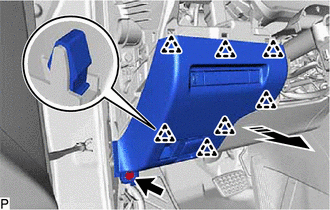

Disengage the 4 clips and 3 guides as shown in the illustration to remove the lower No. 2 instrument panel finish panel.

Hide Display 55474C 19.REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

0,0 0,0 false

Remove in this Direction

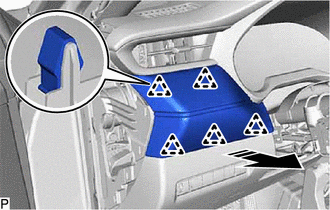

Disengage the 5 clips as shown in the illustration to remove the No. 1 instrument cluster finish panel garnish.

Hide Display 55545 20.REMOVE FUSE BOX OPENING COVER

0,0 0,0 false

Remove in this Direction

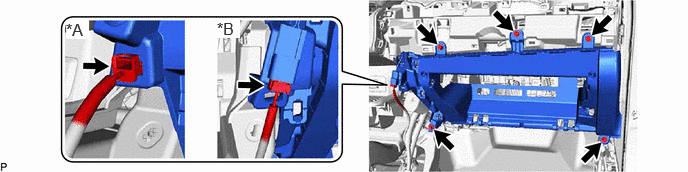

Remove the bolt <B>.

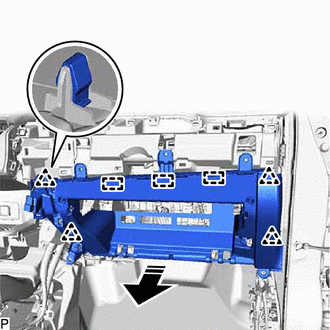

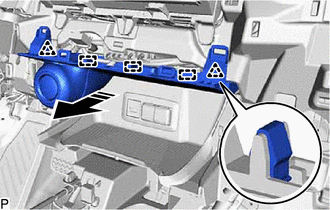

Disengage the 7 clips as shown in the illustration.

Disconnect each connector and disengage the clamp to remove the fuse box opening cover.

Hide Display 53601 21.DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Disengage the claw and 2 guides to disconnect the hood lock control lever sub-assembly.

Hide Display 77306 22.DISCONNECT FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Gasoline Model)

Disengage the claw and 2 guides to disconnect the fuel lid lock open lever sub-assembly.

Hide Display 55480D 23.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

0,0 0,0 false

Remove in this Direction

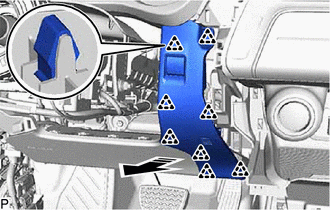

Disengage the 8 clips as shown in the illustration.

Disconnect the connector to remove the lower instrument panel finish panel assembly.

Hide Display 73900 24.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL202406,999999,_58,_111838,_0502522,RM100000002MS7V_01_0001,

Hide Display 55410C 25.REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

0,0 0,0 false

Remove in this Direction

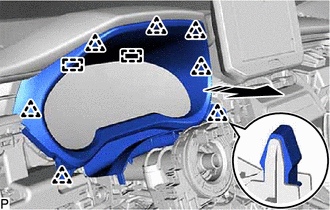

Disengage the 7 clips and 2 guides as shown in the illustration to remove the instrument cluster finish panel assembly.

Hide Display 83100 26.REMOVE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202406,999999,_58,_111835,_0501288,RM100000002MQF3_01_0005,

Hide Display 55422C 27.REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

0,0 0,0 false

	Protective Tape
	Side of Center Upper Instrument Cluster Finish Panel
	Push in this Direction
	Remove in this Direction

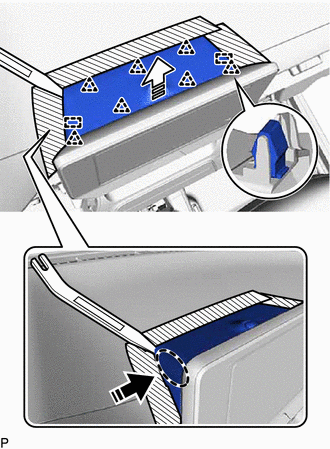

Apply protective tape to the area shown in the illustration.

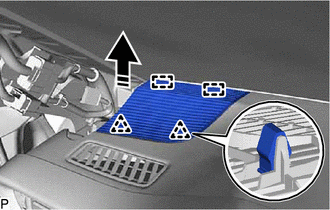

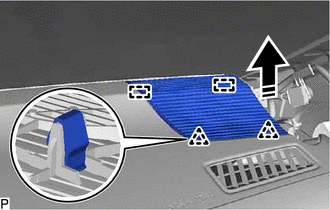

Using a moulding remover, disengage the 7 clips and 2 guides as shown in the illustration.

HINT:: Insert the moulding remover while pushing the side of the center upper instrument cluster finish panel.

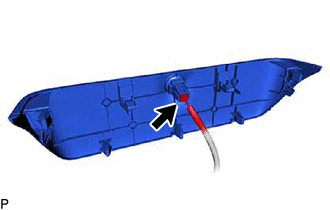

Disconnect the connector to remove the center upper instrument cluster finish panel.

Hide Display 28.REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL202303,999999,_56,_111822,_0500651,RM1000000029SFX_01_0142,

Hide Display 29.REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System)

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL202406,202409,_56,_111823,_0500514,RM100000002MYBP_01_0045,202409,999999,_56,_111823,_0500514,RM100000002OV73_01_0045,

Hide Display 55900 30.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL202111,999999,_58,_111841,_0499807,RM100000001Z0A5_01_0038,

Hide Display 58925B 31.REMOVE UPPER CONSOLE BOX INSULATOR

0,0 0,0 false

Remove in this Direction

Disengage the 2 clips and 3 guides as shown in the illustration.

Disconnect the 2 connectors to remove the upper console box insulator.

Hide Display 58813 32.REMOVE UPPER CONSOLE BOX (w/o Wireless Charger)

0,0 0,0 false

Remove in this Direction

Disengage the 4 clips and 2 guides as shown in the illustration.

1.875,1.927 2.188,2.125 0.313,0.198 12 false *A

*A	for GTMC Made

Disconnect each connector and disengage the clamp to remove the upper console box.

Hide Display 33.REMOVE WIRELESS CHARGER ASSEMBLY (w/ Wireless Charger)

Click hereVehicle Interior>POWER OUTLETS (INT)>WIRELESS CHARGER ASSEMBLY>REMOVAL202203,999999,_58,_111842,_0525420,RM10000000226MH_01_0148,

Hide Display 34.REMOVE TELEMATICS TRANSCEIVER WITH BRACKET

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL202203,999999,_56,_111824,_0500296,RM1000000022MZX_01_0132,

Hide Display 62212 35.REMOVE FRONT PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0009,

Hide Display 55525 36.REMOVE NO. 1 SPEAKER HOLE COVER

0,0 0,0 false

Remove in this Direction

Disengage the 2 clips and 2 guides as shown in the illustration to remove the No. 1 speaker hole cover.

Hide Display 86160J 37.REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for LH Side)

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>INSTRUMENT PANEL SPEAKER>REMOVAL202111,999999,_56,_111822,_0500657,RM100000001Z2XB_01_0082,

Hide Display 62211 38.REMOVE FRONT PILLAR GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 55535B 39.REMOVE NO. 2 SPEAKER HOLE COVER

0,0 0,0 false

Remove in this Direction

Disengage the 2 clips and 2 guides as shown in the illustration to remove the No. 2 speaker hole cover.

Hide Display 86160J 40.REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for RH Side)

HINT:: Use the same procedure as for the LH side.

Hide Display 41.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

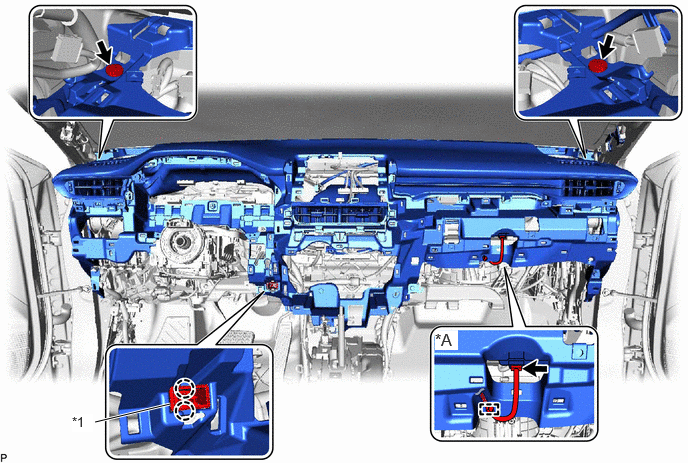

Remove the 2 clips.

0.99,4.396 1.771,4.208 true 0.75,4.313 0.969,4.5 0.219,0.188 10 true *1 4.531,3.438 4.771,3.646 0.24,0.208 12 true *A

*A	w/ Ion Generator	-	-
*1	Cooler (Room Temp. Sensor) Thermistor	-	-

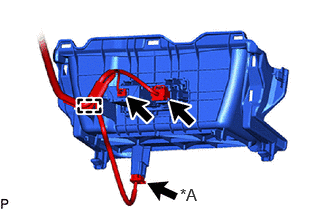

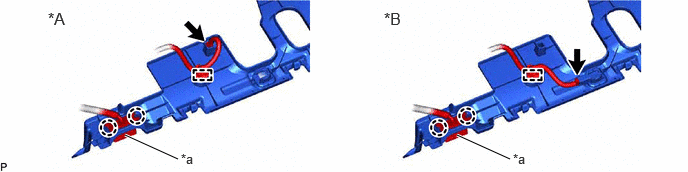

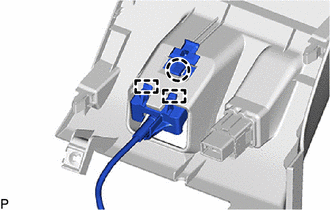

Disengage the 2 claws to disconnect the cooler (room temp. sensor) thermistor.

w/ Ion Generator:

Disengage the clamp.

ii.

Disconnect the connector.

4.25,0.219 4.438,0.396 0.188,0.177 10 true *c 3.958,0.51 4.146,0.688 0.188,0.177 10 true *e 4.052,1.021 4.24,1.198 0.188,0.177 10 true *f 5.198,4.479 5.385,4.656 0.188,0.177 10 true *a 6.24,4.469 6.427,4.646 0.188,0.177 10 true *a 0.417,2.927 0.604,3.104 0.188,0.177 10 true *b 2.354,1.813 2.542,1.99 0.188,0.177 10 true *d 2.427,3.219 2.615,3.396 0.188,0.177 10 true *b 3.469,2.698 3.656,2.875 0.188,0.177 10 true *b 4.333,3.385 4.521,3.563 0.188,0.177 10 true *b 6.5,2.833 6.688,3.01 0.188,0.177 10 true *b

*a	Bolt <A>	*b	Bolt <B>
*c	Bolt <D>	*d	Nut <E>
*e	Guide	*f	Clamp

Remove the bolt <D> and disengage the guide and clamp.

Remove the 2 bolts <A>.

Disconnect the airbag connector.

HINT:: Refer to How to Connect or Disconnect Airbag Connector.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202111,999999,_58,_111838,_0499714,RM100000001YZEU,

Remove the 5 bolts <B> and nut <E>.

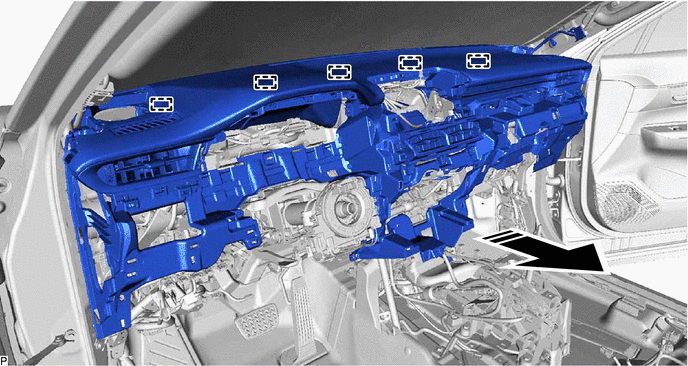

Disengage the 5 guides as shown in the illustration to remove the instrument panel safety pad sub-assembly.

0,0 0,0 false

Remove in this Direction

NOTICE:: ·

Do not damage the instrument panel safety pad sub-assembly.

·

Do not allow the wire harnesses to interfere with the surrounding parts.
