SUPPLEMENTAL RESTRAINT SYSTEMS STEERING PAD REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during horn button assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative auxiliary battery terminal	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative auxiliary battery terminal	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

for Gasoline Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202303,999999,_58,_111838,_0499714,RM100000002AQNJ,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202406,999999,_V1,_111780,_0504976,RM100000002MNUD,

Hide Display 58416K 2.REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)

Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>REMOVAL202406,999999,_V1,_112220,_0503322,RM100000002MSAY_01_0029,

Hide Display 65351A 3.REMOVE BATTERY HOLE COVER (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202406,999999,_58,_111843,_0501311,RM100000002MT6G_02_0243,

Hide Display 4.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for M20C-FKS, M20D-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>REMOVAL202406,999999,_V1,_112220,_0503321,RM100000002MSAX_01_0013,

for A25D-FXS, A25F-FXS: Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>REMOVAL202406,999999,_V1,_112220,_0503322,RM100000002MSAY_01_0013,

CAUTION:: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Hide Display 45186 5.REMOVE LOWER NO. 2 STEERING WHEEL COVER

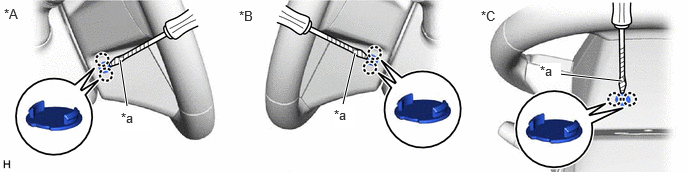

Using a screwdriver with its tip wrapped with protective tape, disengage each claw to remove the 3 lower No. 2 steering wheel covers.

HINT:: Be careful when disengaging the claws, as the lower No. 2 steering wheel cover may fly off.

1.323,1.104 1.25,0.625 true 3.698,0.552 3.573,1.083 true 5.833,0.771 6.479,0.844 true 0.042,0.063 0.354,0.219 0.313,0.156 10 false *A 2.49,0.083 2.771,0.323 0.281,0.24 10 false *B 5.01,0.083 5.229,0.313 0.219,0.229 10 false *C 1.26,1.146 1.563,1.375 0.302,0.229 10 true *a 3.479,1.115 3.698,1.323 0.219,0.208 10 true *a 5.625,0.656 5.844,0.854 0.219,0.198 10 true *a

*A	for LH Side	*B	for RH Side
*C	for Under Side	-	-
*a	Protective Tape	-	-

Hide Display 45130 6.REMOVE HORN BUTTON ASSEMBLY

CAUTION:

0,0 0,0 false

Deployment Side

When storing the horn button assembly, keep the airbag deployment side facing upward.

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

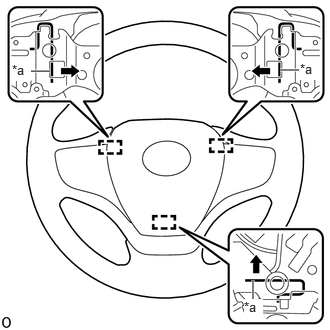

0.302,0.74 0.521,0.74 true 2.917,0.729 3.115,0.729 true 2.635,2.917 2.635,3.115 true 0.125,0.646 0.323,0.844 0.198,0.198 10 true *a 3.125,0.635 3.323,0.833 0.198,0.198 10 true *a 2.542,3.115 2.74,3.313 0.198,0.198 10 true *a

*a	Torsion Spring
	Push in this Direction

Using a screwdriver, push in the 3 torsion springs to disengage the 3 pins as shown in the illustration.

NOTICE:: Lightly hold the horn button assembly so that it does not fall.

HINT:: Insert the screwdriver from the installation holes for the lower No. 2 steering wheel cover.

Pull out the horn button assembly from the steering wheel assembly and hold the horn button assembly with one hand.

NOTICE:: When separating the horn button assembly, do not pull the airbag wire harness.

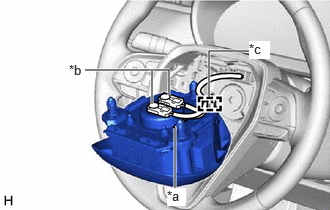

1.76,0.99 1.76,0.729 1.76,0.729 0.885,0.729 true 1.583,1.083 1.583,0.729 true 1.823,1.333 1.823,1.979 true 2.177,1.01 2.177,0.531 2.177,0.531 2.594,0.531 true 0.719,0.646 0.938,0.844 0.219,0.198 10 false *b 1.74,1.958 1.938,2.146 0.198,0.188 10 true *a 2.594,0.427 2.813,0.615 0.219,0.188 10 true *c

*a	Horn Connector
*b	Airbag Connector
*c	Wire Harness Clamp

Disconnect the horn connector from the horn button assembly.

Disconnect the 2 airbag connectors.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202111,999999,_58,_111838,_0499714,RM100000001YZEU,

Disengage the wire harness clamp to remove the horn button assembly.
