STOP AND START  BACKUP BOOST CONVERTER  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during eco run vehicle converter assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Front bumper assembly* Front television camera view adjustment Panoramic View Monitor System for GTMC Made:(Click here)
for SFTM Made:(Click here)
Replacement or removal and installation of 2 or more parts:
·

Front television camera assembly, radiator grille sub-assembly or front bumper assembly

·

Rear television camera assembly

·

Side television camera assembly LH or outer rear view mirror assembly LH

·

Side television camera assembly RH or outer rear view mirror assembly RH


Television camera view adjustment Panoramic View Monitor System

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide G92C0A 3.REMOVE ECO RUN VEHICLE CONVERTER ASSEMBLY

a.

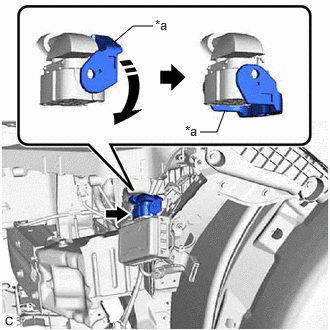

A497124C01
2.083,1.375 2.26,1.375 2.26,1.375 2.344,1.146 false 1.594,0.271 1.385,0.271 1.385,0.271 1.188,0.438 false 1.927,1.281 2.24,1.479 0.313,0.198 10 false *a 1.615,0.177 1.927,0.375 0.313,0.198 10 false *a
*a Lock Lever


Move the lock lever as shown in the illustration and disconnect the eco run vehicle converter assembly connector.


b.
A497125

Remove the bolt, nut and eco run vehicle converter assembly.


Hide F1334 4.REMOVE NO. 1 CONVERTER CONTROL BRACKET

a.

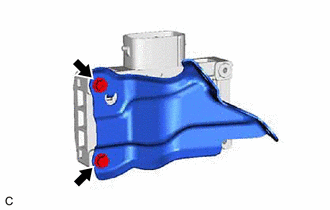

A497126

Remove the 2 bolts and No. 1 converter control bracket from the eco run vehicle converter assembly.
