SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  B009287  Left Side Restraints Sensor 2 Missing Message


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate DTC Output from Priority Test Mode / Check Mode
B009287 Left Side Restraints Sensor 2 Missing Message
·

The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to +B signal in the side collision sensor LH circuit (bus 2) for 2 seconds.

·

Floor side airbag sensor LH malfunction

·

Airbag sensor assembly malfunction


·

Harness or connector

·

Floor side airbag sensor LH

·

Airbag sensor assembly


Comes on SRS Airbag A Does not apply to test/check mode

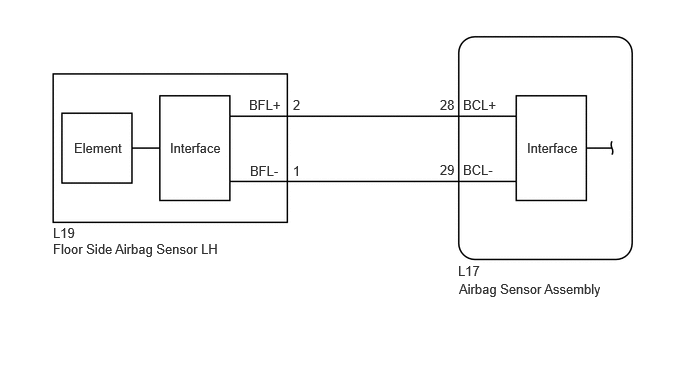

WIRING DIAGRAM

B473434E64
4.781,2.927 6.49,3.365 1.708,0.438 10 false Airbag Sensor Assembly 4.771,2.74 5.594,2.938 0.823,0.198 10 false L17 4.823,1.01 5.938,1.438 1.115,0.427 10 false BCL+ 5.49,1.458 6.063,1.865 0.573,0.406 10 false Interface 4.583,1.01 4.771,1.385 0.188,0.375 10 false 28 4.823,1.688 5.938,2.115 1.115,0.427 10 false BCL- 4.583,1.688 4.771,1.969 0.188,0.281 10 false 29 2.594,1.01 3.708,1.438 1.115,0.427 10 false BFL+ 2.604,1.698 3.719,2.125 1.115,0.427 10 false BFL- 3.052,1.01 4.167,1.438 1.115,0.427 10 false 2 3.052,1.698 4.167,2.125 1.115,0.427 10 false 1 1.771,1.458 2.344,1.875 0.573,0.417 10 false Interface 0.771,1.458 1.344,1.875 0.573,0.417 10 false Element 0.552,2.344 1.656,2.542 1.104,0.198 10 false L19 0.552,2.51 3.354,2.896 2.802,0.385 10 false Floor Side Airbag Sensor LH

CAUTION / NOTICE / HINT

PROCEDURE

1.CHECK CONNECTION OF CONNECTORS

Pre-procedure1

a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


Procedure1

c.

Check that the connectors are properly connected to the airbag sensor assembly and floor side airbag sensor LH.

OK:

The connectors are properly connected.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

2.CHECK CONNECTORS

NG

CONNECT CONNECTORS PROPERLY

2.CHECK CONNECTORS

Pre-procedure1

a.
C400941C07
1.594,1.094 1.594,0.719 false 0.635,0.583 0.948,0.74 0.313,0.156 10 false *1 2.531,0.896 2.844,1.052 0.313,0.156 10 false *2 1.521,1.125 1.833,1.281 0.313,0.156 10 false *3
*1 Floor Side Airbag Sensor LH
*2 Airbag Sensor Assembly
*3 Wire Harness


Disconnect the airbag sensor assembly connector.


b.

Disconnect the floor side airbag sensor LH connector.


Procedure1

c.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

3.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN THE CIRCUIT)
a.

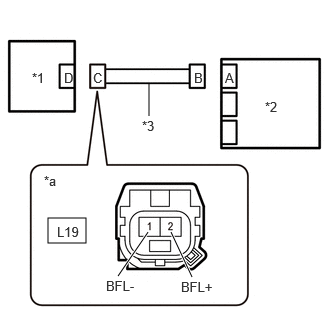

B582243C03
0.5,2.271 0.896,2.531 0.396,0.26 1.552,1.208 1.552,0.865 false 1.229,2.875 1.542,2.417 true 2,2.885 1.781,2.417 true 0.333,0.729 0.646,0.885 0.313,0.156 10 false *1 2.76,1.031 3.073,1.188 0.313,0.156 10 false *2 1.479,1.229 1.792,1.385 0.313,0.156 10 false *3 0.458,1.802 0.771,1.958 0.313,0.156 10 false *a 1.104,2.896 1.719,3.094 0.615,0.198 10 false BFL- 1.885,2.906 2.5,3.104 0.615,0.198 10 false BFL+ 0.594,2.333 1.052,2.531 0.458,0.198 10 false L19 2.344,0.729 2.5,0.927 0.156,0.198 10 false A 2.021,0.729 2.177,0.927 0.156,0.198 10 false B 0.969,0.729 1.125,0.927 0.156,0.198 10 false C 0.667,0.729 0.823,0.927 0.156,0.198 10 false D
*1 Floor Side Airbag Sensor LH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Floor Side Airbag Sensor LH)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(L19)Location & Routing

Click Connector(L19)Body>No. 2 Floor Wire>Floor Side Airbag Sensor LH

L19-2 (BFL+) - L19-1 (BFL-) Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)

Pre-procedure1

a.
E441554C03

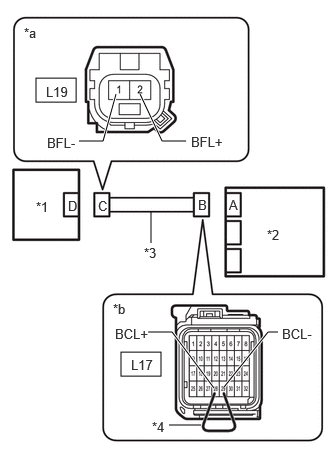

1.26,3.667 1.677,3.917 0.417,0.25 0.375,0.813 0.792,1.063 0.417,0.25 1.542,3.458 1.792,3.458 1.792,3.458 2.229,4.042 true 2.896,3.458 2.792,3.458 2.792,3.458 2.333,4.031 true 0.823,1.469 1.073,1.469 1.073,1.469 1.208,0.979 true 1.938,1.469 1.688,1.469 1.688,1.469 1.458,0.979 true 1.76,4.427 2.094,4.427 true 1.573,2.531 1.573,2.208 false 0.375,2.073 0.563,2.24 0.188,0.167 10 false *1 0.708,2.063 0.896,2.229 0.188,0.167 10 false D 1.021,2.063 1.208,2.229 0.188,0.167 10 false C 2.063,2.052 2.25,2.219 0.188,0.167 10 false B 2.385,2.052 2.573,2.219 0.188,0.167 10 false A 2.781,2.365 2.969,2.531 0.188,0.167 10 false *2 0.479,0.875 0.781,1.031 0.302,0.156 10 false L19 0.25,0.26 0.438,0.427 0.188,0.167 10 false *a 0.49,1.406 1,1.583 0.51,0.177 10 false BFL- 1.99,1.396 2.469,1.563 0.479,0.167 10 false BFL+ 2.938,3.396 3.271,3.583 0.333,0.188 10 false BCL- 1.198,3.396 1.583,3.552 0.385,0.156 10 false BCL+ 1.365,3.719 1.688,3.896 0.323,0.177 10 false L17 1.177,3.135 1.365,3.302 0.188,0.167 10 false *b 1.5,2.552 1.729,2.708 0.229,0.156 10 false *3 1.583,4.365 1.813,4.521 0.229,0.156 10 false *4
*1 Floor Side Airbag Sensor LH
*2 Airbag Sensor Assembly
*3 Wire Harness
*4 Service Wire
*a Front view of wire harness connector
(to Floor Side Airbag Sensor LH)
*b Front view of wire harness connector
(to Airbag Sensor Assembly)


Using a service wire, connect terminals 28 (BCL+) and 29 (BCL-) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.



Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(L19)Location & Routing

Click Connector(L19)Body>No. 2 Floor Wire>Floor Side Airbag Sensor LH

L19-2 (BFL+) - L19-1 (BFL-) Always Below 1 Ω


Result:
Proceed to
OK
NG



Post-procedure1

c.

Disconnect the service wire from connector B.



OK

5.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO GROUND IN THE CIRCUIT)
a.
B582243C03
0.5,2.271 0.896,2.531 0.396,0.26 1.552,1.208 1.552,0.865 false 1.229,2.875 1.542,2.417 true 2,2.885 1.781,2.417 true 0.333,0.729 0.646,0.885 0.313,0.156 10 false *1 2.76,1.031 3.073,1.188 0.313,0.156 10 false *2 1.479,1.229 1.792,1.385 0.313,0.156 10 false *3 0.458,1.802 0.771,1.958 0.313,0.156 10 false *a 1.104,2.896 1.719,3.094 0.615,0.198 10 false BFL- 1.885,2.906 2.5,3.104 0.615,0.198 10 false BFL+ 0.594,2.333 1.052,2.531 0.458,0.198 10 false L19 2.344,0.729 2.5,0.927 0.156,0.198 10 false A 2.021,0.729 2.177,0.927 0.156,0.198 10 false B 0.969,0.729 1.125,0.927 0.156,0.198 10 false C 0.667,0.729 0.823,0.927 0.156,0.198 10 false D
*1 Floor Side Airbag Sensor LH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Floor Side Airbag Sensor LH)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(L19)Location & Routing

Click Connector(L19)Body>No. 2 Floor Wire>Floor Side Airbag Sensor LH

L19-2 (BFL+) - Body ground Always 1 MΩ or higher
L19-1 (BFL-) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

6.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT TO +B IN THE CIRCUIT)

Pre-procedure1

a.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


b.

Turn the ignition switch to ON.


Procedure1

c.
B582243C03
0.5,2.271 0.896,2.531 0.396,0.26 1.552,1.208 1.552,0.865 false 1.229,2.875 1.542,2.417 true 2,2.885 1.781,2.417 true 0.333,0.729 0.646,0.885 0.313,0.156 10 false *1 2.76,1.031 3.073,1.188 0.313,0.156 10 false *2 1.479,1.229 1.792,1.385 0.313,0.156 10 false *3 0.458,1.802 0.771,1.958 0.313,0.156 10 false *a 1.104,2.896 1.719,3.094 0.615,0.198 10 false BFL- 1.885,2.906 2.5,3.104 0.615,0.198 10 false BFL+ 0.594,2.333 1.052,2.531 0.458,0.198 10 false L19 2.344,0.729 2.5,0.927 0.156,0.198 10 false A 2.021,0.729 2.177,0.927 0.156,0.198 10 false B 0.969,0.729 1.125,0.927 0.156,0.198 10 false C 0.667,0.729 0.823,0.927 0.156,0.198 10 false D
*1 Floor Side Airbag Sensor LH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Floor Side Airbag Sensor LH)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(L19)Location & Routing

Click Connector(L19)Body>No. 2 Floor Wire>Floor Side Airbag Sensor LH

L19-2 (BFL+) - Body ground Ignition switch ON Below 1 V
L19-1 (BFL-) - Body ground Ignition switch ON Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

d.

Turn the ignition switch off.


e.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.



OK

7.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CLEAR DTC

Pre-procedure1

a.
C400939C08
1.667,1.115 1.667,0.771 false 0.917,0.625 1.229,0.781 0.313,0.156 10 false *1 2.427,0.875 2.74,1.031 0.313,0.156 10 false *2 1.604,1.135 1.917,1.292 0.313,0.156 10 false *3
*1 Floor Side Airbag Sensor RH
*2 Airbag Sensor Assembly
*3 Wire Harness


Connect the airbag sensor assembly connector.


b.

Interchange the floor side airbag sensor LH with RH and connect the connectors to them.


c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

8.CHECK FLOOR SIDE AIRBAG SENSOR LH
8.CHECK FLOOR SIDE AIRBAG SENSOR LH

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B009287 is output A
B009787 is output B
B009287 and B009787 are not output C


HINT:

Codes other than DTCs B009287 and B009787 may be output at this time, but they are not related to this check.



Post-procedure1

c.

Turn the ignition switch off.


d.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


e.

Return the floor side airbag sensor RH and LH to their original positions and connect the connectors to them.



A

B

C
