SUPPLEMENTAL RESTRAINT SYSTEMS  SIDE AIRBAG SENSOR(for Center Pillar)  REMOVAL

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during floor side airbag sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative auxiliary battery terminal	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Disconnect cable from negative auxiliary battery terminal	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:

·

Items for which learning is completed by driving the vehicle

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System

·

Items for which learning is completed by operating the vehicle normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

for Gasoline Model:

·

Items for which learning is completed by driving the vehicle

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

·

Items for which learning is completed by operating the vehicle normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

·

Use the same procedure for the RH side and LH side.

·

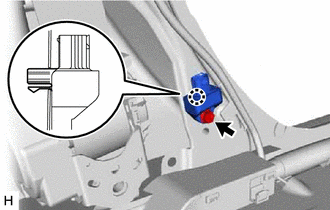

The following procedure is for the LH side.
