SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  B007212  Passenger Seat Belt Pretensioner "A" Deployment Control Circuit Short to Battery


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate DTC Output from Priority Test Mode / Check Mode
B007212 Passenger Seat Belt Pretensioner "A" Deployment Control Circuit Short to Battery
·

The airbag sensor assembly detects a short to +B in the front pretensioner squib RH circuit for 0.5 seconds.

·

Front seat outer belt assembly RH malfunction

·

Airbag sensor assembly malfunction


·

Harness or connector

·

Front seat outer belt assembly RH

·

Airbag sensor assembly


Comes on SRS Airbag A Applies to check mode

WIRING DIAGRAM

B585853E16
4.896,3.083 7.146,3.49 2.25,0.406 10 false Airbag Sensor Assembly 4.885,2.917 6.552,3.438 1.667,0.521 10 false K52 4.781,1.333 5.583,1.979 0.802,0.646 10 false 4 4.771,1.896 5.573,2.542 0.802,0.646 10 false 3 4.958,1.333 5.76,1.979 0.802,0.646 10 false PR+ 4.958,1.896 5.76,2.542 0.802,0.646 10 false PR- 0.875,2.417 2.542,2.938 1.667,0.521 10 false K20 0.875,2.583 2.292,2.979 1.417,0.396 10 false Front Seat Outer Belt Assembly RH 2.083,1.333 2.885,1.979 0.802,0.646 10 false 1 2.083,1.885 2.885,2.531 0.802,0.646 10 false 2 1.802,1.333 2.604,1.979 0.802,0.646 10 false R+ 1.833,1.885 2.635,2.531 0.802,0.646 10 false R-

CAUTION / NOTICE / HINT

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag sensor assembly, refer to work procedure.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



HINT:
·

To perform the simulation method, enter check mode (signal check) with the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>CHECK MODE PROCEDURE

·

Perform the simulation method while checking the Data List.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DATA LIST / ACTIVE TEST



PROCEDURE

1.CLEAR DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

c.

Turn the ignition switch off.



NEXT

2.CHECK DTC
2.CHECK DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B007212 is output A
B007212 is not output B



Post-procedure1

c.

None



A

3.CHECK CONNECTION OF CONNECTORS

B

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


3.CHECK CONNECTION OF CONNECTORS

Pre-procedure1

a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


Procedure1

c.

Check that the connectors are properly connected to the front seat outer belt assembly RH and airbag sensor assembly.

OK:

The connectors are properly connected.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

4.CHECK CONNECTORS

NG

CONNECT CONNECTORS PROPERLY

4.CHECK CONNECTORS

Pre-procedure1

a.
C400937C08
0.656,1.531 0.969,1.729 0.313,0.198 10 false *1 1.26,1.531 1.573,1.729 0.313,0.198 10 false *3 2.198,1.635 2.51,1.833 0.313,0.198 10 false *2
*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor Assembly
*3 Wire Harness


Disconnect the airbag sensor assembly connector.


b.

Disconnect the front seat outer belt assembly RH connector.


Procedure1

c.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.



d.

Check that the connectors are not loose, deformed or damaged.

OK:

The connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.



e.

Check that the short springs of the activation prevention mechanism of the wire harness connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.


Result:
Proceed to
OK
NG



Post-procedure1

f.

None



OK

5.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CLEAR DTC

Pre-procedure1

a.

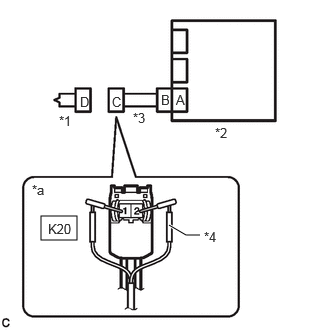

E441543C03
0.427,2.25 0.802,2.5 0.375,0.25 1.76,2.344 1.938,2.448 1.938,2.448 2.083,2.448 true 0.615,1.177 1.104,1.583 0.49,0.406 10 false *1 2.24,1.302 2.719,1.719 0.479,0.417 10 false *2 1.833,0.958 2.219,1.479 0.385,0.521 10 false A 1.677,0.958 2.167,1.438 0.49,0.479 10 false B 1.167,0.979 1.917,1.479 0.75,0.5 10 false C 0.833,0.979 1.615,1.375 0.781,0.396 10 false D 2.125,2.385 2.563,2.719 0.438,0.333 10 false *4 0.333,1.896 0.729,2.26 0.396,0.365 10 false *a 0.5,2.302 0.948,2.771 0.448,0.469 10 false K20 1.385,1.146 1.823,1.479 0.438,0.333 10 false *3
*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor Assembly
*3 Wire Harness
*4 SST
*a Front view of wire harness connector
(to Front Seat Outer Belt Assembly RH)


Connect the airbag sensor assembly connector.


b.

Connect SST (resistance: 2.1 Ω) to connector C.

CAUTION:

Never connect the tester to the front seat outer belt assembly RH for measurement, as this may lead to a serious injury due to pretensioner deployment.


NOTICE:
·

Do not forcibly insert SST into the terminals of the connector when connecting SST.

·

Insert SST straight into the terminals of the connector.




SST
09843-18061

c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

6.CHECK FRONT SEAT OUTER BELT ASSEMBLY RH
6.CHECK FRONT SEAT OUTER BELT ASSEMBLY RH

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B007212 is not output A
B007212 is output B


HINT:

Codes other than DTC B007212 may be output at this time, but they are not related to this check.



Post-procedure1

c.

Turn the ignition switch off.


d.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


e.

Disconnect SST from connector C.



A

REPLACE FRONT SEAT OUTER BELT ASSEMBLY RH

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>REMOVAL


B

7.CHECK HARNESS AND CONNECTOR
7.CHECK HARNESS AND CONNECTOR

Pre-procedure1

a.

Disconnect the airbag sensor assembly connector.


b.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


c.

Turn the ignition switch to ON.


Procedure1

d.

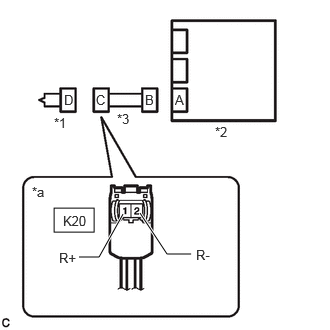

E441544C06
0.563,2.167 0.979,2.417 0.417,0.25 0.823,2.677 1.031,2.677 1.031,2.677 1.281,2.229 true 1.458,2.219 1.74,2.646 1.74,2.646 1.99,2.646 true 0.563,1.198 0.875,1.354 0.313,0.156 10 false *1 2.24,1.292 2.552,1.448 0.313,0.156 10 false *2 1.219,1.156 1.531,1.313 0.313,0.156 10 false *3 0.333,1.917 0.646,2.135 0.313,0.219 10 false *a 0.656,2.219 1.031,2.438 0.375,0.219 10 false K20 1.823,0.958 2.021,1.146 0.198,0.188 10 false A 1.51,0.958 1.708,1.167 0.198,0.208 10 false B 1,0.958 1.198,1.135 0.198,0.177 10 false C 0.667,0.958 0.823,1.135 0.156,0.177 10 false D 0.615,2.604 1.104,2.802 0.49,0.198 10 false R+ 2.042,2.573 2.417,2.75 0.375,0.177 10 false R-
*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Front Seat Outer Belt Assembly RH)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition

Click Location & Routing(K20)Location & Routing

Click Connector(K20)Body>Floor Wire>Front Seat Outer Belt Assembly RH

K20-1 (R+) - Body ground Ignition switch ON Below 1 V
K20-2 (R-) - Body ground Ignition switch ON Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

e.

Turn the ignition switch off.


f.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.



OK

8.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CLEAR DTC

Pre-procedure1

a.
C400942C08
0.896,1.531 1.208,1.688 0.313,0.156 10 false *1 2.24,1.594 2.552,1.75 0.313,0.156 10 false *2 1.365,1.521 1.677,1.677 0.313,0.156 10 false *3
*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor Assembly
*3 Wire Harness


Connect the airbag sensor assembly connector.


b.

Connect the front seat outer belt assembly RH connector.


c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

9.CHECK DTC
9.CHECK DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B007212 is not output A
B007212 is output B


HINT:

Codes other than DTC B007212 may be output at this time, but they are not related to this check.



Post-procedure1

c.

None



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL
