RM38N0EC _58 Vehicle Interior _111838 SUPPLEMENTAL RESTRAINT SYSTEMS _0499714 AIRBAG SYSTEM C

SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  B00201A  Left Side Airbag Deployment Control Circuit Resistance Below Threshold


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate DTC Output from Priority Test Mode / Check Mode
B00201A Left Side Airbag Deployment Control Circuit Resistance Below Threshold
·

The airbag sensor assembly detects a line short in the front side squib LH circuit for 2 seconds during the primary check.

·

Front seat airbag assembly LH malfunction

·

Airbag sensor assembly malfunction


·

Harness or connector

·

Front seat airbag assembly LH

·

Airbag sensor assembly


Comes on SRS Airbag A Applies to check mode

WIRING DIAGRAM

B585853E04
4.896,3.083 7.146,3.49 2.25,0.406 10 false Airbag Sensor Assembly 4.885,2.917 6.552,3.438 1.667,0.521 10 false L17 4.708,1.333 5.51,1.979 0.802,0.646 10 false 16 4.719,1.896 5.521,2.542 0.802,0.646 10 false 15 4.958,1.333 5.76,1.979 0.802,0.646 10 false SFL+ 4.958,1.896 5.76,2.542 0.802,0.646 10 false SFL- 0.875,2.406 2.542,2.927 1.667,0.521 10 false L46 0.875,2.573 2.021,2.99 1.146,0.417 10 false Front Seat Airbag Assembly LH 2.083,1.333 2.885,1.979 0.802,0.646 10 false 1 2.083,1.885 2.885,2.531 0.802,0.646 10 false 2 1.635,1.333 2.438,1.979 0.802,0.646 10 false SFL+ 1.656,1.885 2.458,2.531 0.802,0.646 10 false SFL-

CAUTION / NOTICE / HINT

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag sensor assembly, refer to work procedure.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



HINT:
·

To perform the simulation method, enter check mode (signal check) with the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>CHECK MODE PROCEDURE

·

Perform the simulation method while checking the Data List.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DATA LIST / ACTIVE TEST



PROCEDURE

1.CLEAR DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

c.

Turn the ignition switch off.



NEXT

2.CHECK DTC
2.CHECK DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B00201A is output A
B00201A is not output B



Post-procedure1

c.

None



A

3.CHECK CONNECTION OF CONNECTORS

B

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


3.CHECK CONNECTION OF CONNECTORS

Pre-procedure1

a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


Procedure1

c.

Check that the connectors are properly connected to the front seat airbag assembly LH and airbag sensor assembly.

OK:

The connectors are properly connected.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

4.CHECK CONNECTORS

NG

CONNECT CONNECTORS PROPERLY

4.CHECK CONNECTORS

Pre-procedure1

a.
C400945C08
0.667,0.917 0.979,1.073 0.313,0.156 10 false *1 2.198,1.646 2.51,1.802 0.313,0.156 10 false *2 1.25,0.927 1.563,1.083 0.313,0.156 10 false *3
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor Assembly
*3 Wire Harness


Disconnect the airbag sensor assembly connector.


b.

Disconnect the front seat airbag assembly LH connector.


Procedure1

c.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.



d.

Check that the short springs of the activation prevention mechanism of the wire harness connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.


Result:
Proceed to
OK
NG



Post-procedure1

e.

None



OK

5.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CLEAR DTC

Pre-procedure1

a.
C395624C15
0.438,2.167 0.833,2.427 0.396,0.26 2.104,2.583 2.281,2.729 2.281,2.729 2.448,2.729 true 0.604,0.49 0.927,0.76 0.323,0.271 10 false *1 2.458,1.229 2.833,1.552 0.375,0.323 10 false *2 0.417,1.667 0.75,2.083 0.333,0.417 10 false *a 2.49,2.667 2.823,3.083 0.333,0.417 10 false *4 0.521,2.24 0.948,2.604 0.427,0.365 10 false L46 2.031,0.25 2.406,0.573 0.375,0.323 10 false A 1.865,0.26 2.24,0.583 0.375,0.323 10 false B 1.115,0.26 1.49,0.583 0.375,0.323 10 false C 0.729,0.26 1.104,0.583 0.375,0.323 10 false D 1.448,0.438 1.771,0.708 0.323,0.271 10 false *3
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor Assembly
*3 Wire Harness
*4 SST
*a Front view of wire harness connector
(to Front Seat Airbag Assembly LH)


Connect the airbag sensor assembly connector.


b.

Connect SST (resistance: 2.1 Ω) to connector C.

CAUTION:

Never connect the tester to the front seat airbag assembly LH for measurement, as this may lead to a serious injury due to airbag deployment.


NOTICE:
·

Do not forcibly insert SST into the terminals of the connector when connecting SST.

·

Insert SST straight into the terminals of the connector.




SST
09843-18061

c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

6.CHECK FRONT SEAT AIRBAG ASSEMBLY LH
6.CHECK FRONT SEAT AIRBAG ASSEMBLY LH

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B00201A is not output A
B00201A is output B


HINT:

Codes other than DTC B00201A may be output at this time, but they are not related to this check.



Post-procedure1

c.

Turn the ignition switch off.


d.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


e.

Disconnect SST from connector C.



A

REPLACE FRONT SEAT AIRBAG ASSEMBLY LH

for SFTM Made: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for SFTM Made)>REMOVAL

for GTMC Made: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for GTMC Made)>REMOVAL


B

7.CHECK HARNESS AND CONNECTOR
7.CHECK HARNESS AND CONNECTOR

Pre-procedure1

a.

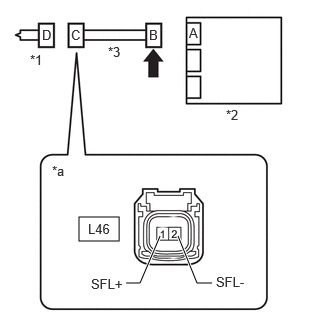

B585762C02
0.823,2.26 1.24,2.51 0.417,0.25 1.313,2.948 1.458,2.948 1.458,2.948 1.667,2.458 true 1.854,2.458 2.052,2.948 2.052,2.948 2.208,2.948 true 0.948,2.875 1.604,3.052 0.656,0.177 10 false SFL+ 2.25,2.854 2.802,3.063 0.552,0.208 10 false SFL- 0.917,2.302 1.281,2.49 0.365,0.188 10 false L46 0.313,0.542 0.625,0.729 0.313,0.188 10 false *1 1.125,0.458 1.438,0.646 0.313,0.188 10 false *3 2.354,1.115 2.667,1.302 0.313,0.188 10 false *2 1.969,0.26 2.135,0.438 0.167,0.177 10 false A 0.438,0.281 0.604,0.458 0.167,0.177 10 false D 0.74,0.281 0.906,0.458 0.167,0.177 10 false C 1.552,0.281 1.719,0.458 0.167,0.177 10 false B 0.542,1.698 0.854,1.885 0.313,0.188 10 false *a
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Front Seat Airbag Assembly LH)
V100135

Release the activation prevention mechanism


Disconnect the airbag sensor assembly connector.


b.

Release the activation prevention mechanism built into connector B.

HINT:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>SYSTEM DESCRIPTION



Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(L46)Location & Routing

Click Connector(L46)Seat>No. 2 Floor Wire>Front Seat Airbag Assembly LH

L46-1 (SFL+) - L46-2 (SFL-) Always 1 MΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

Restore the released activation prevention mechanism of connector B to its original condition.



OK

8.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CLEAR DTC

Pre-procedure1

a.
C400948C10
0.813,0.958 1.125,1.115 0.313,0.156 10 false *1 2.177,1.604 2.49,1.76 0.313,0.156 10 false *2 1.292,0.948 1.604,1.104 0.313,0.156 10 false *3
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor Assembly
*3 Wire Harness


Connect the airbag sensor assembly connector.


b.

Connect the front seat airbag assembly LH connector.


c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

9.CHECK DTC
9.CHECK DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B00201A is not output A
B00201A is output B


HINT:

Codes other than DTC B00201A may be output at this time, but they are not related to this check.



Post-procedure1

c.

None



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL
