RM38N0EC _56 Audio / Visual / Telematics _111822 AUDIO / VIDEO _0502892 AUDIO AND VISUAL SYSTEM C

AUDIO / VIDEO  AUDIO AND VISUAL SYSTEM  B157913  Voice Recognition Microphone1 Circuit Open


DESCRIPTION

The telephone microphone assembly is connected to the radio and display receiver assembly via voice recognition microphone 1 signal detection line.

This DTC is stored when the radio and display receiver assembly detects disconnection of telephone microphone assembly.

DTC No. Detection Item DTC Detection Condition Trouble Area
B157913 Voice Recognition Microphone1 Circuit Open Voice recognition microphone 1 terminal (SNS) disconnected
(2 trip detection logic)
·

Telephone microphone assembly

·

Radio and display receiver assembly

·

Harness or connector

·

Telematics transceiver

·

Map light assembly



WIRING DIAGRAM

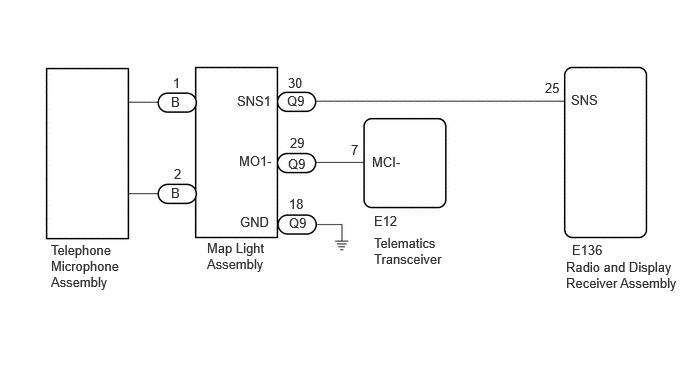

for SFTM Made
E510222E01
1.781,1.927 1.938,2.125 0.156,0.198 10 false B 2.156,2.5 2.833,2.906 0.677,0.406 10 false Map Light Assembly 3,1.625 3.313,1.823 0.313,0.198 10 false Q9 0.531,2.521 1.302,3.094 0.771,0.573 10 false Telephone Microphone Assembly 3.896,2.219 4.354,2.417 0.458,0.198 10 false E12 3.896,2.448 4.625,2.823 0.729,0.375 10 false Telematics Transceiver 5.958,2.521 6.573,2.719 0.615,0.198 10 false E136 5.896,2.698 7.115,3.052 1.219,0.354 10 false Radio and Display Receiver Assembly 2.469,0.969 2.885,1.146 0.417,0.177 10 false SNS1 2.49,1.594 2.896,1.792 0.406,0.198 10 false MO1- 3,0.781 3.313,0.979 0.313,0.198 10 false 30 3.021,1.406 3.333,1.604 0.313,0.198 10 false 29 3.656,1.479 3.833,1.667 0.177,0.188 10 false 7 3.875,1.604 4.25,1.802 0.375,0.198 10 false MCI- 5.677,0.833 5.99,1.031 0.313,0.198 10 false 25 5.948,0.958 6.406,1.156 0.458,0.198 10 false SNS 1.781,0.979 1.938,1.177 0.156,0.198 10 false B 2.99,0.969 3.302,1.167 0.313,0.198 10 false Q9 1.802,0.781 1.99,1.021 0.188,0.24 10 false 1 1.813,1.729 2.125,1.927 0.313,0.198 10 false 2 3.01,2.24 3.323,2.438 0.313,0.198 10 false Q9 3.01,2.042 3.323,2.24 0.313,0.198 10 false 18 2.5,2.229 2.906,2.427 0.406,0.198 10 false GND

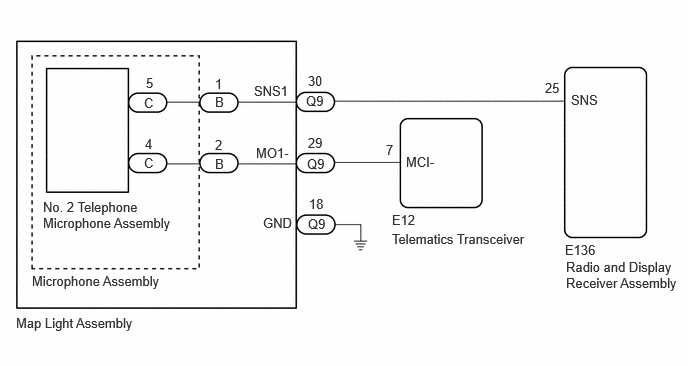

for GTMC Made
E514445E01
2.24,1.625 2.396,1.823 0.156,0.198 10 false B 0.167,3.281 2.063,3.583 1.896,0.302 10 false Map Light Assembly 3.198,1.625 3.51,1.823 0.313,0.198 10 false Q9 0.448,2.073 1.854,2.49 1.406,0.417 10 false No. 2 Telephone Microphone Assembly 4.083,2.208 4.542,2.406 0.458,0.198 10 false E12 4.083,2.406 5.51,2.781 1.427,0.375 10 false Telematics Transceiver 5.885,2.521 6.5,2.719 0.615,0.198 10 false E136 5.896,2.698 7.115,3.052 1.219,0.354 10 false Radio and Display Receiver Assembly 2.646,0.865 3.063,1.042 0.417,0.177 10 false SNS1 2.667,1.51 3.073,1.708 0.406,0.198 10 false MO1- 3.208,0.76 3.521,0.958 0.313,0.198 10 false 30 3.208,1.406 3.521,1.604 0.313,0.198 10 false 29 4.021,1.479 4.198,1.667 0.177,0.188 10 false 7 4.229,1.604 4.604,1.802 0.375,0.198 10 false MCI- 5.677,0.833 5.99,1.031 0.313,0.198 10 false 25 5.948,0.958 6.406,1.156 0.458,0.198 10 false SNS 2.24,0.979 2.396,1.177 0.156,0.198 10 false B 3.188,0.969 3.5,1.167 0.313,0.198 10 false Q9 1.521,0.781 1.708,1.021 0.188,0.24 10 false 5 1.51,1.417 1.823,1.615 0.313,0.198 10 false 4 3.208,2.25 3.521,2.448 0.313,0.198 10 false Q9 3.219,2.042 3.531,2.24 0.313,0.198 10 false 18 2.74,2.24 3.146,2.438 0.406,0.198 10 false GND 2.24,0.792 2.396,0.99 0.156,0.198 10 false 1 2.24,1.427 2.396,1.625 0.156,0.198 10 false 2 1.5,1.615 1.688,1.854 0.188,0.24 10 false C 1.5,0.99 1.688,1.229 0.188,0.24 10 false C 0.333,2.844 2.229,3.146 1.896,0.302 10 false Microphone Assembly

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the telematics transceiver, make sure to replace it with a new one (w/ Telematics Transceiver).

·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM>PRECAUTION



PROCEDURE

1.CHECK MODEL
a.

Choose the model to be inspected.

Result:
Result Proceed to
for SFTM Made A
for GTMC Made B




A

2.CHECK HARNESS AND CONNECTOR (MAP LIGHT ASSEMBLY - RADIO AND DISPLAY RECEIVER ASSEMBLY, TELEMATICS TRANSCEIVER)

B

6.CHECK HARNESS AND CONNECTOR (MAP LIGHT ASSEMBLY - RADIO AND DISPLAY RECEIVER ASSEMBLY, TELEMATICS TRANSCEIVER)
2.CHECK HARNESS AND CONNECTOR (MAP LIGHT ASSEMBLY - RADIO AND DISPLAY RECEIVER ASSEMBLY, TELEMATICS TRANSCEIVER)
a.

Disconnect the Q9 map light assembly connector.


b.

Disconnect the E136 radio and display receiver assembly connector.


c.

Disconnect the E12 telematics transceiver connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(Q9,E136,E12)Location & Routing

Click Connector(Q9)Body>Roof Wire>Map Light Assembly

Click Connector(E136)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assembly

Click Connector(E12)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Telephone Transceiver

Q9-30 (SNS1) - E136-25 (SNS) Always Below 1 Ω
Q9-29 (MO1-) - E12-7 (MCI-) Always Below 1 Ω
Q9-30 (SNS1) or E136-25 (SNS) - Body ground Always 10 kΩ or higher
Q9-29 (MO1-) or E12-7 (MCI-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.INSPECT TELEMATICS TRANSCEIVER (MCI-)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT TELEMATICS TRANSCEIVER (MCI-)
a.

With the telematics transceiver connector connected, disconnect the Q9 map light assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(Q9)Location & Routing

Click Connector(Q9)Body>Roof Wire>Map Light Assembly

Q9-29 (MO1-) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

4.INSPECT MAP LIGHT ASSEMBLY (SNS1, MO1-)

NG

REPLACE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


4.INSPECT MAP LIGHT ASSEMBLY (SNS1, MO1-)
a.

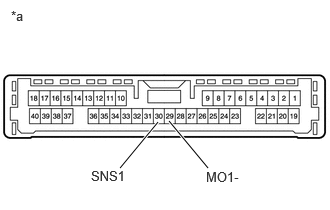

E510262C01
1.25,1.75 1.646,1.271 true 2.167,1.75 1.76,1.26 true 0.115,0.083 0.427,0.281 0.313,0.198 10 false *a 0.948,1.75 1.365,1.948 0.417,0.198 10 false SNS1 2.146,1.76 2.583,1.979 0.438,0.219 10 false MO1-
*a Component without harness connected
(Map Light Assembly)


Remove the map light assembly.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
30 (SNS1) - 29 (MO1-) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


NG

5.INSPECT MAP LIGHT ASSEMBLY
5.INSPECT MAP LIGHT ASSEMBLY
a.

Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

Disconnect the B telephone microphone assembly connector.


c.

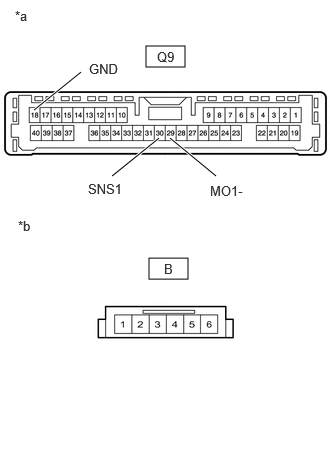

E510261C04
1.552,2.688 1.958,2.906 0.406,0.219 1.521,0.479 1.927,0.698 0.406,0.219 1.167,1.833 1.656,1.438 true 2.25,1.833 1.771,1.438 true 0.354,1.146 0.844,0.75 true 1.708,2.719 1.865,2.917 0.156,0.198 10 false B 1.635,0.51 1.948,0.708 0.313,0.198 10 false Q9 0.156,0.083 0.469,0.281 0.313,0.198 10 false *a 0.188,2.271 0.5,2.469 0.313,0.198 10 false *b 0.917,1.885 1.333,2.083 0.417,0.198 10 false SNS1 2.188,1.906 2.615,2.125 0.427,0.219 10 false MO1- 0.927,0.635 1.344,0.833 0.417,0.198 10 false GND
*a Component without harness connected
(Map Light Assembly (No. 1 Roof Wire Side))
*b Component without harness connected
(Map Light Assembly (Telephone Microphone Assembly Side))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(Q9)Location & Routing

Click Connector(Q9)Body>Roof Wire>Map Light Assembly

Q9-30 (SNS1) - B-1 Always Below 1 Ω
Q9-29 (MO1-) - B-2 Always Below 1 Ω
Q9-30 (SNS1) or B-1 - Q9-18 (GND) Always 10 kΩ or higher
Q9-29 (MO1-) or B-2 - Q9-18 (GND) Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE TELEPHONE MICROPHONE ASSEMBLY

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL


NG

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


6.CHECK HARNESS AND CONNECTOR (MAP LIGHT ASSEMBLY - RADIO AND DISPLAY RECEIVER ASSEMBLY, TELEMATICS TRANSCEIVER)
a.

Disconnect the Q9 map light assembly connector.


b.

Disconnect the E136 radio and display receiver assembly connector.


c.

Disconnect the E12 telematics transceiver connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(Q9,E136,E12)Location & Routing

Click Connector(Q9)Body>Roof Wire>Map Light Assembly

Click Connector(E136)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Navigation Receiver Assembly

Click Connector(E12)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Telephone Transceiver

Q9-30 (SNS1) - E136-25 (SNS) Always Below 1 Ω
Q9-29 (MO1-) - E12-7 (MCI-) Always Below 1 Ω
Q9-30 (SNS1) or E136-25 (SNS) - Body ground Always 10 kΩ or higher
Q9-29 (MO1-) or E12-7 (MCI-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

7.INSPECT TELEMATICS TRANSCEIVER (MCI-)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.INSPECT TELEMATICS TRANSCEIVER (MCI-)
a.

With the telematics transceiver connector connected, disconnect the Q9 map light assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(Q9)Location & Routing

Click Connector(Q9)Body>Roof Wire>Map Light Assembly

Q9-29 (MO1-) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

8.INSPECT MAP LIGHT ASSEMBLY (SNS1, MO1-)

NG

REPLACE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


8.INSPECT MAP LIGHT ASSEMBLY (SNS1, MO1-)
a.
E510262C01
1.25,1.75 1.646,1.271 true 2.167,1.75 1.76,1.26 true 0.115,0.083 0.427,0.281 0.313,0.198 10 false *a 0.948,1.75 1.365,1.948 0.417,0.198 10 false SNS1 2.146,1.76 2.583,1.979 0.438,0.219 10 false MO1-
*a Component without harness connected
(Map Light Assembly)


Remove the map light assembly.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
30 (SNS1) - 29 (MO1-) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


NG

9.INSPECT MAP LIGHT ASSEMBLY
9.INSPECT MAP LIGHT ASSEMBLY
a.

Remove the map light assembly.

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.

Disconnect the B telephone microphone assembly connector.


c.

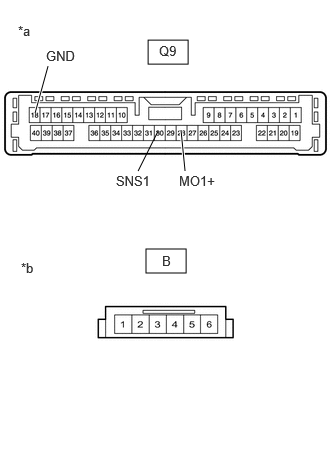

E510261C08
1.521,2.594 1.938,2.844 0.417,0.25 1.542,0.417 1.958,0.667 0.417,0.25 1.646,1.365 1.438,1.781 false 1.885,1.354 1.927,1.781 true 0.365,1.177 0.5,0.688 true 1.208,1.802 1.719,2.073 0.51,0.271 10 false SNS1 0.188,0.24 0.5,0.438 0.313,0.198 10 false *a 0.219,2.708 0.531,2.906 0.313,0.198 10 false *b 1.656,0.448 2.135,0.667 0.479,0.219 10 false Q9 1.688,2.635 2.167,2.854 0.479,0.219 10 false B 1.865,1.802 2.406,2.021 0.542,0.219 10 false MO1+ 0.479,0.5 1.021,0.719 0.542,0.219 10 false GND
*a Component without harness connected
(Map Light Assembly (No. 1 Roof Wire Side))
*b Component without harness connected
(Map Light Assembly (Telephone Microphone Assembly Side))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(Q9)Location & Routing

Click Connector(Q9)Body>Roof Wire>Map Light Assembly

Q9-30 (SNS1) - B-1 Always Below 1 Ω
Q9-29 (MO1-) - B-2 Always Below 1 Ω
Q9-30 (SNS1) or B-1 - Q9-18 (GND) Always 10 kΩ or higher
Q9-29 (MO1-) or B-2 - Q9-18 (GND) Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

10.INSPECT MICROPHONE ASSEMBLY

NG

REPLACE MAP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


10.INSPECT MICROPHONE ASSEMBLY
a.

Remove the microphone assembly.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL


b.

Disconnect the B microphone assembly connector.


c.

Disconnect the C telephone microphone assembly LH connector.


d.
E471027C08
1.458,0.146 1.906,0.458 0.448,0.313 1.49,1.844 1.938,2.156 0.448,0.313 0.375,0.823 0.688,1.021 0.313,0.198 10 false *a 0.375,2.531 0.688,2.729 0.313,0.198 10 false *b 1.646,0.219 1.958,0.417 0.313,0.198 10 false C 1.688,1.906 2,2.104 0.313,0.198 10 false B
*a Component without harness connected
(Telephone Microphone Assembly Side)
*b Component without harness connected
(Map Light Assembly Side)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
B-1 - C-5 Always Below 1 Ω
B-2 - C-4 Always Below 1 Ω
B-1 - C-4 Always 10 kΩ or higher
B-2 - C-5 Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 TELEPHONE MICROPHONE ASSEMBLY

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL


NG

REPLACE MICROPHONE ASSEMBLY

Click hereAudio / Visual / Telematics>TELEMATICS>TELEPHONE MICROPHONE ASSEMBLY>REMOVAL
