AUDIO / VIDEO  RADIO RECEIVER  REMOVAL

1. PRECAUTION

55422C 2.REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

3.REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

a.

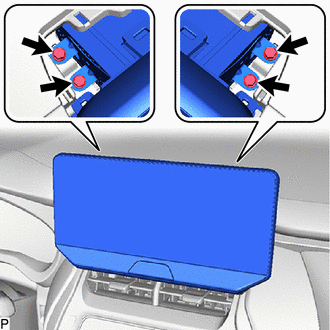

Remove the 4 bolts.

b.

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

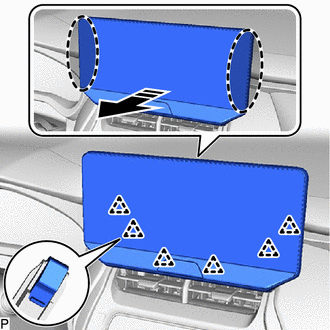

Disengage the 6 clips to remove the radio and display receiver assembly with bracket as shown in the illustration.

c.

Disconnect each connector.

86211J 4.REMOVE NO. 1 RADIO RECEIVER BRACKET

a.

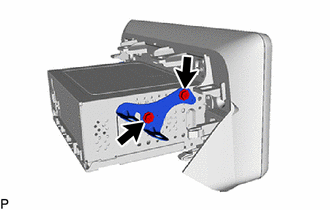

Remove the 2 screws and No. 1 radio receiver bracket.

86212C 5.REMOVE NO. 2 RADIO RECEIVER BRACKET

a.

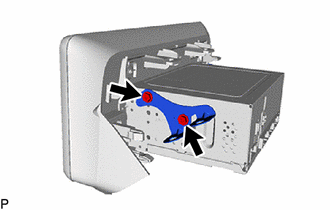

Remove the 2 screws and No. 2 radio receiver bracket.

84330 6.REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

86120L 7.REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY
