SEAT BELT OCCUPANT DETECTION SENSOR INSTALLATION
CAUTION / NOTICE / HINT
- CAUTION:
-
Wear protective gloves. Sharp areas on the parts may injure your hands
PROCEDURE
71511S
1.INSTALL OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)
- NOTICE:
- ·
Be careful not to damage the separate type front seat cushion cover.
·There is risk of injury.
- HINT:
-
When installing a separate type front seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

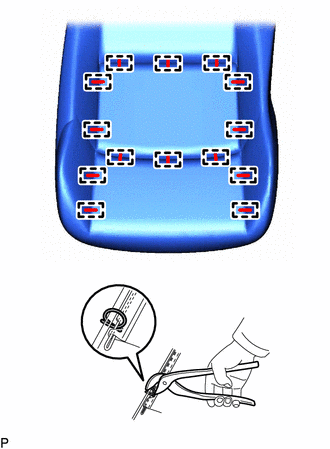

a. Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad (occupant detection sensor) with 14 new hog rings in the order shown in the illustration.
- NOTICE:
- ·
Be careful not to damage the separate type front seat cushion cover.
·Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.
82666M
2.INSTALL CONNECTOR HOLDER (for GTMC Made)
for Manual Seat: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Manual Seat)>REASSEMBLY202203,999999,_58,_111839,_0525810,RM10000000229GF_04_0054,
for Power Seat: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GL_06_0059,
3.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (for Manual Seat)
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>REASSEMBLY202111,999999,_58,_111839,_0501171,RM100000001Z57K_02_0163,
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Manual Seat)>REASSEMBLY202203,999999,_58,_111839,_0525810,RM10000000229GF_04_0014,
4.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (for Power Seat)
- HINT:
-
Use the same procedure as for the driver seat.
-
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0180,
-
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GL_06_0029,
5.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY (for Manual Seat)
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>REASSEMBLY202111,999999,_58,_111839,_0501171,RM100000001Z57K_02_0146,
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Manual Seat)>REASSEMBLY202203,999999,_58,_111839,_0525810,RM10000000229GF_04_0023,
6.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY (for Power Seat)
- HINT:
-
Use the same procedure as for the driver seat.
-
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0189,
-
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GL_06_0051,
71861
7.INSTALL FRONT SEAT INNER CUSHION SHIELD (for Manual Seat)
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>REASSEMBLY202111,999999,_58,_111839,_0501171,RM100000001Z57K_02_0184,
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Manual Seat)>REASSEMBLY202203,999999,_58,_111839,_0525810,RM10000000229GF_04_0042,
71861
8.INSTALL FRONT SEAT INNER CUSHION SHIELD (for Power Seat)
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0194,
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GL_06_0040,
71811D
9.INSTALL FRONT SEAT CUSHION SHIELD (for Manual Seat)
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>REASSEMBLY202111,999999,_58,_111839,_0501171,RM100000001Z57K_02_0151,
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Manual Seat)>REASSEMBLY202203,999999,_58,_111839,_0525810,RM10000000229GF_04_0043,
71811D
10.INSTALL FRONT SEAT CUSHION SHIELD (for Power Seat)
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0195,
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GL_06_0041,
72525A
11.INSTALL RECLINING ADJUSTER RELEASE HANDLE (for Manual Seat)
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>REASSEMBLY202111,999999,_58,_111839,_0501171,RM100000001Z57K_02_0153,
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Manual Seat)>REASSEMBLY202203,999999,_58,_111839,_0525810,RM10000000229GF_04_0030,
71867V
12.INSTALL FRONT SEAT FRONT CUSHION SHIELD (for Power Seat)
- HINT:
-
Use the same procedure as for the driver seat.
-
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0196,
-
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GL_06_0044,
71875A
13.INSTALL RECLINING ADJUSTER INSIDE COVER RH (for Manual Seat)
72551B
14.INSTALL RECLINING HINGE COVER (for GTMC Made for Manual Seat)
73240
15.INSTALL FRONT SEAT INNER BELT ASSEMBLY
for Manual Seat: Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)>INSTALLATION202203,999999,_58,_111840,_0501511,RM1000000022LKX_01_0035,
for Power Seat: Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)>INSTALLATION202203,999999,_58,_111840,_0501512,RM1000000022LKY_01_0085,
71074S
16.CONNECT SEPARATE TYPE FRONT SEATBACK COVER (for Manual Seat)
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>REASSEMBLY202111,999999,_58,_111839,_0501171,RM100000001Z57K_02_0157,
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Manual Seat)>REASSEMBLY202203,999999,_58,_111839,_0525810,RM10000000229GF_04_0033,
71074S
17.CONNECT SEPARATE TYPE FRONT SEATBACK COVER (for Power Seat)
- HINT:
-
Use the same procedure as for the driver seat.
-
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0198,
-
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202203,999999,_58,_111839,_0525811,RM10000000229GL_06_0045,
18.INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Manual Seat)>INSTALLATION202203,999999,_58,_111839,_0501171,RM1000000022JSR,
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Manual Seat)>INSTALLATION202203,999999,_58,_111839,_0525810,RM10000000229GD,
19.INSTALL FRONT SEAT ASSEMBLY (for Power Seat)
- HINT:
-
Use the same procedure as for the driver seat.
-
for SFTM Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>INSTALLATION202203,999999,_58,_111839,_0500775,RM1000000022JTB,
-
for GTMC Made: Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>INSTALLATION202203,999999,_58,_111839,_0525811,RM10000000229GK,
