RM38N0EC _58 Vehicle Interior _111839 SEAT _0525810 FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat) A

SEAT  FRONT SEAT ASSEMBLY(for GTMC Made Manual Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·
B401522

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION

·
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.



PROCEDURE

Hide 1.INSTALL FRONT SEAT ASSEMBLY RH

a.

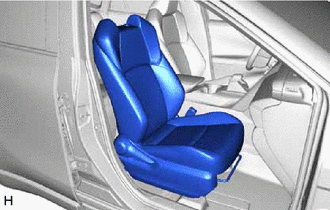

B588919

Place the front seat assembly RH in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



b.

Connect the front seat airbag assembly connector under the front seat assembly RH.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



c.

Connect each connector and engage each clamp under the front seat assembly RH.


d.

Temporarily install the front seat assembly RH with the 4 bolts.


e.

Operate the seat track adjusting handle and move the front seat assembly RH to the rearmost position.


f.

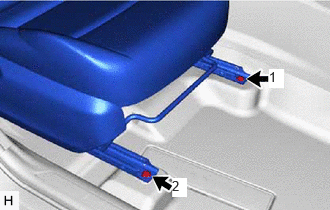

B588918N01
2.802,0.719 2.958,0.917 0.156,0.198 10 true 1 1.792,1.854 1.948,2.052 0.156,0.198 10 true 2

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly RH.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)

NOTICE:

Tighten the bolts in the order shown in the illustration.



g.

Operate the seat track adjusting handle and move the front seat assembly RH to the foremost position.


h.

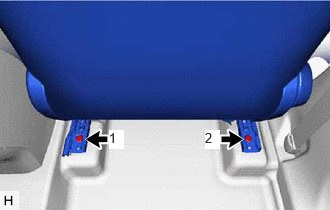

B588917N01
1.135,1.354 1.292,1.552 0.156,0.198 10 true 1 2.135,1.354 2.292,1.552 0.156,0.198 10 true 2

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the rear side of the front seat assembly RH.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)

NOTICE:

Tighten the bolts in the order shown in the illustration.



Hide 2.INSPECT SEAT SLIDE ADJUSTER LOCK

a.

While performing a sliding operation of the front seat assembly RH, check that the left and right adjusters move together smoothly and lock simultaneously. If the seat adjusters do not lock simultaneously, loosen the front seat assembly RH installation bolts and adjust the adjuster position.


Hide 72157F 3.INSTALL REAR INNER SEAT TRACK BRACKET COVER

a.

Operate the seat track adjusting handle and move the front seat assembly RH to the foremost position.


b.

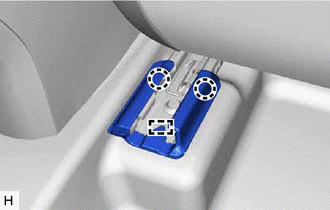

B588916

Engage the 2 claws and guide to install the rear inner seat track bracket cover.


Hide 72137T 4.INSTALL REAR OUTER SEAT TRACK BRACKET COVER

a.
B588915

Engage the 2 claws and guide to install the rear outer seat track bracket cover.


Hide 72127A 5.INSTALL FRONT INNER SEAT TRACK BRACKET COVER

a.

Operate the seat track adjusting handle and move the front seat assembly RH to the rearmost position.


b.

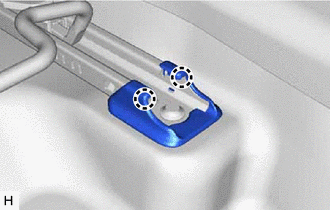

B588914

Engage the 2 claws to install the front inner seat track bracket cover.


Hide 72123A 6.INSTALL FRONT OUTER SEAT TRACK BRACKET COVER

a.

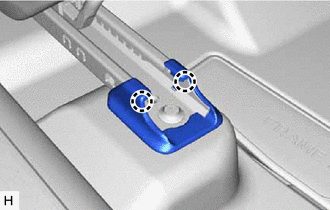

B588913

Engage the 2 claws to install the front outer seat track bracket cover.


Hide 71910A 7.INSTALL FRONT SEAT HEADREST ASSEMBLY

a.

Install the front seat headrest assembly to the front seat assembly RH.


Hide 11. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
