RM38N0EC _58 Vehicle Interior _111839 SEAT _0525811 FRONT SEAT ASSEMBLY(for GTMC Made Power Seat) A

SEAT  FRONT SEAT ASSEMBLY(for GTMC Made Power Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·
B401522

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION

·
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.



HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1.INSTALL FRONT SEAT ASSEMBLY

a.

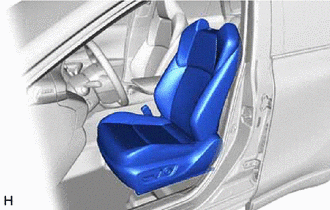

B588967

Place the front seat assembly in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



b.

Connect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



c.

Connect each connector and engage each clamp under the front seat assembly.


d.

Connect the cable to the negative (-) auxiliary battery terminal.

for M20C-FKS, M20D-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>INSTALLATION

for A25D-FXS, A25F-FXS: Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>INSTALLATION


e.

Temporarily install the front seat assembly with the 4 bolts.


f.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.


g.

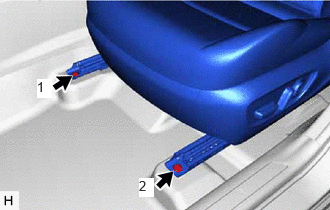

B588966N01
0.385,0.823 0.542,1.021 0.156,0.198 10 true 1 1.448,1.854 1.604,2.052 0.156,0.198 10 true 2

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)

NOTICE:

Tighten the bolts in the order shown in the illustration.



h.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the foremost position.


i.

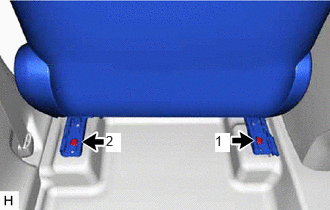

B588965N01
2.24,1.385 2.396,1.583 0.156,0.198 10 true 1 1.104,1.385 1.26,1.583 0.156,0.198 10 true 2

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the rear side of the front seat assembly.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)

NOTICE:

Tighten the bolts in the order shown in the illustration.



Hide 72158E 2.INSTALL REAR INNER SEAT TRACK BRACKET COVER

a.

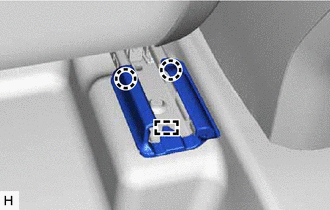

B588964

Engage the 2 claws and guide to install the rear inner seat track bracket cover.


Hide 72138N 3.INSTALL REAR OUTER SEAT TRACK BRACKET COVER

a.

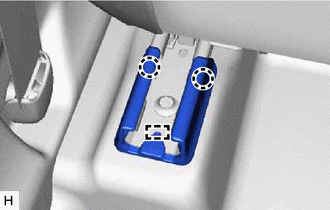

B588963

Engage the 2 claws and guide to install the rear outer seat track bracket cover.


Hide 72128A 4.INSTALL FRONT INNER SEAT TRACK BRACKET COVER

a.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.


b.

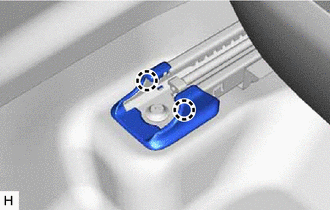

B588962

Engage the 2 claws to install the front inner seat track bracket cover.


Hide 72124 5.INSTALL FRONT OUTER SEAT TRACK BRACKET COVER

a.

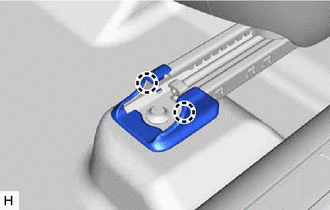

B588961

Engage the 2 claws to install the front outer seat track bracket cover.


Hide 71910A 6.INSTALL FRONT SEAT HEADREST ASSEMBLY

a.

Install the front seat headrest assembly to the front seat assembly.


Hide 9. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
