RM38N0EC _58 Vehicle Interior _111839 SEAT _0501171 FRONT SEAT ASSEMBLY(for SFTM Made Manual Seat) A

SEAT FRONT SEAT ASSEMBLY(for SFTM Made Manual Seat) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202203,202303,_58,_111838,_0499714,RM1000000022EO1,202303,999999,_58,_111838,_0499714,RM100000002AQNJ,

·

Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

Hide Display 1.INSTALL FRONT SEAT ASSEMBLY

Place the front seat assembly in the cabin.

NOTICE:: Be careful not to damage the vehicle body.

Connect the front seat airbag assembly connector under the front seat assembly.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202111,999999,_58,_111838,_0499714,RM100000001YZEU,

Connect each connector and engage each clamp under the front seat assembly.

Temporarily install the front seat assembly with the 4 bolts.

Operate the seat track adjusting handle and move the front seat assembly to the rearmost position.

2.99,0.979 3.146,1.177 0.156,0.198 10 true 1 1.438,1.958 1.594,2.156 0.156,0.198 10 true 2

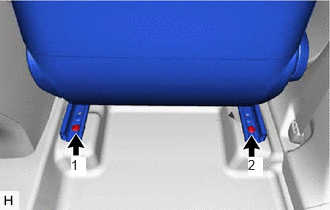

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly.

Torque:: 37 N*m (377 kgf*cm, 27 ft.*lbf)

NOTICE:: Tighten the bolts in the order shown in the illustration.

Operate the seat track adjusting handle and move the front seat assembly to the foremost position.

0.74,1.635 0.896,1.833 0.156,0.198 10 true 1 2.583,1.635 2.74,1.833 0.156,0.198 10 true 2

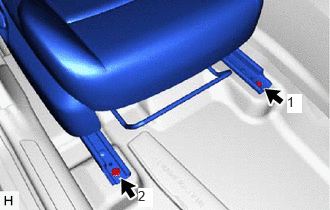

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the rear side of the front seat assembly.

Torque:: 37 N*m (377 kgf*cm, 27 ft.*lbf)

NOTICE:: Tighten the bolts in the order shown in the illustration.

Hide Display 2.INSPECT SEAT SLIDE ADJUSTER LOCK

While performing a sliding operation of the front seat assembly, check that the left and right adjusters move together smoothly and lock simultaneously. If the seat adjusters do not lock simultaneously, loosen the front seat assembly installation bolts and adjust the adjuster position.

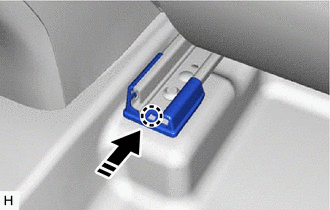

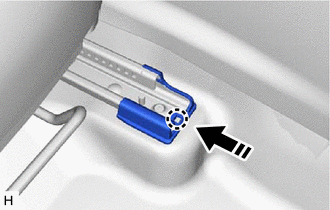

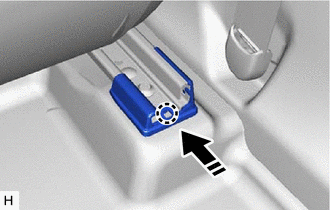

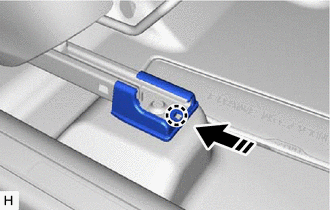

Hide Display 72137K 3.INSTALL REAR INNER FRONT SEAT TRACK COVER
