RM38N0EC _56 Audio / Visual / Telematics _111825 PARK ASSIST / MONITORING _0501857 PARKING SUPPORT BRAKE SYSTEM C

PARK ASSIST / MONITORING PARKING SUPPORT BRAKE SYSTEM U117787 Lost Communication with Side Obstacle Detection Control Module "A" (ch2) Missing Message U117887 Lost Communication with Side Obstacle Detection Control Module "B" (ch2) Missing Message

DESCRIPTION

This DTC is output when the clearance warning ECU assembly detects lost communication with the blind spot monitor sensor.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Memory	DTC Output from	Priority
U117787	Lost Communication with Side Obstacle Detection Control Module "A" (ch2) Missing Message	The clearance warning ECU assembly is unable to receive communication from the blind spot monitor sensor RH (A)	· Open or short in bus main line · Open or short in bus branch line · Open or short in wire harness connector (No. 22 CAN junction connector) · Clearance warning ECU assembly internal malfunction · Blind spot monitor sensor LH (B) internal malfunction · Blind spot monitor sensor LH (B) power source circuit malfunction · Blind spot monitor sensor RH (A) internal malfunction	○	Clearance Warning	A
U117887	Lost Communication with Side Obstacle Detection Control Module "B" (ch2) Missing Message	The clearance warning ECU assembly is unable to receive communication from the blind spot monitor sensor LH (B)	· Open or short in bus main line · Open or short in bus branch line · Open or short in wire harness connector (No. 22 CAN junction connector) · Clearance warning ECU assembly internal malfunction · Blind spot monitor sensor RH (A) internal malfunction · Blind spot monitor sensor RH (A) power source circuit malfunction · Blind spot monitor sensor LH (B) internal malfunction	○	Clearance Warning	A

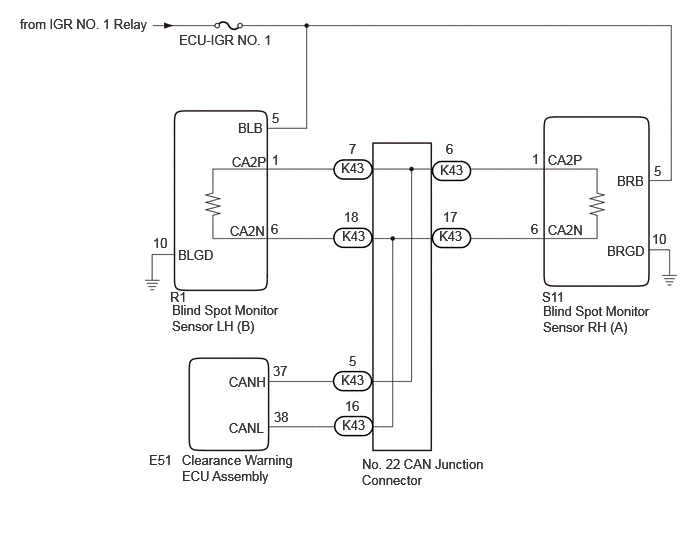

WIRING DIAGRAM

0.208,0.167 1.667,0.594 1.458,0.427 10 false from IGR NO. 1 Relay 1.865,0.333 3.031,0.698 1.167,0.365 10 false ECU-IGR NO. 1 2.833,1.583 2.99,1.781 0.156,0.198 10 false 1 2.833,1.146 2.99,1.344 0.156,0.198 10 false 5 2.385,3.896 2.979,4.156 0.594,0.26 10 false CANH 2.823,2.302 2.979,2.5 0.156,0.198 10 false 6 1.792,3.146 3.01,3.865 1.219,0.719 10 false Blind Spot Monitor Sensor LH (B) 1.771,3.01 2.229,3.271 0.458,0.26 10 false R1 5.656,3.156 6.854,3.917 1.198,0.76 10 false Blind Spot Monitor Sensor RH (A) 5.646,3.01 6.125,3.281 0.479,0.271 10 false S11 6.813,1.698 6.969,1.896 0.156,0.198 10 false 5 6.792,2.406 7.031,2.667 0.24,0.26 10 false 10 5.542,1.573 5.698,1.771 0.156,0.198 10 false 1 5.531,2.302 5.688,2.5 0.156,0.198 10 false 6 2.479,1.25 3.073,1.51 0.594,0.26 10 false BLB 1.854,2.573 2.448,2.833 0.594,0.26 10 false BLGD 6.323,2.531 6.917,2.792 0.594,0.26 10 false BRGD 5.708,1.583 6.302,1.844 0.594,0.26 10 false CA2P 6.427,1.802 7.021,2.063 0.594,0.26 10 false BRB 2.396,2.323 2.99,2.583 0.594,0.26 10 false CA2N 5.708,2.313 6.302,2.573 0.594,0.26 10 false CA2N 1.552,4.708 2.021,5.01 0.469,0.302 10 false E51 1.896,4.708 3.115,5.354 1.219,0.646 10 false Clearance Warning ECU Assembly 3.771,4.75 5.083,5.417 1.313,0.667 10 false No. 22 CAN Junction Connector 2.385,4.375 2.979,4.635 0.594,0.26 10 false CANL 2.854,4.26 3.385,4.552 0.531,0.292 10 false 38 2.844,3.781 3.229,4.094 0.385,0.313 10 false 37 3.563,4.344 3.917,4.563 0.354,0.219 10 false K43 3.635,1.469 3.792,1.667 0.156,0.198 10 false 7 4.615,2.177 4.885,2.375 0.271,0.198 10 false 17 4.646,1.469 4.802,1.667 0.156,0.198 10 false 6 3.635,3.677 3.792,3.875 0.156,0.198 10 false 5 3.594,4.146 3.865,4.344 0.271,0.198 10 false 16 2.417,1.604 3.01,1.865 0.594,0.26 10 false CA2P 3.583,2.177 3.854,2.375 0.271,0.198 10 false 18 1.594,2.448 1.813,2.656 0.219,0.208 10 false 10 3.552,3.875 3.906,4.094 0.354,0.219 10 false K43 3.563,2.375 3.917,2.594 0.354,0.219 10 false K43 3.552,1.667 3.906,1.885 0.354,0.219 10 false K43 4.583,1.688 4.938,1.906 0.354,0.219 10 false K43 4.573,2.375 4.927,2.594 0.354,0.219 10 false K43

CAUTION / NOTICE / HINT

NOTICE:: ·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION202111,999999,_V1,_111779,_0504973,RM100000001ZKRM,

HINT:: ·

Operating the ignition switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

·

Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.

PROCEDURE

1.CLEAR DTC

Clear the DTCs.

Body Electrical > Clearance Warning > Clear DTCs: 50002 438

Result:

Proceed to
NEXT

2.CHECK FOR DTC

Check for DTCs.

Body Electrical > Clearance Warning > Trouble Codes: 50001 438

Result:

Result	Proceed to
Only U117787 is output	A
Only U117887 is output	B
U117787 and U117887 are output	C
None of the above conditions are met	D

3.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - BODY GROUND)

5.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - BODY GROUND)

7.CHECK CAN BUS (CONFIRM PROBLEM SYMPTOMS)

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING202111,999999,_V1,_111779,_0504974,RM100000001ZKRQ,

3.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - BODY GROUND)

Pre-procedure1

Disconnect the connector of the blind spot monitor sensor RH (A).

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(S11)Location & Routingewd_type=routing;type=c;code=S11 Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RHewd_type=component;type=c;code=S11;pinno=10
S11-10 (BRGD) - Body ground	Always	Below 1 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(S11)Location & Routingewd_type=routing;type=c;code=S11

Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RHewd_type=component;type=c;code=S11;pinno=10

S11-10 (BRGD) - Body ground

Always

Below 1 Ω

Result:

Proceed to
OK
NG

Post-procedure1

None

4.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - POWER SOURCE)

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - POWER SOURCE)

Pre-procedure1

Disconnect the blind spot monitor sensor RH (A) connector.

Procedure1

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
Click Location & Routing(S11)Location & Routingewd_type=routing;type=c;code=S11 Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RHewd_type=component;type=c;code=S11;pinno=5
S11-5 (BRB) - Body ground	Ignition switch ON	11 to 14 V
S11-5 (BRB) - Body ground	Ignition switch off	Below 1 V

Tester Connection

Switch Condition

Specified Condition

Click Location & Routing(S11)Location & Routingewd_type=routing;type=c;code=S11

Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RHewd_type=component;type=c;code=S11;pinno=5

S11-5 (BRB) - Body ground

Ignition switch ON

11 to 14 V

S11-5 (BRB) - Body ground

Ignition switch off

Below 1 V

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE BLIND SPOT MONITOR SENSOR RH (A)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>BLIND SPOT MONITOR SENSOR>REMOVAL202111,202203,_56,_111825,_0500531,RM100000001Z2RO,202203,202303,_56,_111825,_0500531,RM1000000022RWF,202303,202406,_56,_111825,_0500531,RM100000002ANID,202406,999999,_56,_111825,_0500531,RM100000002MQQD,

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - BODY GROUND)

Pre-procedure1

Disconnect the connector of the blind spot monitor sensor LH (B) connector.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(R1)Location & Routingewd_type=routing;type=c;code=R1 Click Connector(R1)Body>Luggage Room Wire>Blind Spot Monitor Sensor LHewd_type=component;type=c;code=R1;pinno=10
R1-10 (BLGD) - Body ground	Always	Below 1 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(R1)Location & Routingewd_type=routing;type=c;code=R1

Click Connector(R1)Body>Luggage Room Wire>Blind Spot Monitor Sensor LHewd_type=component;type=c;code=R1;pinno=10

R1-10 (BLGD) - Body ground

Always

Below 1 Ω

Result:

Proceed to
OK
NG

Post-procedure1

None

6.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - POWER SOURCE)

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - POWER SOURCE)

Pre-procedure1

Disconnect the connector of the blind spot monitor sensor LH (B).

Procedure1

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
Click Location & Routing(R1)Location & Routingewd_type=routing;type=c;code=R1 Click Connector(R1)Body>Luggage Room Wire>Blind Spot Monitor Sensor LHewd_type=component;type=c;code=R1;pinno=5
R1-5 (BLB) - Body ground	Ignition Switch ON	11 to 14 V
R1-5 (BLB) - Body ground	Ignition switch off	Below 1 V

Tester Connection

Switch Condition

Specified Condition

Click Location & Routing(R1)Location & Routingewd_type=routing;type=c;code=R1

Click Connector(R1)Body>Luggage Room Wire>Blind Spot Monitor Sensor LHewd_type=component;type=c;code=R1;pinno=5

R1-5 (BLB) - Body ground

Ignition Switch ON

11 to 14 V

R1-5 (BLB) - Body ground

Ignition switch off

Below 1 V

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE BLIND SPOT MONITOR SENSOR LH (B)

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CHECK CAN BUS (CONFIRM PROBLEM SYMPTOMS)

Pre-procedure1

Turn the ignition switch off.

Disconnect the cable from the negative (-) auxiliary battery terminal.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E51,E58)Location & Routingewd_type=routing;type=c,c;code=E51,E58 Click Connector(E51)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Clearance Warning ECU Assemblyewd_type=component;type=c;code=E51;pinno=37,38 Click Connector(E58)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E51-37 (CANH) - E51-38 (CANL)	Disconnect cable from negative (-) auxiliary battery terminal	54 to 69 Ω
E51-37 (CANH) - E51-38 (CANL)	Disconnect cable from negative (-) auxiliary battery terminal	54 to 69 Ω
E51-37 (CANH) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
E51-38 (CANL) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
E51-37 (CANH) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher
E51-38 (CANL) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher

Result:

Result	Proceed to
E51-37 (CANH) - E51-38 (CANL) is more than or equal to 70 Ω	A
E51-37 (CANH) - E51-38 (CANL) is less than or equal to 54 Ω	B
E51-37 (CANH) - Body ground is less than or equal to 200 Ω	C
E51-38 (CANL) - Body ground is less than or equal to 200 Ω	D
E51-37 (CANH) - E58-16 (BAT) is less than or equal to 6 kΩ	E
E51-38 (CANL) - E58-16 (BAT) is less than or equal to 6 kΩ	F
None of the above conditions are met	G

Post-procedure1

None

8.CHECK FOR OPEN IN CAN BUS WIRE (NO. 22 JUNCTION CONNECTOR)

12.CHECK FOR SHORT IN CAN BUS WIRES (NO. 22 JUNCTION CONNECTOR)

16.CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR LH (B) CONNECTION MAIN LINE)

22.CLEAR DTCS

8.CHECK FOR OPEN IN CAN BUS WIRE (NO. 22 JUNCTION CONNECTOR)

Pre-procedure1

Disconnect the K43 No. 22 CAN junction connector.

3.177,0.396 3.583,0.646 0.406,0.25 3.229,1.479 2.75,0.729 true 3.24,1.74 2.938,2.198 true 3.604,1.74 3.906,2.281 true 3.406,1.729 3.427,2.25 true 3.417,1.49 3.854,0.75 true 4.719,0.958 3.604,1.49 true 0.083,0.063 0.396,0.26 0.313,0.198 10 false *a 3.802,0.583 4.469,0.823 0.667,0.24 10 false CANH*c 2.5,2.219 3.167,2.458 0.667,0.24 10 false CANL*b 2.229,0.573 2.896,0.813 0.667,0.24 10 false CANH*b 3.885,2.333 4.552,2.573 0.667,0.24 10 false CANL*d 3.146,2.302 3.813,2.542 0.667,0.24 10 false CANL*c 4.771,0.875 5.438,1.115 0.667,0.24 10 false CANH*d 3.24,0.438 3.74,0.677 0.5,0.24 10 false K43

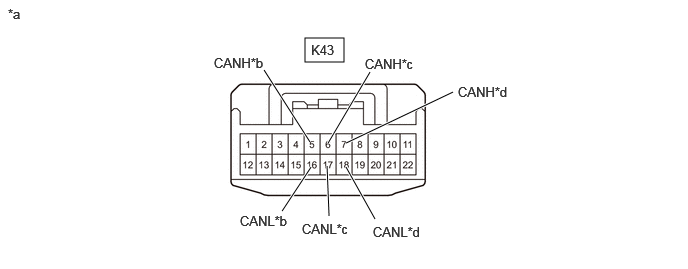

*a	Front view of wire harness connector (to No. 22 CAN Junction Connector)	*b	to Clearance Warning ECU Assembly CAN Wire
*c	to Blind Spot Monitor Sensor RH (A) CAN Main Wire	*d	to Blind Spot Monitor Sensor LH (B) CAN Main Wire

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(K43)Location & Routingewd_type=routing;type=c;code=K43 Click Connector(K43)Instrument Panel>Floor Wire>No. 22 Junction Connectorewd_type=component;type=c;code=K43;pinno=5,16,7,18,6,17
K43-5 (CANH) - K43-16 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
K43-7 (CANH) - K43-18 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
K43-6 (CANH) - K43-17 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

Result:

Result	Proceed to
OK	A
NG (to blind spot monitor sensor LH (B) CAN main wire)	B
NG (to blind spot monitor sensor RH (A) CAN main wire)	C
NG (to clearance warning ECU assembly CAN wire)	D

Post-procedure1

None

REPLACE NO. 22 CAN JUNCTION CONNECTOR

9.CHECK FOR OPEN IN CAN BUS MAIN WIRE (BLIND SPOT MONITOR SENSOR LH (B))

10.CHECK FOR OPEN IN CAN BUS MAIN WIRE (BLIND SPOT MONITOR SENSOR RH (A))

11.CHECK FOR OPEN IN CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY)

9.CHECK FOR OPEN IN CAN BUS MAIN WIRE (BLIND SPOT MONITOR SENSOR LH (B))

Pre-procedure1

Reconnect the K43 No. 22 CAN junction connector.

Disconnect the R1 blind spot monitor sensor LH (B) connector.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(R1)Location & Routingewd_type=routing;type=c;code=R1 Click Connector(R1)Body>Luggage Room Wire>Blind Spot Monitor Sensor LHewd_type=component;type=c;code=R1;pinno=1,6
R1-1 (CA2P) - R1-6 (CA2N)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(R1)Location & Routingewd_type=routing;type=c;code=R1

Click Connector(R1)Body>Luggage Room Wire>Blind Spot Monitor Sensor LHewd_type=component;type=c;code=R1;pinno=1,6

R1-1 (CA2P) - R1-6 (CA2N)

Cable disconnected from negative (-) auxiliary battery terminal

108 to 132 Ω

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE BLIND SPOT MONITOR SENSOR LH (B)

REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - NO. 22 CAN JUNCTION CONNECTOR)

10.CHECK FOR OPEN IN CAN BUS MAIN WIRE (BLIND SPOT MONITOR SENSOR RH (A))

Pre-procedure1

Reconnect the K43 No. 22 CAN junction connector.

Disconnect the S11 blind spot monitor sensor RH (A) connector.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(S11)Location & Routingewd_type=routing;type=c;code=S11 Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RHewd_type=component;type=c;code=S11;pinno=1,6
S11-1 (CA2P) - S11-6 (CA2N)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(S11)Location & Routingewd_type=routing;type=c;code=S11

Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RHewd_type=component;type=c;code=S11;pinno=1,6

S11-1 (CA2P) - S11-6 (CA2N)

Cable disconnected from negative (-) auxiliary battery terminal

108 to 132 Ω

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE BLIND SPOT MONITOR SENSOR RH (A)

REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - NO. 22 CAN JUNCTION CONNECTOR)

11.CHECK FOR OPEN IN CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY)

Pre-procedure1

Reconnect the K43 No. 22 CAN junction connector.

Disconnect the E51 clearance warning ECU assembly connector.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E51)Location & Routingewd_type=routing;type=c;code=E51 Click Connector(E51)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Clearance Warning ECU Assemblyewd_type=component;type=c;code=E51;pinno=37,38
E51-37 (CANH) - E51-38 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(E51)Location & Routingewd_type=routing;type=c;code=E51

Click Connector(E51)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Clearance Warning ECU Assemblyewd_type=component;type=c;code=E51;pinno=37,38

E51-37 (CANH) - E51-38 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

54 to 69 Ω

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE CLEARANCE WARNING ECU ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>CLEARANCE WARNING ECU>REMOVAL202111,999999,_56,_111825,_0500520,RM100000001Z2QT,

REPAIR OR REPLACE CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY - NO. 22 CAN JUNCTION CONNECTOR)

12.CHECK FOR SHORT IN CAN BUS WIRES (NO. 22 JUNCTION CONNECTOR)

Pre-procedure1

Disconnect the K43 No. 22 CAN junction connector.

*a	Front view of wire harness connector (to No. 22 CAN Junction Connector)	*b	to Clearance Warning ECU Assembly CAN Wire
*c	to Blind Spot Monitor Sensor RH (A) CAN Main Wire	*d	to Blind Spot Monitor Sensor LH (B) CAN Main Wire

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(K43)Location & Routingewd_type=routing;type=c;code=K43 Click Connector(K43)Instrument Panel>Floor Wire>No. 22 Junction Connectorewd_type=component;type=c;code=K43;pinno=5,16,7,18,6,17
K43-5 (CANH) - K43-16 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
K43-7 (CANH) - K43-18 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
K43-6 (CANH) - K43-17 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

Result:

Result	Proceed to
OK	A
NG (to blind spot monitor sensor LH (B) CAN main wire)	B
NG (to blind spot monitor sensor RH (A) CAN main wire)	C
NG (to clearance warning ECU assembly CAN wire)	D

Post-procedure1

None

REPLACE NO. 22 CAN JUNCTION CONNECTOR

13.CHECK FOR SHORT IN CAN BUS WIRES (BLIND SPOT MONITOR SENSOR LH (B))

14.CHECK FOR SHORT IN CAN BUS WIRES (BLIND SPOT MONITOR SENSOR RH (A))

15.CHECK FOR SHORT IN CAN BUS WIRES (CLEARANCE WARNING ECU ASSEMBLY)

13.CHECK FOR SHORT IN CAN BUS WIRES (BLIND SPOT MONITOR SENSOR LH (B))

Pre-procedure1

Reconnect the K43 No. 22 CAN junction connector.

Disconnect the R1 blind spot monitor sensor LH (B) connector.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(R1)Location & Routingewd_type=routing;type=c;code=R1 Click Connector(R1)Body>Luggage Room Wire>Blind Spot Monitor Sensor LHewd_type=component;type=c;code=R1;pinno=1,6
R1-1 (CA2P) - R1-6 (CA2N)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(R1)Location & Routingewd_type=routing;type=c;code=R1

Click Connector(R1)Body>Luggage Room Wire>Blind Spot Monitor Sensor LHewd_type=component;type=c;code=R1;pinno=1,6

R1-1 (CA2P) - R1-6 (CA2N)

Cable disconnected from negative (-) auxiliary battery terminal

108 to 132 Ω

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE BLIND SPOT MONITOR SENSOR LH (B)

REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - NO. 22 CAN JUNCTION CONNECTOR)

14.CHECK FOR SHORT IN CAN BUS WIRES (BLIND SPOT MONITOR SENSOR RH (A))

Pre-procedure1

Reconnect the K43 No. 22 CAN junction connector.

Disconnect the S11 blind spot monitor sensor RH (A) connector.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(S11)Location & Routingewd_type=routing;type=c;code=S11 Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RHewd_type=component;type=c;code=S11;pinno=1,6
S11-1 (CA2P) - S11-6 (CA2N)	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(S11)Location & Routingewd_type=routing;type=c;code=S11

Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RHewd_type=component;type=c;code=S11;pinno=1,6

S11-1 (CA2P) - S11-6 (CA2N)

Cable disconnected from negative (-) auxiliary battery terminal

108 to 132 Ω

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE BLIND SPOT MONITOR SENSOR RH (A)

REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - NO. 22 CAN JUNCTION CONNECTOR)

15.CHECK FOR SHORT IN CAN BUS WIRES (CLEARANCE WARNING ECU ASSEMBLY)

Pre-procedure1

Reconnect the K43 No. 22 CAN junction connector.

Disconnect the E51 clearance warning ECU assembly connector.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E51)Location & Routingewd_type=routing;type=c;code=E51 Click Connector(E51)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Clearance Warning ECU Assemblyewd_type=component;type=c;code=E51;pinno=37,38
E51-37 (CANH) - E51-38 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

Tester Connection

Condition

Specified Condition

Click Location & Routing(E51)Location & Routingewd_type=routing;type=c;code=E51

Click Connector(E51)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Clearance Warning ECU Assemblyewd_type=component;type=c;code=E51;pinno=37,38

E51-37 (CANH) - E51-38 (CANL)

Cable disconnected from negative (-) auxiliary battery terminal

54 to 69 Ω

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE CLEARANCE WARNING ECU ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>CLEARANCE WARNING ECU>REMOVAL202111,999999,_56,_111825,_0500520,RM100000001Z2QT,

REPAIR OR REPLACE CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY - NO. 22 CAN JUNCTION CONNECTOR)

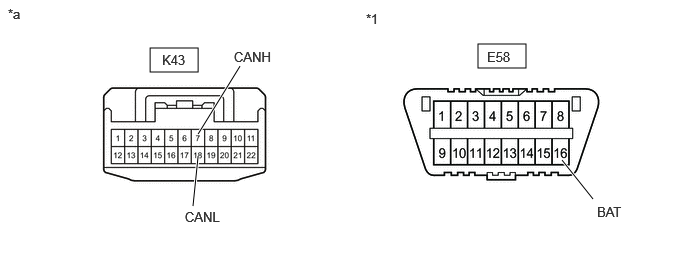

16.CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR LH (B) CONNECTION MAIN LINE)

Pre-procedure1

Disconnect the K43 No. 22 CAN junction connector.

1.563,0.5 2.063,0.75 0.5,0.25 4.979,0.458 5.479,0.708 0.5,0.25 2.01,2.146 2.063,1.625 true 2.5,0.688 2.063,1.396 true 6.177,2.073 5.854,1.667 true 0.083,0.063 0.396,0.26 0.313,0.198 10 false *a 1.688,0.542 2.188,0.781 0.5,0.24 10 false K43 2.438,0.51 3.104,0.75 0.667,0.24 10 false CANH 1.927,2.177 2.594,2.417 0.667,0.24 10 false CANL 5.073,0.51 5.573,0.75 0.5,0.24 10 false E58 6.219,2.125 6.885,2.365 0.667,0.24 10 false BAT 3.813,0.115 4.125,0.313 0.313,0.198 10 false *1

Front view of wire harness connector
(to No. 22 CAN Junction Connector)

DLC3

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(K43,E58)Location & Routingewd_type=routing;type=c,c;code=K43,E58 Click Connector(K43)Instrument Panel>Floor Wire>No. 22 Junction Connectorewd_type=component;type=c;code=K43;pinno=7,18 Click Connector(E58)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
K43-7 (CANH) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
K43-18 (CANL) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
K43-7 (CANH) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher
K43-18 (CANL) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher

HINT:: Check for short that was confirmed to be a malfunction by confirming symptoms.

Result:

Proceed to
OK
NG

Post-procedure1

None

17.CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR RH (A) CONNECTION MAIN LINE)

21.CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR LH (B))

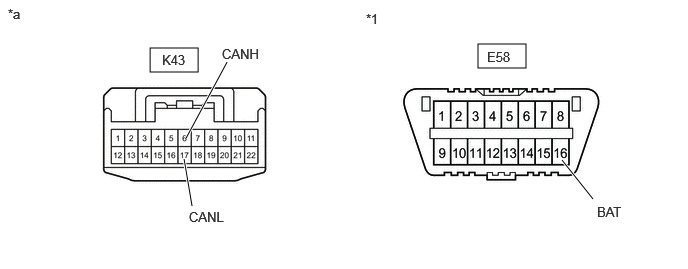

17.CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR RH (A) CONNECTION MAIN LINE)

Pre-procedure1

Disconnect the K43 No. 22 CAN junction connector.

1.563,0.5 2.063,0.75 0.5,0.25 4.979,0.458 5.479,0.708 0.5,0.25 2,2.146 1.917,1.656 true 2.365,0.646 1.938,1.438 true 6.177,2.073 5.854,1.667 true 0.083,0.063 0.396,0.26 0.313,0.198 10 false *a 1.688,0.542 2.188,0.781 0.5,0.24 10 false K43 2.313,0.479 2.979,0.719 0.667,0.24 10 false CANH 1.969,2.177 2.635,2.417 0.667,0.24 10 false CANL 5.073,0.51 5.573,0.75 0.5,0.24 10 false E58 6.219,2.125 6.885,2.365 0.667,0.24 10 false BAT 3.813,0.115 4.125,0.313 0.313,0.198 10 false *1

Front view of wire harness connector
(to No. 22 CAN Junction Connector)

DLC3

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(K43,E58)Location & Routingewd_type=routing;type=c,c;code=K43,E58 Click Connector(K43)Instrument Panel>Floor Wire>No. 22 Junction Connectorewd_type=component;type=c;code=K43;pinno=6,17 Click Connector(E58)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
K43-6 (CANH) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
K43-17 (CANL) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
K43-6 (CANH) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher
K43-17 (CANL) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher

HINT:: Check for short that was confirmed to be a malfunction by confirming symptoms.

Result:

Proceed to
OK
NG

Post-procedure1

None

18.CHECK FOR SHORT IN CAN BUS (CLEARANCE WARNING ECU ASSEMBLY CONNECTION BRANCH LINE)

20.CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR RH (A))

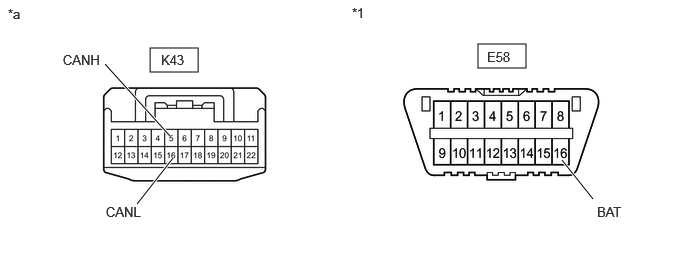

18.CHECK FOR SHORT IN CAN BUS (CLEARANCE WARNING ECU ASSEMBLY CONNECTION BRANCH LINE)

Pre-procedure1

Reconnect the K43 No. 22 CAN junction connector.

1.563,0.5 2.063,0.75 0.5,0.25 4.979,0.458 5.479,0.708 0.5,0.25 1.427,2.125 1.802,1.646 true 1.094,0.667 1.771,1.417 true 6.177,2.073 5.854,1.667 true 0.083,0.063 0.396,0.26 0.313,0.198 10 false *a 1.677,0.542 2.177,0.781 0.5,0.24 10 false K43 0.656,0.542 1.323,0.781 0.667,0.24 10 false CANH 1.104,2.125 1.771,2.365 0.667,0.24 10 false CANL 5.073,0.51 5.573,0.75 0.5,0.24 10 false E58 6.219,2.125 6.885,2.365 0.667,0.24 10 false BAT 3.667,0.052 3.979,0.25 0.313,0.198 10 false *1

Front view of wire harness connector
(to No. 22 CAN Junction Connector)

DLC3

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(K43,E58)Location & Routingewd_type=routing;type=c,c;code=K43,E58 Click Connector(K43)Instrument Panel>Floor Wire>No. 22 Junction Connectorewd_type=component;type=c;code=K43;pinno=5,16 Click Connector(E58)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
K43-5 (CANH) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
K43-16 (CANL) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
K43-5 (CANH) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher
K43-16 (CANL) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher

HINT:: Check for short that was confirmed to be a malfunction by confirming symptoms.

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE NO. 22 CAN JUNCTION CONNECTOR

19.CHECK FOR SHORT IN CAN BUS (CLEARANCE WARNING ECU ASSEMBLY)

Pre-procedure1

Reconnect the K43 No. 22 CAN junction connector.

Disconnect the connector of the clearance warning ECU assembly.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(E51,E58)Location & Routingewd_type=routing;type=c,c;code=E51,E58 Click Connector(E51)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Clearance Warning ECU Assemblyewd_type=component;type=c;code=E51;pinno=37,38 Click Connector(E58)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E51-37 (CANH) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
E51-38 (CANL) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
E51-37 (CANH) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher
E51-38 (CANL) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE CLEARANCE WARNING ECU ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>CLEARANCE WARNING ECU>REMOVAL202111,999999,_56,_111825,_0500520,RM100000001Z2QT,

REPAIR OR REPLACE CAN BUS BRANCH LINE OR CONNECTOR (CLEARANCE WARNING ECU ASSEMBLY - NO. 22 CAN JUNCTION CONNECTOR)

20.CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR RH (A))

Pre-procedure1

Reconnect the K43 No. 22 CAN junction connector.

Disconnect the S11 blind spot monitor sensor RH (A).

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(S11,E58)Location & Routingewd_type=routing;type=c,c;code=S11,E58 Click Connector(S11)Body>No. 2 Luggage Room Wire / No. 3 Luggage Room Wire>Blind Spot Monitor Sensor RHewd_type=component;type=c;code=S11;pinno=1,6 Click Connector(E58)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
S11-1 (CA2P) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
S11-6 (CA2N) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
S11-1 (CA2P) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher
S11-6 (CA2N) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE BLIND SPOT MONITOR SENSOR RH (A)

REPAIR OR REPLACE CAN BUS MAIN LINE OR CONNECTOR (BLIND SPOT MONITOR SENSOR RH (A) - NO. 22 CAN JUNCTION CONNECTOR)

21.CHECK FOR SHORT IN CAN BUS (BLIND SPOT MONITOR SENSOR LH (B))

Pre-procedure1

Reconnect the K43 No. 22 CAN junction connector.

Disconnect the R1 blind spot monitor sensor LH (B) connector.

Procedure1

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
Click Location & Routing(R1,E58)Location & Routingewd_type=routing;type=c,c;code=R1,E58 Click Connector(R1)Body>Luggage Room Wire>Blind Spot Monitor Sensor LHewd_type=component;type=c;code=R1;pinno=1,6 Click Connector(E58)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
R1-1 (CA2P) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
R1-6 (CA2N) - Body ground	Disconnect cable from negative (-) auxiliary battery terminal	200 Ω or higher
R1-1 (CA2P) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher
R1-6 (CA2N) - E58-16 (BAT)	Disconnect cable from negative (-) auxiliary battery terminal	6 kΩ or higher

Result:

Proceed to
OK
NG

Post-procedure1

None

REPLACE BLIND SPOT MONITOR SENSOR LH (B)

REPAIR OR REPLACE CAN BUS MAIN LINE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH (B) - NO. 22 CAN JUNCTION CONNECTOR)

22.CLEAR DTCS

Using the GTS, clear the DTCs.

Body Electrical > Clearance Warning > Clear DTCs: 50002 438

Result:

Proceed to
NEXT

23.CHECK FOR DTC

Check for DTCs.

Body Electrical > Clearance Warning > Trouble Codes: 50001 438

Result:

Result	Proceed to
U117787 and U117887 are output	A
U117787 and U117887 are not output	B

REPLACE CLEARANCE WARNING ECU ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>CLEARANCE WARNING ECU>REMOVAL202111,999999,_56,_111825,_0500520,RM100000001Z2QT,

GO TO PROBLEM SYMPTOM SIMULATION METHOD

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING SUPPORT BRAKE SYSTEM>PROBLEM SYMPTOMS TABLE202111,202203,_56,_111825,_0501857,RM100000001Z7VN,202203,999999,_56,_111825,_0501857,RM1000000022MOH,
