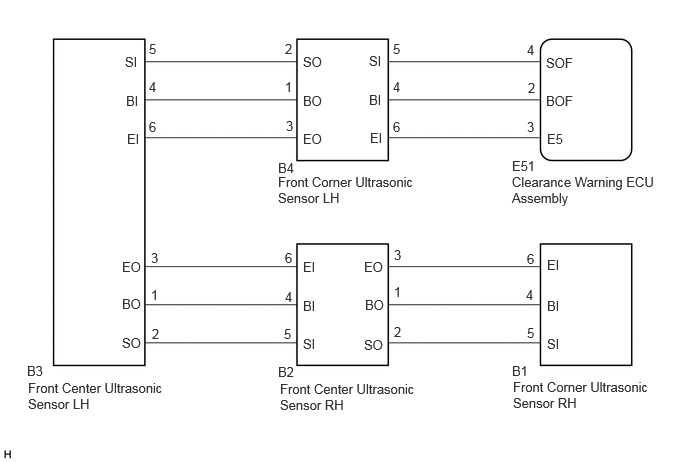

This DTC is stored when an open circuit or short occurs in the communication line between the front corner ultrasonic sensor LH and the clearance warning ECU assembly, or when a malfunction occurs in the front corner ultrasonic sensor LH.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | DTC Output from | Priority |
|---|---|---|---|---|---|
| C1AE187 | Ultrasonic Sensor (Front Left Corner) Missing Message | Front corner ultrasonic sensor LH lost communication | ·
Front corner ultrasonic sensor LH ·
Harness or connector ·
Clearance warning ECU assembly |
Clearance Warning | A |
Perform registration after replacing or removing and installing the ultrasonic sensor or clearance warning ECU assembly.
If a DTC is detected again after the repair, turn the ignition switch to ON and turn the toyota parking assist-sensor system on, and then clear the DTC.
Check the vehicle condition and work details.
| Result | Proceed to |
|---|---|
| The clearance warning ECU assembly or ultrasonic sensor has not been replaced | A |
| The clearance warning ECU assembly or ultrasonic sensor has been replaced | B |
A
B
Check that the connector is properly connected to the front corner ultrasonic sensor and front center ultrasonic sensor.
| Proceed to |
|---|
| NEXT |
NEXT
According to the display on the GTS, check for DTCs.
According to the display on the GTS, clear the DTCs.
Recheck for DTCs.
| Result | Proceed to |
|---|---|
| C1AE187 is not output | A |
| C1AE187 is output | B |
A
B
Check that the connector is properly connected to the clearance warning ECU assembly.
| Proceed to |
|---|
| NEXT |
NEXT
Clear the DTCs.
| Proceed to |
|---|
| NEXT |
NEXT
Check for DTCs.
| Result | Proceed to |
|---|---|
| DTCs are not output | A |
| C1AE187, C1AE287, C1AE387 and C1AE487 are output | B |
| C1AE287, C1AE387 and C1AE487 are output | C |
| C1AE387 and C1AE487 are output | D |
| C1AE487 is output | E |
| C1AE187 is output | F |
A
B
C
D
E
F
Pre-procedure1
Disconnect the E51 clearance warning ECU assembly connector.
Disconnect the B4 front corner ultrasonic sensor LH connector.
Procedure1
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
|
Click Location & Routing(E51,B4)Location & Routingewd_type=routing;type=c,c;code=E51,B4 Click Connector(E51)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Clearance Warning ECU Assemblyewd_type=component;type=c;code=E51;pinno=2,4,3 |
||
| E51-2 (BOF) - B4-4 (BI) | Always | Below 1 Ω |
| E51-4 (SOF) - B4-5 (SI) | Always | Below 1 Ω |
| E51-3 (E5) - B4-6 (EI) | Always | Below 1 Ω |
| E51-2 (BOF) or B4-4 (BI) - Body ground | Always | 10 kΩ or higher |
| E51-4 (SOF) or B4-5 (SI) - Body ground | Always | 10 kΩ or higher |
| E51-3 (E5) or B4-6 (EI) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
Post-procedure1
None
OK
NG
Replace the front corner ultrasonic sensor LH with a new or normally functioning one.
To check if the ultrasonic sensor is functioning correctly, replace it with another ultrasonic sensor.
| Proceed to |
|---|
| NEXT |
NEXT
Clear the DTCs.
| Proceed to |
|---|
| NEXT |
NEXT
Check for DTCs.
| Result | Proceed to |
|---|---|
| DTCs are not output | A |
| C1AE187 is output | B |
A
B
