RM38N0EC _56 Audio / Visual / Telematics _111825 PARK ASSIST / MONITORING _0500520 CLEARANCE WARNING ECU A

PARK ASSIST / MONITORING CLEARANCE WARNING ECU INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:: After replacing the clearance warning ECU assembly, make sure to perform update ECU security key.

Hide Display 89340A 1.INSTALL CLEARANCE WARNING ECU ASSEMBLY

0,0 0,0 false

Install in this Direction

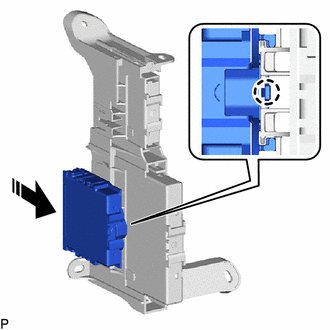

Engage the claw to install the clearance warning ECU assembly as shown in the illustration.

Hide Display 82877 2.INSTALL ECU INTEGRATION BOX RH

Hide Display 55433B 3.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Hide Display 4.INSTALL CONSOLE BOX ASSEMBLY

Hide Display 55550 5.INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

Hide Display 55607 6.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Hide Display 62111C 7.INSTALL COWL SIDE TRIM BOARD RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202111,202203,_58,_111843,_0501311,RM100000001Z5HC_02_0045,202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0045,

Hide Display 67913B 8.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202111,202203,_58,_111843,_0501311,RM100000001Z5HC_02_0047,202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0047,

Hide Display 9. UPDATE ECU SECURITY KEY

Hide Display 10.PERFORM CALIBRATION
