INTERIOR PANELS / TRIM FRONT CONSOLE BOX INSTALLATION

Hide Display 1.INSTALL CONSOLE BOX ASSEMBLY

a.

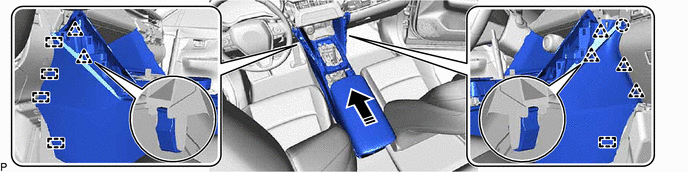

Engage the 5 guides, 6 clips and claw as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

b.

Engage the clamp and connect the connector.

c.

Install the console box assembly with the 5 bolts.

Hide Display 58815F 2.INSTALL CONSOLE BOX CARPET

a.

Install the console box carpet.

Hide Display 58825A 3.INSTALL CONSOLE BOX POCKET

a.

Install the console box pocket.

Hide Display 58817A 4.INSTALL FRONT NO. 2 CONSOLE BOX INSERT

a.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Engage the guide and 3 clips as shown in the illustration to install the front No. 2 console box insert.

Hide Display 58816D 5.INSTALL FRONT NO. 1 CONSOLE BOX INSERT

a.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Engage the guide and 3 clips as shown in the illustration to install the front No. 1 console box insert.

Hide Display 6.INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY

a.

Connect the connector.

b.

0,0 0,0 false

Install in this Direction

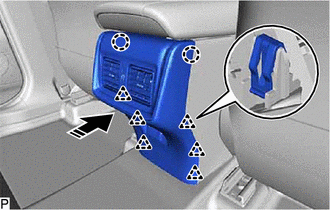

Engage the 6 clips and 2 claws as shown in the illustration to install the console rear end panel sub-assembly.

Hide Display 58803C 7.INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

a.

Connect the connector.

b.

0,0 0,0 false

Install in this Direction

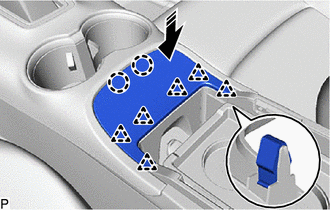

Engage the 14 clips as shown in the illustration.

c.

Install the console cup holder box sub-assembly with the bolt.

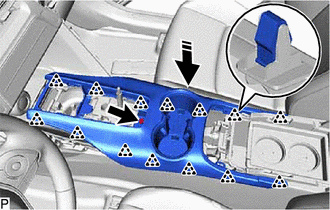

Hide Display 58804A 8.INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

a.

Connect the 3 connectors and engage the 2 clamps.

b.

0,0 0,0 false

Install in this Direction

Engage the 3 guides, 6 claws and 4 clips as shown in the illustration to install the upper console panel sub-assembly.

c.

Move the shift lever to P.

Hide Display 33504F 9.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

for K120:

Click hereDrivetrain>K120 / K120F (CVT)>SHIFT LEVER KNOB>INSTALLATION202111,999999,_52,_111806,_0499743,RM100000001YZMG_01_0004,

for P710:

Click hereDrivetrain>P710 (HYBRID TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>INSTALLATION202111,999999,_52,_111805,_0503482,RM100000001ZETD_01_0004,

Hide Display 58835C 10.INSTALL CONSOLE BOX ORNAMENT (w/o Seat Heater System)

a.

0,0 0,0 false

Install in this Direction

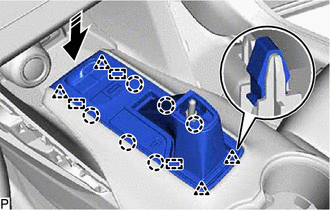

Engage the 6 clips and 2 claws as shown in the illustration to install the console box ornament.

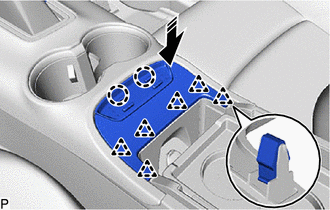

Hide Display 58835C 11.INSTALL CONSOLE BOX ORNAMENT (w/ Seat Heater System)

a.

Connect the connector.

b.

0,0 0,0 false

Install in this Direction

Engage the 6 clips and 2 claws as shown in the illustration to install the console box ornament.

Hide Display 58833B 12.INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH

a.

0,0 0,0 false

Install in this Direction

Engage the 7 clips as shown in the illustration to install the upper No. 1 console panel garnish.

Hide Display 58834B 13.INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH

a.

0,0 0,0 false

Install in this Direction

Engage the 8 clips as shown in the illustration to install the upper No. 2 console panel garnish.

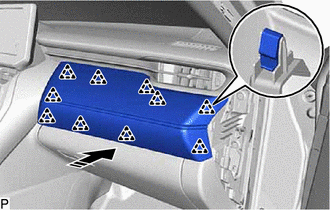

Hide Display 55475A 14.INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

a.

0,0 0,0 false

Install in this Direction

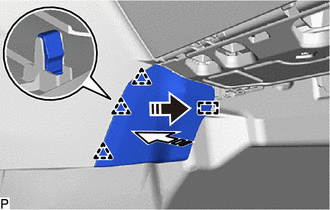

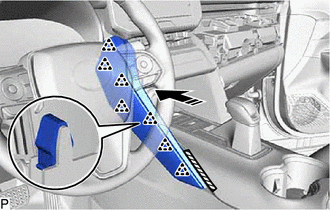

Engage the 10 clips as shown in the illustration to install the No. 2 instrument cluster finish panel garnish.

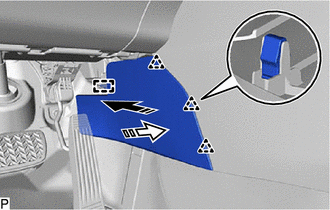

Hide Display 55317E 15.INSTALL NO. 1 INSTRUMENT SIDE PANEL

a.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

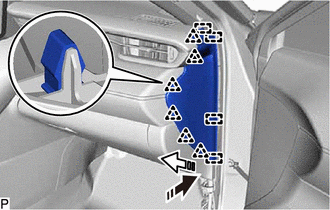

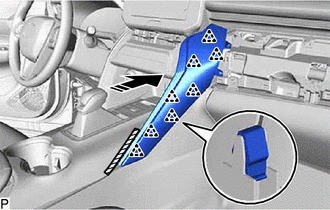

Engage the 4 guides and 6 clips as shown in the illustration to install the No. 1 instrument side panel.

Hide Display 62311B 16.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION202111,999999,_59,_111831,_0501458,RM100000001Z65T_02_0008,

INTERIOR PANELS / TRIM FRONT CONSOLE BOX INSTALLATION

PROCEDURE
