LIGHTING (EXT)  LIGHTING SYSTEM  Hazard Warning Switch Circuit


DESCRIPTION

The combination meter assembly receives the hazard warning signal switch assembly on signal and controls the operation of the hazard warning lights.

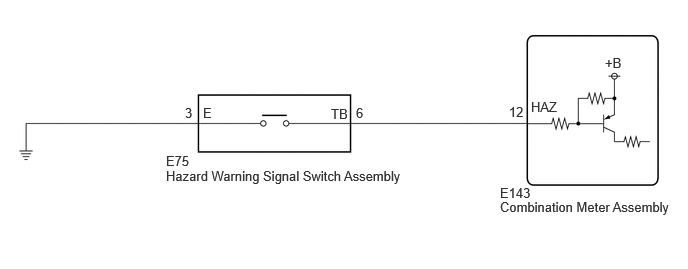

WIRING DIAGRAM

for TFT Meter Type


E367346E69
1.729,1.75 4.302,2 2.573,0.25 10 false Hazard Warning Signal Switch Assembly 1.729,1.594 2.063,1.854 0.333,0.26 10 false E75 1.927,1.094 2.219,1.333 0.292,0.24 10 false 3 2.115,1.094 2.406,1.333 0.292,0.24 10 false E 3.448,1.104 3.74,1.344 0.292,0.24 10 false TB 3.708,1.094 4,1.333 0.292,0.24 10 false 6 5.208,1.927 5.76,2.177 0.552,0.25 10 false E143 5.208,2.073 7.104,2.354 1.896,0.281 10 false Combination Meter Assembly 5.531,1.031 5.969,1.25 0.438,0.219 10 false HAZ 5.302,1.083 5.635,1.323 0.333,0.24 10 false 12 6.302,0.573 6.74,0.792 0.438,0.219 10 false +B


for Optitron Meter Type


E367346E70
1.729,1.75 4.302,2 2.573,0.25 10 false Hazard Warning Signal Switch Assembly 1.729,1.594 2.125,1.844 0.396,0.25 10 false E75 1.927,1.094 2.219,1.333 0.292,0.24 10 false 3 2.115,1.094 2.406,1.333 0.292,0.24 10 false E 3.448,1.104 3.74,1.344 0.292,0.24 10 false TB 3.708,1.094 4,1.333 0.292,0.24 10 false 6 5.208,1.927 5.5,2.167 0.292,0.24 10 false E16 5.208,2.073 7.104,2.354 1.896,0.281 10 false Combination Meter Assembly 5.531,1.031 5.969,1.25 0.438,0.219 10 false HAZ 5.344,1.083 5.635,1.323 0.292,0.24 10 false 3 6.302,0.573 6.74,0.792 0.438,0.219 10 false +B


CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

When replacing the combination meter assembly, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY



PROCEDURE

1.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Hazard Flasher Switch Hazard warning signal switch signal OFF or ON OFF: Hazard warning signal switch off
ON: Hazard warning signal switch on 		-
Body Electrical > Combination Meter > Data List
Tester Display
Hazard Flasher Switch
50003 409 39
OK:

Normal conditions listed above are displayed.



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereVehicle Exterior>LIGHTING (EXT)>LIGHTING SYSTEM>PROBLEM SYMPTOMS TABLE


NG

2.INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY
2.INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY
a.

Remove the hazard warning signal switch assembly.

Click hereVehicle Exterior>LIGHTING (EXT)>HAZARD WARNING SWITCH>REMOVAL


b.

Inspect the hazard warning signal switch assembly.

Click hereVehicle Exterior>LIGHTING (EXT)>HAZARD WARNING SWITCH>INSPECTION


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (HAZARD WARNING SIGNAL SWITCH ASSEMBLY - COMBINATION METER ASSEMBLY AND BODY GROUND)

NG

REPLACE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>HAZARD WARNING SWITCH>REMOVAL


3.CHECK HARNESS AND CONNECTOR (HAZARD WARNING SIGNAL SWITCH ASSEMBLY - COMBINATION METER ASSEMBLY AND BODY GROUND)
a.

Disconnect the E143 combination meter assembly connector. (for TFT Meter Type)


b.

Disconnect the E16 combination meter assembly connector. (for Optitron Meter Type)


c.

Measure the resistance according to the value(s) in the table below.

i.

for TFT Meter Type

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E75,E143)Location & Routing

Click Connector(E75)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Hazard Warning Signal Switch Assembly

Click Connector(E143)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Combination Meter Assembly

E75-6 (TB) - E143-12 (HAZ) Always Below 1 Ω
E75-6 (TB) or E143-12 (HAZ) - Body ground Always 10 kΩ or higher
E75-3 (E) - Body ground Always Below 1 Ω



ii.

for Optitron Meter Type

Standard Resistance:
Tester Connection Condition Specified Condition

Click Location & Routing(E75,E16)Location & Routing

Click Connector(E75)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Hazard Warning Signal Switch Assembly

Click Connector(E16)Instrument Panel>Instrument Panel Wire / Radio Wiring Sub-Assy / Telephone Computer Wire>Combination Meter Assembly

E75-6 (TB) - E16-3 (HAZ) Always Below 1 Ω
E75-6 (TB) or E16-3 (HAZ) - Body ground Always 10 kΩ or higher
E75-3 (E) - Body ground Always Below 1 Ω




Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
