RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0499899 HAZARD WARNING SWITCH A

LIGHTING (EXT) HAZARD WARNING SWITCH REMOVAL

PROCEDURE

Hide Display 55422C 1.REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0115,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0115,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0115,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0115,

Hide Display 2.REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL202111,202303,_56,_111822,_0500651,RM100000001Z2WP_01_0142,202303,999999,_56,_111822,_0500651,RM1000000029SFX_01_0142,

Hide Display 3.REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (for 12.3 Inch Display)

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL202111,202406,_56,_111823,_0500514,RM100000001Z2Q5_01_0045,202406,202409,_56,_111823,_0500514,RM100000002MYBP_01_0045,202409,999999,_56,_111823,_0500514,RM100000002OV73_01_0045,

Hide Display 84330 4.REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

a.

E447491C01

0,0 0,0 false

V113147

Remove in this Direction

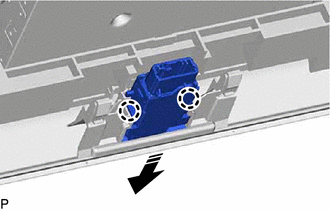

Disengage the 2 claws and remove the hazard warning signal switch assembly as shown in the illustration.
