K120 / K120F / K121 / K121F CVT K120 / K121 FRONT DIFFERENTIAL OIL SEAL REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front drive shaft oil seal LH and front drive shaft oil seal RH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
1: Also necessary after performing a tire rotation. 2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.
Wheel alignment adjustment	· Perform reset memory · Perform "Calibration"	· DTCs are stored · ABS warning light illuminates · Slip indicator light illuminates · Electronically controlled brake system does not operate correctly	(202111,202203,_54,_111814,_0500728,RM100000001Z37W,202203,999999,_54,_111814,_0500728,RM1000000022HI0,)
Tires	· Initialization12 · Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below (202111,202203,_V1,_111780,_0504977,RM100000001ZKRV,202203,202303,_V1,_111780,_0504977,RM1000000022CKZ,202303,202406,_V1,_111780,_0504977,RM100000002AA1Y,202406,202409,_V1,_111780,_0504977,RM100000002MO96,202409,999999,_V1,_111780,_0504977,RM100000002OMBP,)
Replacement of CVT fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(202111,202303,_52,_111806,_0499726,RM100000001YZJA,202303,999999,_52,_111806,_0584611,RM1000000029R1M,)

PROCEDURE

Hide Display 1.REMOVE FRONT DRIVE SHAFT ASSEMBLY

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>FRONT DRIVE SHAFT ASSEMBLY>REMOVAL202111,202203,_52,_111807,_0503131,RM100000001ZEEK,202203,999999,_52,_111807,_0503131,RM100000002299J,

Hide Display 43457 2.REMOVE DRIVE SHAFT BEARING BRACKET

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE UNIT>REMOVAL202111,202203,_51,_111786,_0499723,RM100000001YZIO_01_0126,202203,202303,_51,_111786,_0499723,RM1000000022H7D_01_0126,202303,202406,_51,_111786,_0499723,RM100000002A0K2_01_0126,202406,202409,_51,_111786,_0499723,RM100000002MXSH_01_0126,202409,999999,_51,_111786,_0499723,RM100000002OPX4_01_0126,

Hide Display 43420H 3.REMOVE FRONT DRIVE SHAFT OIL SEAL LH

0.823,0.594 1.198,0.844 true 0.5,0.5 0.823,0.708 0.323,0.208 10 true SST

Using SST, remove the front drive shaft oil seal LH from the continuously variable transaxle assembly.

SST: 09308-00010

NOTICE:: Do not damage the continuously variable transaxle assembly.

Hide Display 43410M 4.REMOVE FRONT DRIVE SHAFT OIL SEAL RH

0.625,1.063 0.99,1.063 false 0.313,0.979 0.667,1.198 0.354,0.219 10 false SST

Using SST, remove the front drive shaft oil seal RH from the continuously variable transaxle assembly.

SST: 09308-00010

NOTICE:: Do not damage the continuously variable transaxle assembly.

Hide Display 43420H 5.INSTALL FRONT DRIVE SHAFT OIL SEAL LH

1.698,1.188 1.104,0.677 1.104,0.677 1.625,0.927 true 0.75,0.563 1.083,0.771 0.333,0.208 10 true SST

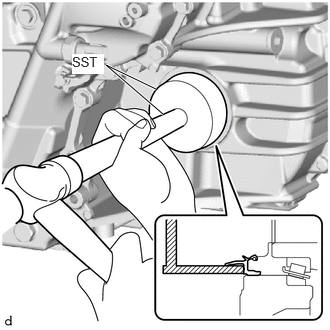

Using SST and a hammer, install a new front drive shaft oil seal LH to the continuously variable transaxle assembly.

SST: 09950-70010 (09951-07100)
09649-17010

Standard Depth:: -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:: ·

Be sure to install the front drive shaft oil seal LH in the correct direction.

·

Make sure to install the front drive shaft oil seal LH as specified, otherwise malfunctions such as a fluid leak will occur.

·

Do not damage the lip of the front drive shaft oil seal LH.

Hide Display 43410M 6.INSTALL FRONT DRIVE SHAFT OIL SEAL RH

1.958,0.948 1.177,0.427 1.177,0.427 1.885,0.698 true 0.865,0.333 1.302,0.563 0.438,0.229 10 false SST

Using SST and a hammer, install a new front drive shaft oil seal RH to the continuously variable transaxle assembly.

SST: 09950-70010 (09951-07100)
09316-10010

Standard Depth:: -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:: ·

Be sure to install the front drive shaft oil seal RH in the correct direction.

·

Make sure to install the front drive shaft oil seal RH as specified, otherwise malfunctions such as a fluid leak will occur.

·

Do not damage the lip of the front drive shaft oil seal RH.

Hide Display 43457 7.INSTALL DRIVE SHAFT BEARING BRACKET

Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE UNIT>INSTALLATION202111,202303,_51,_111786,_0499723,RM100000001YZIN_01_0125,202303,999999,_51,_111786,_0499723,RM100000002A0K3_01_0125,

Hide Display 8.INSTALL FRONT DRIVE SHAFT ASSEMBLY

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>FRONT DRIVE SHAFT ASSEMBLY>INSTALLATION202111,202203,_52,_111807,_0503131,RM100000001ZEEL,202203,999999,_52,_111807,_0503131,RM100000002299I,
