WINDOW / GLASS  POWER WINDOW CONTROL SYSTEM  Rear Power Window RH does not Operate with Rear Power Window Switch RH


DESCRIPTION

When the ignition switch is ON, the rear power window regulator motor assembly RH is operated by the rear power window regulator switch assembly RH. The rear power window regulator motor assembly RH has motor, regulator and ECU functions.

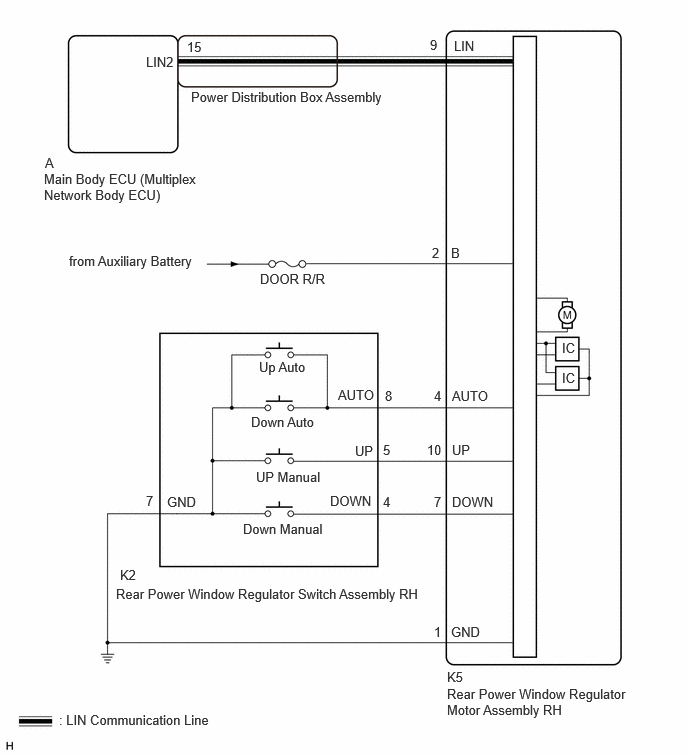

WIRING DIAGRAM

E542365E03
0.458,1.781 2.115,2.26 1.656,0.479 10 false Main Body ECU (Multiplex Network Body ECU) 1.99,0.927 4.188,1.344 2.198,0.417 10 false Power Distribution Box Assembly 0.719,2.635 2.188,2.875 1.469,0.24 10 false from Auxiliary Battery 1.208,6.104 4.469,6.427 3.26,0.323 10 false Rear Power Window Regulator Switch Assembly RH 4.656,7.146 6.521,7.5 1.865,0.354 10 false Rear Power Window Regulator Motor Assembly RH 0.615,7.417 2.396,7.635 1.781,0.219 10 false : LIN Communication Line 2.698,3.74 3.375,3.979 0.677,0.24 10 false Up Auto 2.615,4.313 3.385,4.531 0.771,0.219 10 false Down Auto 2.667,4.885 3.396,5.104 0.729,0.219 10 false UP Manual 2.531,5.427 3.583,5.656 1.052,0.229 10 false Down Manual 1.521,0.563 1.979,0.76 0.458,0.198 10 false LIN2 1.948,0.406 2.177,0.615 0.229,0.208 10 false 15 4.729,0.396 5.188,0.594 0.458,0.198 10 false LIN 4.698,2.552 4.969,2.75 0.271,0.198 10 false B 4.5,2.552 4.708,2.75 0.208,0.198 10 false 2 2.708,2.823 3.479,3.042 0.771,0.219 10 false DOOR R/R 3.521,4.031 3.979,4.229 0.458,0.198 10 false AUTO 3.698,4.615 4.01,4.792 0.313,0.177 10 false UP 3.438,5.135 3.896,5.333 0.458,0.198 10 false DOWN 4.01,4.042 4.25,4.24 0.24,0.198 10 false 8 3.99,4.604 4.188,4.792 0.198,0.188 10 false 5 3.99,5.146 4.229,5.354 0.24,0.208 10 false 4 4.521,6.5 4.792,6.698 0.271,0.198 10 false 1 4.698,6.5 5.156,6.698 0.458,0.198 10 false GND 1.521,5.135 1.802,5.427 0.281,0.292 10 false 7 1.74,5.146 2.198,5.344 0.458,0.198 10 false GND 5.854,3.542 6.125,3.74 0.271,0.198 10 false IC 5.854,3.854 6.125,4.052 0.271,0.198 10 false IC 4.521,4.042 4.76,4.24 0.24,0.198 10 false 4 4.448,4.604 4.688,4.813 0.24,0.208 10 false 10 4.521,5.146 4.76,5.354 0.24,0.208 10 false 7 4.708,4.042 5.167,4.24 0.458,0.198 10 false AUTO 4.708,4.604 5.021,4.781 0.313,0.177 10 false UP 4.708,5.146 5.167,5.344 0.458,0.198 10 false DOWN 4.656,6.969 4.969,7.167 0.313,0.198 10 false K5 1.25,5.906 1.563,6.104 0.313,0.198 10 false K2 0.469,1.615 0.625,1.813 0.156,0.198 10 false A 4.479,0.385 4.792,0.583 0.313,0.198 10 false 9

CAUTION / NOTICE / HINT

NOTICE:
·

The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING

·

If the rear power window regulator motor assembly RH has been replaced with a new one, initialize the power window control system.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>INITIALIZATION

·

Check that the window lock switch is off before performing the following procedure.

·

Inspect the fuse for circuits related to this system before performing the following procedure.



PROCEDURE

1.READ VALUE USING GTS (RR-DOOR MOTOR)
a.

Using the GTS, read the data for the condition when the rear power window regulator switch assembly RH was operated.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > RR-Door Motor > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
RR Door P/W Up SW Rear RH door power window manual up switch signal OFF or ON OFF: Rear RH door power window manual up switch not being operated
ON: Rear RH door power window manual up switch being operated 		-
RR Door P/W Down SW Rear RH door power window manual down switch signal OFF or ON OFF: Rear RH door power window manual down switch not being operated
ON: Rear RH door power window manual down switch being operated 		-
Body Electrical > RR-Door Motor > Data List
Tester Display
RR Door P/W Up SW
RR Door P/W Down SW
50003 145 2,3
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Proceed to
OK
NG



OK

REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR (for Rear Door)>REMOVAL


NG

2.INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH
2.INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH
a.

Remove the rear power window regulator switch assembly RH.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW SWITCH (for Rear Door)>REMOVAL


b.

Inspect the rear power window regulator switch assembly RH.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW SWITCH (for Rear Door)>INSPECTION


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH - REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH)

NG

REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR (for Rear Door)>REMOVAL


3.CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH - REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH)
a.

Disconnect the K2 rear power window regulator switch assembly RH connector.


b.

Disconnect the K5 rear power window regulator motor assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
K2-5 (UP) - K5-10 (UP) Always Below 1 Ω
K2-4 (DOWN) - K5-7 (DOWN) Always Below 1 Ω
K2-5 (UP) or K5-10 (UP) - Body ground Always 10 kΩ or higher
K2-4 (DOWN) or K5-7 (DOWN) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR (for Rear Door)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
