RM36D0EC _59 Vehicle Exterior _083107 WINDOW / GLASS _0400960 POWER WINDOW CONTROL SYSTEM D

WINDOW / GLASS POWER WINDOW CONTROL SYSTEM INITIALIZATION

INITIALIZE POWER WINDOW CONTROL SYSTEM (ALL DOORS)

NOTICE:: ·

When a door window regulator sub-assembly, power window regulator motor assembly, door glass or door glass run is reinstalled or replaced, the power window control system must be initialized. Functions such as the auto up and down function, jam protection function, catch protection function, remote control function, key-linked function, wireless transmitter-linked function, key-off operation function and window open warning function will not operate if initialization is not performed.

·

When a power window regulator motor assembly is replaced, DTC B2313 is stored. Clear the DTC after initialization.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>DTC CHECK / CLEAR201910,999999,_59,_083107,_0400960,RM100000001JBCA,

·

When performing initialization, do not perform any other procedures.

·

When performing initialization, use the power window switch of each door to initialize each power window.

·

If initialization cannot be completed properly, the LIN communication system may be malfunctioning.

for SFTM Made:

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for SFTM Made)>HOW TO PROCEED WITH TROUBLESHOOTING202405,999999,_57,_083091,_0694851,RM100000002LUKF,

for GTMC Made:

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for GTMC Made)>HOW TO PROCEED WITH TROUBLESHOOTING202405,999999,_57,_083091,_0694852,RM100000002LUJX,

·

Make sure to park the vehicle and turn off all electrical systems before performing initialization. Initialization will be canceled if the vehicle is driven during initialization.

·

Make sure not to hit, strike or vibrate the door glass during initialization because the vehicle is learning the sliding resistance of the door glass.

·

Make sure not to turn the ignition switch off during initialization.

HINT:: If the auxiliary battery has been replaced, it is not necessary to initialize the power window regulator motor assemblies.

Perform initialization according to the table below.

Condition of Power Window	Proceed to
Initialization method when a power window regulator motor assembly has been replaced with a new one.	Procedure A
· Initialization method for when a power window regulator motor assembly has been removed/installed or a door glass and/or door glass run, etc. have been removed/installed or replaced with new ones. · Initialization method for when the power window cannot be fully opened via a down operation (door glass remains visible). · Initialization method for when the power window cannot be fully closed (erroneously operates in reverse) after initialization. · Initialization method for when the power window cannot be fully opened (erroneously stops) after initialization. · Initialization method for when instructions to perform initialization appear in other troubleshooting procedures. HINT: Use this procedure if a power window regulator motor assembly is being reused.	Procedure B
Initialization method for when the power window unexpectedly operates in reverse or stops due to a change in the sliding resistance after a fitting adjustment is made.	Procedure C

Procedure A

Perform window position initialization (fully closed, fully open) and sliding resistance learning.

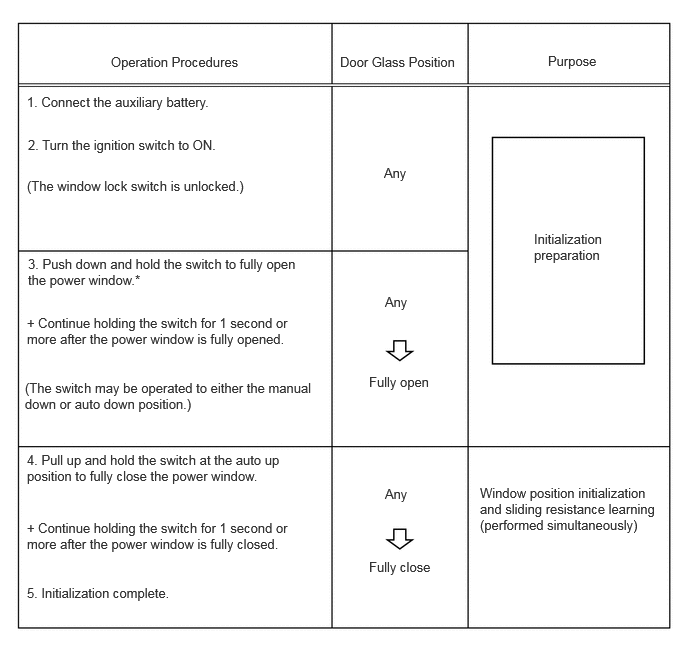

1.156,0.563 2.573,0.781 1.417,0.219 10 false Operation Procedures 3.542,0.563 4.854,0.76 1.313,0.198 10 false Door Glass Position 5.708,0.552 6.292,0.75 0.583,0.198 10 false Purpose 0.281,0.979 2.427,1.188 2.146,0.208 10 false 1. Connect the auxiliary battery. 0.292,1.427 2.479,1.646 2.188,0.219 10 false 2. Turn the ignition switch to ON. 0.281,1.854 2.906,2.063 2.625,0.208 10 false (The window lock switch is unlocked.) 4,1.719 4.458,1.917 0.458,0.198 10 false Any 4.01,3.063 4.469,3.26 0.458,0.198 10 false Any 4.01,5.063 4.469,5.26 0.458,0.198 10 false Any 3.844,3.896 4.552,4.104 0.708,0.208 10 false Fully open 3.844,5.823 4.604,6.021 0.76,0.198 10 false Fully close 5.563,2.406 6.344,2.802 0.781,0.396 10 false Initialization preparation 5,5.052 6.865,5.625 1.865,0.573 10 false Window position initialization and sliding resistance learning (performed simultaneously) 0.292,2.667 3.177,3.052 2.885,0.385 10 false 3. Push down and hold the switch to fully open the power window.* 0.281,3.281 3.042,3.656 2.76,0.375 10 false + Continue holding the switch for 1 second or more after the power window is fully opened. 0.26,3.958 3.313,4.354 3.052,0.396 10 false (The switch may be operated to either the manual down or auto down position.) 0.281,4.708 2.979,5.073 2.698,0.365 10 false 4. Pull up and hold the switch at the auto up position to fully close the power window. 0.281,5.417 3.042,5.813 2.76,0.396 10 false + Continue holding the switch for 1 second or more after the power window is fully closed. 0.281,6.094 1.854,6.292 1.573,0.198 10 false 5. Initialization complete.

HINT:: *: Even if the door glass is in the fully open position before performing step 3, push down and hold the switch for 1 second or more.

Procedure B

Perform window position initialization (fully closed, fully open) and sliding resistance learning.

Reset the power window position, perform window position initialization (fully closed, fully opened) and sliding resistance learning.

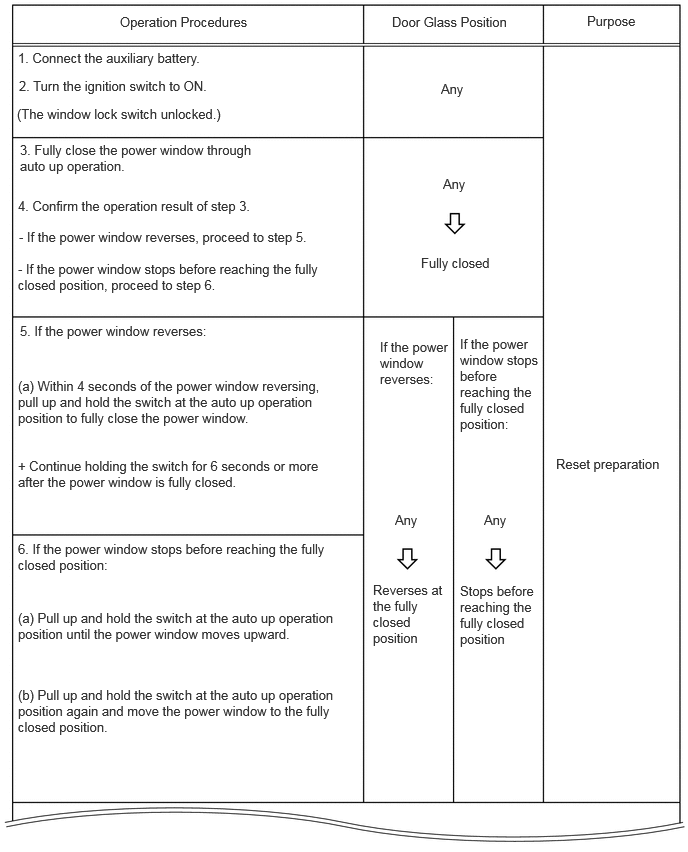

0.188,0.521 2.563,0.729 2.375,0.208 10 false 1. Connect the auxiliary battery. 1.25,0.146 2.667,0.344 1.417,0.198 10 false Operation Procedures 4.083,0.146 5.427,0.365 1.344,0.219 10 false Door Glass Position 6.115,0.135 6.729,0.333 0.615,0.198 10 false Purpose 0.198,0.813 2.573,1.052 2.375,0.24 10 false 2. Turn the ignition switch to ON. 0.177,1.104 2.906,1.302 2.729,0.198 10 false (The window lock switch unlocked.) 4.594,0.844 5.052,1.042 0.458,0.198 10 false Any 4.615,1.833 5.073,2.031 0.458,0.198 10 false Any 5.792,4.75 6.927,4.969 1.135,0.219 10 false Reset preparation 0.208,1.479 2.667,1.938 2.458,0.458 10 false 3. Fully close the power window through auto up operation. 0.188,2.063 2.677,2.292 2.49,0.229 10 false 4. Confirm the operation result of step 3. 0.198,2.385 3.229,2.604 3.031,0.219 10 false - If the power window reverses, proceed to step 5. 0.188,2.719 3.333,3.104 3.146,0.385 10 false - If the power window stops before reaching the fully closed position, proceed to step 6. 4.385,2.656 5.208,2.885 0.823,0.229 10 false Fully closed 0.208,3.365 2.198,3.573 1.99,0.208 10 false 5. If the power window reverses: 0.188,3.938 3.344,4.469 3.156,0.531 10 false (a) Within 4 seconds of the power window reversing, pull up and hold the switch at the auto up operation position to fully close the power window. 0.188,4.771 3.365,5.188 3.177,0.417 10 false + Continue holding the switch for 6 seconds or more after the power window is fully closed. 3.958,3.531 4.708,4.063 0.75,0.531 10 false If the power window reverses: 4.792,3.5 5.646,4.594 0.854,1.094 10 false If the power window stops before reaching the fully closed position: 4.115,5.333 4.573,5.531 0.458,0.198 10 false Any 5.042,5.333 5.5,5.531 0.458,0.198 10 false Any 3.885,6.063 4.625,6.573 0.74,0.51 10 false Reverses at the fully closed position 4.792,6.073 5.583,6.875 0.792,0.802 10 false Stops before reaching the fully closed position 0.188,5.635 3.417,6 3.229,0.365 10 false 6. If the power window stops before reaching the fully closed position: 0.188,6.354 3.521,6.823 3.333,0.469 10 false (a) Pull up and hold the switch at the auto up operation position until the power window moves upward. 0.188,7.156 3.51,7.677 3.323,0.521 10 false (b) Pull up and hold the switch at the auto up operation position again and move the power window to the fully closed position.

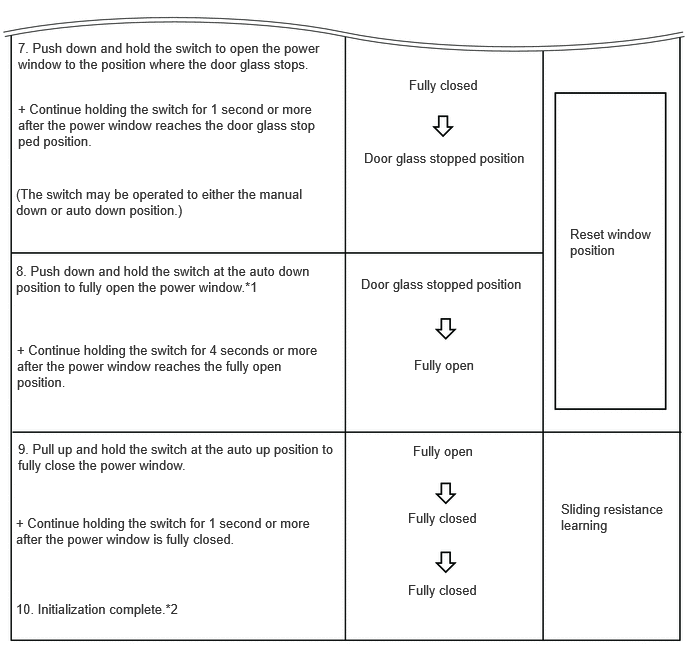

0.188,0.417 3.385,0.813 3.198,0.396 10 false 7. Push down and hold the switch to open the power window to the position where the door glass stops. 0.188,1.052 3.302,1.604 3.115,0.552 10 false + Continue holding the switch for 1 second or more after the power window reaches the door glass stop ped position. 0.167,1.938 3.188,2.292 3.021,0.354 10 false (The switch may be operated to either the manual down or auto down position.) 4.26,0.802 5.073,1 0.813,0.198 10 false Fully closed 3.792,1.563 5.531,1.792 1.74,0.229 10 false Door glass stopped position 5.938,2.354 6.802,2.75 0.865,0.396 10 false Reset window position 3.76,2.875 5.521,3.083 1.76,0.208 10 false Door glass stopped position 4.313,3.719 5,3.938 0.688,0.219 10 false Fully open 4.302,4.615 4.99,4.833 0.688,0.219 10 false Fully open 4.25,5.313 5.063,5.521 0.813,0.208 10 false Fully closed 4.25,6.063 5.052,6.26 0.802,0.198 10 false Fully closed 5.844,5.219 6.948,5.625 1.104,0.406 10 false Sliding resistance learning 0.167,2.74 3.281,3.115 3.115,0.375 10 false 8. Push down and hold the switch at the auto down position to fully open the power window.*1 0.177,3.563 3.323,4.125 3.146,0.563 10 false + Continue holding the switch for 4 seconds or more after the power window reaches the fully open position. 0.188,4.594 3.531,4.979 3.344,0.385 10 false 9. Pull up and hold the switch at the auto up position to fully close the power window. 0.167,5.365 3.281,5.781 3.115,0.417 10 false + Continue holding the switch for 1 second or more after the power window is fully closed. 0.167,6.26 1.969,6.458 1.802,0.198 10 false 10. Initialization complete.*2

HINT:: *1: After performing step 7, release the switch, and then perform an auto down operation.

*2: After completing initialization, check that the power window can be fully closed using an auto up operation.

If initialization cannot be completed properly, the LIN communication system may be malfunctioning.

for SFTM Made:

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for SFTM Made)>HOW TO PROCEED WITH TROUBLESHOOTING202405,999999,_57,_083091,_0694851,RM100000002LUKF,

for GTMC Made:

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for GTMC Made)>HOW TO PROCEED WITH TROUBLESHOOTING202405,999999,_57,_083091,_0694852,RM100000002LUJX,

Procedure C

Perform sliding resistance learning.

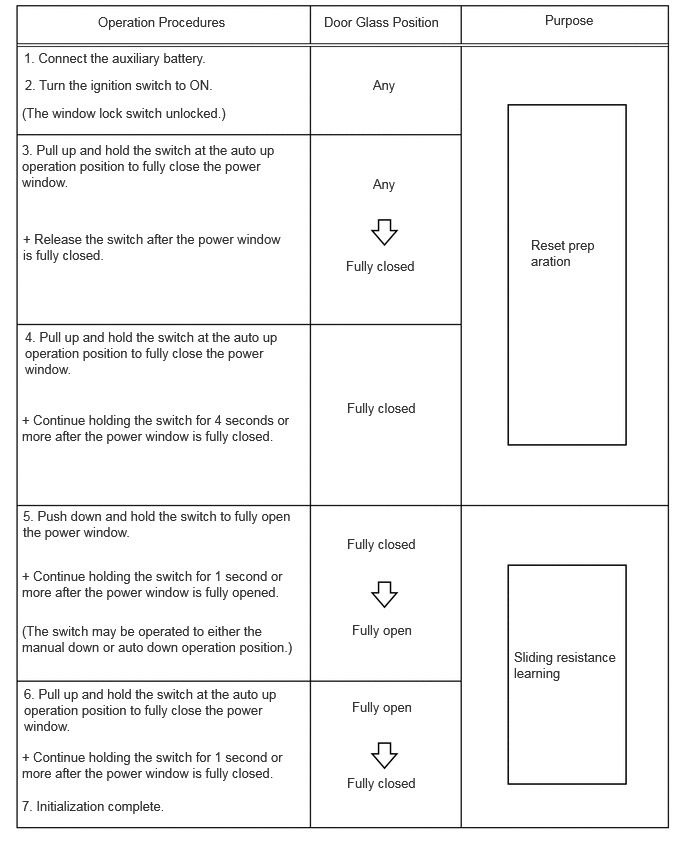

1.021,0.146 2.385,0.354 1.365,0.208 10 false Operation Procedures 3.375,0.146 4.677,0.354 1.302,0.208 10 false Door Glass Position 5.677,0.125 6.25,0.344 0.573,0.219 10 false Purpose 3.885,0.802 4.344,1 0.458,0.198 10 false Any 3.885,1.833 4.344,2.031 0.458,0.198 10 false Any 3.604,2.688 4.396,2.938 0.792,0.25 10 false Fully closed 5.531,2.469 6.219,2.906 0.688,0.438 10 false Reset prep aration 3.615,4.167 4.406,4.417 0.792,0.25 10 false Fully closed 3.615,5.583 4.406,5.833 0.792,0.25 10 false Fully closed 3.615,8.073 4.406,8.323 0.792,0.25 10 false Fully closed 3.667,6.479 4.385,6.729 0.719,0.25 10 false Fully open 3.667,7.281 4.385,7.531 0.719,0.25 10 false Fully open 5.354,6.76 6.438,7.115 1.083,0.354 10 false Sliding resistance learning 0.25,0.521 2.479,0.76 2.229,0.24 10 false 1. Connect the auxiliary battery. 0.26,0.802 2.708,1.083 2.448,0.281 10 false 2. Turn the ignition switch to ON. 0.229,1.094 2.635,1.323 2.406,0.229 10 false (The window lock switch unlocked.) 0.229,1.479 2.917,1.99 2.688,0.51 10 false 3. Pull up and hold the switch at the auto up operation position to fully close the power window. 0.24,2.406 2.938,2.781 2.698,0.375 10 false + Release the switch after the power window is fully closed. 0.26,3.427 2.958,3.948 2.698,0.521 10 false 4. Pull up and hold the switch at the auto up operation position to fully close the power window. 0.229,4.292 3.063,4.656 2.833,0.365 10 false + Continue holding the switch for 4 seconds or more after the power window is fully closed. 0.24,5.292 3.083,5.646 2.844,0.354 10 false 5. Push down and hold the switch to fully open the power window. 0.229,5.917 2.99,6.313 2.76,0.396 10 false + Continue holding the switch for 1 second or more after the power window is fully opened. 0.229,6.49 3.083,6.865 2.854,0.375 10 false (The switch may be operated to either the manual down or auto down operation position.) 0.25,7.146 2.938,7.688 2.688,0.542 10 false 6. Pull up and hold the switch at the auto up operation position to fully close the power window. 0.229,7.802 2.99,8.156 2.76,0.354 10 false + Continue holding the switch for 1 second or more after the power window is fully closed. 0.229,8.313 1.792,8.49 1.563,0.177 10 false 7. Initialization complete.

HINT:: If the jam protection function or catch protection function continues to operate even after performing steps 4, 5 and 6, perform the procedure again from step 3.
