RM36D0EC _59 Vehicle Exterior _083107 WINDOW / GLASS _0400965 POWER WINDOW REGULATOR MOTOR(for Rear Door) A

WINDOW / GLASS POWER WINDOW REGULATOR MOTOR(for Rear Door) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during power window regulator motor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
· Power window regulator motor assembly LH · Power window regulator motor assembly RH · Rear door window regulator sub-assembly LH · Rear door window regulator sub-assembly RH · Rear door glass sub-assembly LH · Rear door glass sub-assembly RH · Rear door glass run LH · Rear door glass run RH	Initialize power window control system	· Auto up and down function · Jam protection function · Catch protection function · Remote control function · Wireless transmitter-linked function · Key-linked function · Key-off operation function · Window open warning function	(202409,999999,_59,_083107,_0400960,RM100000002NUSM,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane tracing assist system	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system		(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door function	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
· Power window regulator motor assembly LH · Power window regulator motor assembly RH · Rear door window regulator sub-assembly LH · Rear door window regulator sub-assembly RH · Rear door glass sub-assembly LH · Rear door glass sub-assembly RH · Rear door glass run LH · Rear door glass run RH	Initialize power window control system	· Auto up and down function · Jam protection function · Catch protection function · Remote control function · Wireless transmitter-linked function · Key-linked function · Key-off operation function · Window open warning function	(202409,999999,_59,_083107,_0400960,RM100000002NUSM,)

HINT:

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
Lane tracing assist system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system		(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Power back door system
Power back door function*	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure below is for the LH side.

·

When removing the rear door glass sub-assembly LH, move the rear door glass sub-assembly LH to the lowest position before disconnecting the negative (-) auxiliary battery terminal.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>PRECAUTION202405,999999,_58,_083100,_0694959,RM100000002LV12,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>PRECAUTION202409,999999,_58,_083100,_0694957,RM100000002NSNT,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,999999,_V1,_083041,_0402304,RM100000002AYZV,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:: ·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0418197,RM100000002NHPI,

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0403617,RM100000002NHPJ,

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>REMOVAL202409,999999,_V1,_083136,_0403618,RM100000002NHPL,

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>REMOVAL202409,999999,_V1,_083136,_0477834,RM100000002NHPM,

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>REMOVAL202409,999999,_V1,_083136,_0486275,RM100000002NHPN,

Hide Display 69278C 3.REMOVE REAR DOOR INSIDE HANDLE BEZEL LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0048,

Hide Display 74646 4.REMOVE DOOR ASSIST GRIP COVER LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0049,

Hide Display 5.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0050,

Hide Display 67604 6.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0012,

Hide Display 68174C 7.REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0014,

Hide Display 68199 8.REMOVE REAR DOOR REAR BELT SEAL LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0016,

Hide Display 67842E 9.REMOVE REAR DOOR SERVICE HOLE COVER LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0018,

Hide Display 67674A 10.REMOVE REAR DOOR FRAME GARNISH LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0030,

Hide Display 68152C 11.REMOVE REAR DOOR GLASS RUN LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0058,

Hide Display 67408E 12.REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0020,

Hide Display 68104 13.REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0024,

Hide Display 69804 14.REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY202409,999999,_59,_083093,_0403689,RM100000002NG1R_02_0025,

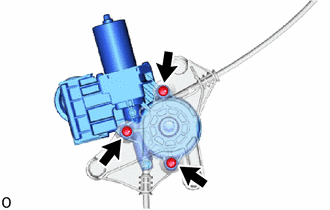

Hide Display 85720D 15.REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

Using a T25 "TORX" socket wrench, remove the 3 "TORX" screws and power window regulator motor assembly LH from the rear door window regulator sub-assembly LH.
