RM36D0EC _51 Engine / Hybrid System _083063 M20D-FKS COOLING _0403604 THERMOSTAT A

M20D-FKS COOLING  THERMOSTAT  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the water inlet with thermostat sub-assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
·

Replacement of throttle body with motor assembly

·

Replacement of EGR valve assembly

·

Gas leaks from exhaust system

·

Cleaning the deposits from the throttle body assembly


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative when not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative when not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 16572D 5.DISCONNECT NO. 2 RADIATOR HOSE

a.
A435727

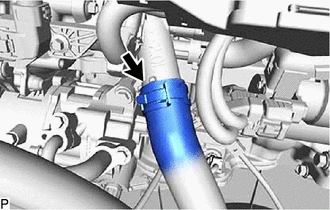

Slide the clip and disconnect the No. 2 radiator hose from the water inlet with thermostat sub-assembly.


Hide 16031 6.REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

a.
A531445

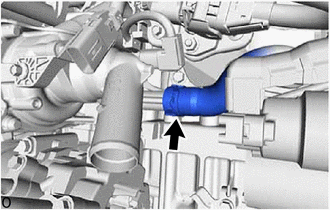

Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly.

NOTICE:
·

Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.

·

Do not damage the water inlet with thermostat sub-assembly.



HINT:

When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.



b.
A531446

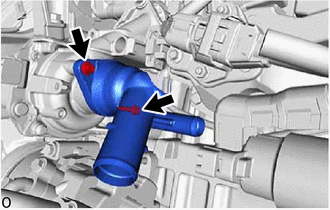

Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.


c.
A402018

Remove the gasket from the water inlet with thermostat sub-assembly.
