REAR SUSPENSION  REAR SUSPENSION MEMBER(for Gasoline Model AWD)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear suspension member sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Gas leaks from exhaust system Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


for M20C-FKS:
(Click here)
for M20D-FKS:
(Click here)
CVT fluid ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly for K121:
(Click here)
for K121F:
(Click here)
Air bleed oil pump with motor assembly Stop and start system (Click here)
Rear wheel alignment adjustment
1.

Perform "Reset Memory".

2.

Perform acceleration sensor zero point calibration and store system information memorization.


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
Suspension, tires, etc. Parking assist ECU initialization Panoramic view monitor system (Click here)

CAUTION:
A344784

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.


NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



PROCEDURE

Hide 41110 2.REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY (except Torque Vectoring Differential)

Hide 48730F 4.REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

HINT:

Perform the same procedure as for the LH side.


Hide 48720A 5.REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

a.
C410956

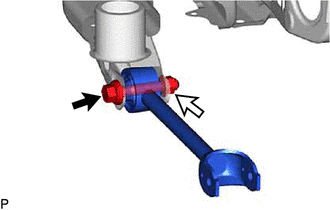

Remove the bolt, nut and rear No. 1 suspension arm assembly from the rear suspension member sub-assembly.

NOTICE:

Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.



Hide 48710A 6.REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

HINT:

Perform the same procedure as for the LH side.


Hide 51206A 7.REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

a.

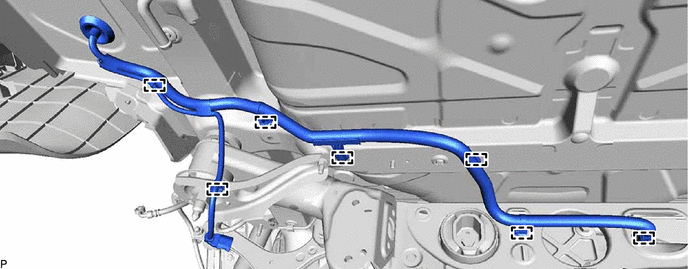

Disengage the 7 clamps to separate the differential carrier wire harness.

C406805


b.
C403462C01
0.583,3.833 0.75,3.833 0.75,3.833 0.833,3.917 false 1.417,3.865 1.583,3.865 1.583,3.865 1.667,3.948 false 1.583,4.344 2.25,4.344 2.25,4.344 2.583,4.094 true 1.917,4.344 2.25,4.094 true 2.896,3.99 2.896,3.74 2.896,3.74 2.979,3.74 false 3.021,3.677 3.271,3.927 0.25,0.25 10 false *a 0.417,3.771 0.667,4.021 0.25,0.25 10 false *b 1.417,4.271 1.75,4.521 0.333,0.25 10 false *b 1.25,3.802 1.667,4.052 0.417,0.25 10 false *b
*a Engine Lifter
*b Attachment
V100155

Attachment and Wooden Block Placement Location

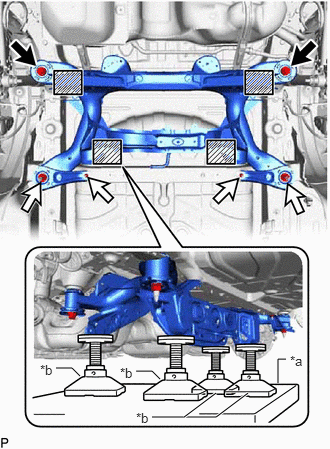

Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.

CAUTION:
C410424

·

The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.

·

If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.



NOTICE:

Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.



c.

Remove the 2 bolts, 4 nuts, 2 rear suspension member lower stoppers, rear suspension member lower brace LH and rear suspension member lower brace RH.


d.

Slowly lower the rear suspension member sub-assembly.

NOTICE:

When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.



e.

Remove the 4 rear suspension member cushions from the rear suspension member sub-assembly.

HINT:

Make sure to place an identification mark on the rear suspension member cushion so that they can be reinstalled to their original positions.



Hide 48770A 9.REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH

HINT:

Perform the same procedure as for the LH side.


Hide 52271E 10.REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for LH Side)

Hide 52271E 11.REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for RH Side)

HINT:

Perform the same procedure as for the LH side.


Hide 52275A 13.REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH

HINT:

Perform the same procedure as for the LH side.


Hide 15.REMOVE HOLE PLUG

a.
C403464N01
0.333,0.042 0.49,0.24 0.156,0.198 10 false A 0.51,0.094 0.667,0.292 0.156,0.198 10 false A 0.646,0.083 0.802,0.281 0.156,0.198 10 false A 0.958,0.052 1.115,0.25 0.156,0.198 10 false B 1.76,0.469 1.917,0.667 0.156,0.198 10 false B 1.542,0 1.698,0.198 0.156,0.198 10 false A 3.135,0.677 3.292,0.875 0.156,0.198 10 false A 2.073,0.792 2.229,0.99 0.156,0.198 10 false A 1.479,0.74 1.604,0.958 0.125,0.219 10 true A 1.125,0.49 1.25,0.708 0.125,0.219 10 true A

Remove the 10 hole plugs from the rear suspension member sub-assembly.

HINT:

There are 2 different shapes of hole plug.
