K121F CVT OIL PAN REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the transaxle side cover sub-assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative when not Performed	Link
CVT fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(202409,999999,_52,_138817,_0596468,RM100000002NRBH,)
CVT fluid	Air bleed oil pump with motor assembly	Stop and start system	(202409,999999,_51,_083056,_0402418,RM100000002NSFT,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
Lane tracing assist system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system		(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Power back door system
Power back door function*	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

PROCEDURE

Hide Display 1.REMOVE BATTERY

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0403617,RM100000002NHPJ,

Hide Display 53895B 2.REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0303,

Hide Display 53896B 3.REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0304,

Hide Display 51441 4.REMOVE NO. 1 ENGINE UNDER COVER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0003,

Hide Display 51420 5.REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0004,

Hide Display 53737D 6.REMOVE FRONT FENDER APRON SEAL LH

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0141,

Hide Display 7.DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

Remove the refill plug and gasket from the rear transaxle case sub-assembly.

Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle case sub-assembly, and drain the fluid.

2.375,0.844 2.656,0.844 true 2.219,0.771 2.448,1 0.229,0.229 10 false *1

*1	Overflow (CVT) Tube

Using a 6 mm hexagon socket wrench, remove the overflow (CVT) tube from the transaxle case sub-assembly.

HINT:: Removing the overflow (CVT) tube will drain all fluid in the transaxle case sub-assembly.

Using a 6 mm hexagon socket wrench, install the overflow (CVT) tube to the transaxle case sub-assembly.

Torque:: 0.8 N*m (8 kgf*cm, 7 in.*lbf)

Using a 10 mm hexagon socket wrench, temporarily install the overflow plug and gasket to the transaxle case sub-assembly.

HINT:: Reuse the old gasket as the overflow plug will be removed again to adjust the fluid level.

Temporarily install the gasket and refill plug to the rear transaxle case sub-assembly.

HINT:: Reuse the old gasket as the refill plug will be removed again to adjust the fluid level.

Hide Display 12601B 8.REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0288,

Hide Display 17751 9.REMOVE NO. 1 INLET AIR CLEANER

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL202304,999999,_51,_083058,_0401818,RM100000002AC3Q_01_0024,

Hide Display 10.REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>THROTTLE BODY>REMOVAL202304,999999,_51,_083058,_0401818,RM100000002AC3Q_01_0023,

Hide Display 89661 11.REMOVE ECM

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL202409,999999,_51,_083058,_0401822,RM100000002NRO9_01_0003,

Hide Display 74404B 12.REMOVE BATTERY CLAMP SUB-ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202409,999999,_51,_083059,_0403046,RM100000002NRBV_01_0256,

Hide Display 82121 13.DISCONNECT ENGINE WIRE

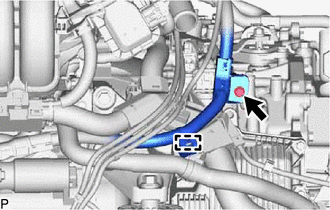

Remove the bolt to disconnect the engine wire from the continuously variable transaxle assembly.

Detach the clamp.

Remove the bolt to disconnect the engine wire from the continuously variable transaxle assembly.

Detach the 3 clamps to disconnect the engine wire from the continuously variable transaxle assembly.

Hide Display 12361 14.REMOVE FRONT ENGINE MOUNTING INSULATOR

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>ACTIVE CONTROL ENGINE MOUNT (for Front Side)>REMOVAL201910,999999,_51,_083058,_0401820,RM100000001JDU7_01_0002,

Hide Display 16261G 15.DISCONNECT NO. 1 WATER BY-PASS HOSE

Click hereDrivetrain>K121F (CVT)>OIL COOLER>REMOVAL202409,999999,_52,_138817,_0584981,RM100000002NGKH_02_0050,

Hide Display 32942N 16.REMOVE NO. 1 OIL COOLER OUTLET HOSE

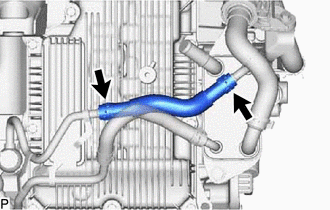

Slide the 2 hose clips and remove the No. 1 oil cooler outlet hose from the transmission oil cooler and oil cooler elbow sub-assembly.

Hide Display 32941R 17.REMOVE OIL COOLER INLET HOSE

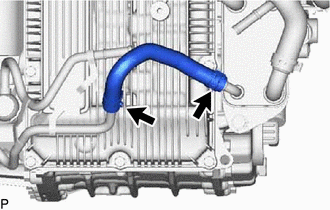

Slide the 2 hose clips and remove the oil cooler inlet hose from the transmission oil cooler and oil cooler elbow sub-assembly.

Hide Display 32901L 18.REMOVE OIL COOLER ELBOW SUB-ASSEMBLY

Click hereDrivetrain>K121F (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE UNIT>DISASSEMBLY202304,999999,_52,_138817,_0584976,RM1000000029IHV_03_0102,

Hide Display 35015Y 19.REMOVE TRANSAXLE SIDE COVER SUB-ASSEMBLY

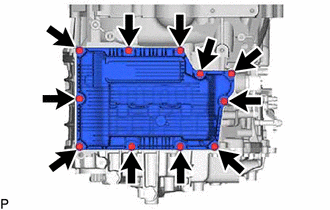

Remove the 11 bolts and transaxle side cover sub-assembly from the transaxle case sub-assembly.

Remove the O-ring from the transaxle side cover sub-assembly.
