EXTERIOR PANELS / TRIM  REAR DOOR WINDOW FRAME MOULDING  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear door window frame moulding are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
·

Rear door glass sub-assembly LH

·

Rear door glass sub-assembly RH

·

Rear door glass run LH

·

Rear door glass run RH


Initialize power window control system
·

Auto up and down function

·

Jam protection function

·

Catch protection function

·

Remote control function

·

Wireless transmitter-linked function

·

Key-linked function

·

Key-off operation function

·

Window open warning function


(Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system


·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power back door function Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

When performing removal for the rear door window frame moulding, disconnect the negative (-) auxiliary battery terminal after fully opening the rear door glass.



Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
·

Rear door glass sub-assembly LH

·

Rear door glass sub-assembly RH

·

Rear door glass run LH

·

Rear door glass run RH


Initialize power window control system
·

Auto up and down function

·

Jam protection function

·

Catch protection function

·

Remote control function

·

Wireless transmitter-linked function

·

Key-linked function

·

Key-off operation function

·

Window open warning function


(Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system


·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

When performing removal for the rear door window frame moulding, disconnect the negative (-) auxiliary battery terminal after fully opening the rear door glass.



PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:
B394718

·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



a.

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL


b.

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>REMOVAL


c.

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL


d.

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>REMOVAL


e.

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>REMOVAL


Hide 5.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY

Hide 67408E 12.REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY

Hide 67872 16.REMOVE REAR DOOR WEATHERSTRIP LH

a.

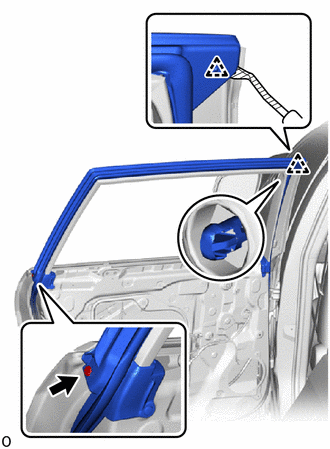

B524170C02
0,0 0,0 false
V100155

Protective Tape


Using a clip remover with its tip wrapped with protective tape, detach the clip and remove the clip.


b.

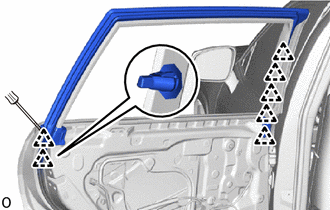

B524171

Using a screwdriver with its tip wrapped with protective tape, detach the clip and remove part of the rear door weatherstrip LH.


Hide 75762B 17.REMOVE REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)

HINT:

When removing the rear door window frame moulding LH (center pillar side), if the double-sided tape is difficult to remove, heat the adhesive of the rear door window frame moulding LH (center pillar side) and rear door panel using a heat light.


Standard:
Item Temperature
Rear Door Panel 40 to 60°C (104 to 140°F)
Rear Door Window Frame Moulding LH (Center Pillar Side) 20 to 30°C (68 to 86°F)


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the rear door panel and rear door window frame moulding LH (center pillar side) excessively.


a.

Using a heat light, heat the rear door panel and rear door window frame moulding LH (center pillar side).


b.

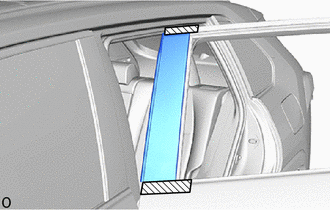

B524088C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear door window frame moulding LH (center pillar side) as shown in the illustration.


c.
B524089

Using moulding remover D, detach the clip.


d.
B524189C01
0.792,1.438 1.563,1.438 true 0.542,1.333 0.729,1.521 0.188,0.188 10 true *a
*a Double-sided Tape


Using a scraper, start from the top and remove the double-sided tape from the back of the rear door window frame moulding LH (center pillar side).

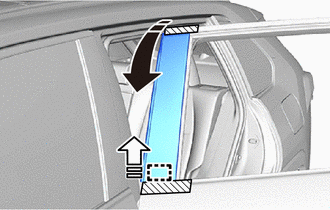

e.
B524090C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Detach the guide and remove the rear door window frame moulding LH (center pillar side).


Hide 67846A 18.REMOVE REAR DOOR FRONT OUTSIDE SEAL LH

a.

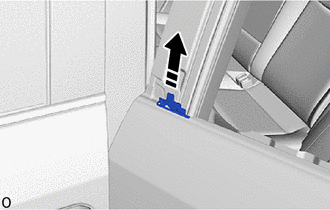

B524091C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the rear door front outside seal LH.


Hide 75766B 19.REMOVE REAR DOOR WINDOW FRAME MOULDING LH (REAR PILLAR SIDE)

a.

Insert a 4.0 mm (0.157 in.) drill bit into a drill.


b.
B360296C07
0.542,0.906 0.833,1.219 false 0.875,1.156 1.188,1.313 0.313,0.156 10 false *a 0.333,1.5 0.49,1.698 0.156,0.198 10 false A
*a Tape


Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

Standard Measurement:
Area Measurement
A 5.0 mm (0.197 in.)


NOTICE:

Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.



c.

Lightly press the drill bit against the rivets to drill off the rivet flanges, and remove the 3 rivets.

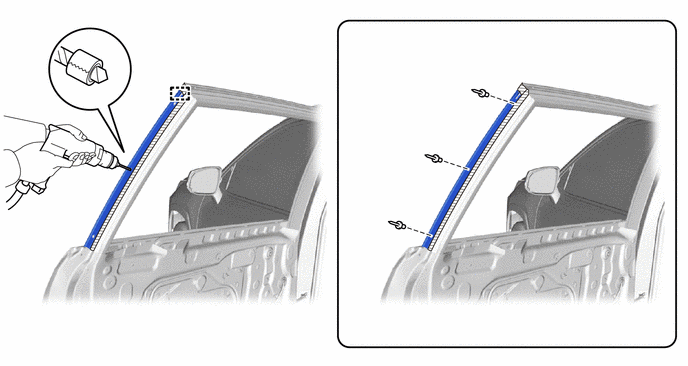

B524093

CAUTION:

Be careful of the drilled rivets, as they may be hot.


NOTICE:
·

Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.

·

Prying the rivets with the drill may damage the rivet installation holes or drill bit.




d.

Detach the guide to remove the rear door window frame moulding LH (rear pillar side) from the rear door frame.


e.

Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.


Hide 75764A 20.REMOVE REAR DOOR UPPER WINDOW FRAME MOULDING LH

a.

Insert a 4.0 mm (0.157 in.) drill bit into a drill.


b.
B360296C07
0.542,0.906 0.833,1.219 false 0.875,1.156 1.188,1.313 0.313,0.156 10 false *a 0.333,1.5 0.49,1.698 0.156,0.198 10 false A
*a Tape


Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

Standard Measurement:
Area Measurement
A 5.0 mm (0.197 in.)


NOTICE:

Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.



c.

Lightly press the drill bit against the rivets to drill off the rivet flanges, and remove the 4 rivets.

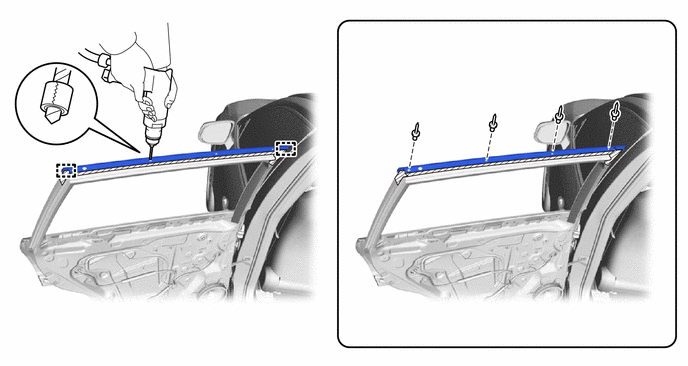

B524095

CAUTION:

Be careful of the drilled rivets, as they may be hot.


NOTICE:
·

Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.

·

Prying the rivets with the drill may damage the rivet installation holes or drill bit.




d.

Detach the guide to remove the rear door upper window frame moulding LH from the rear door frame.


e.

Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.
