EXTERIOR PANELS / TRIM  REAR DOOR BELT MOULDING  REMOVAL

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear door belt moulding are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
· Rear door glass sub-assembly LH · Rear door glass sub-assembly RH · Rear door glass run LH · Rear door glass run RH	Initialize power window control system	· Auto up and down function · Jam protection function · Catch protection function · Remote control function · Wireless transmitter-linked function · Key-linked function · Key-off operation function · Window open warning function	(202409,999999,_59,_083107,_0400960,RM100000002NUSM,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane tracing assist system	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door function	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

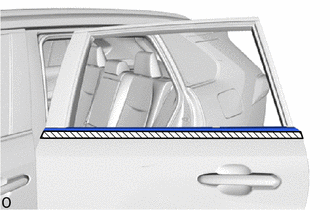

When performing removal for the rear door belt moulding, disconnect the negative (-) auxiliary battery terminal after fully opening the rear door glass.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure	Effect/Inoperative Function when Necessary Procedures are not Performed	Necessary Procedures	Link
· Rear door glass sub-assembly LH · Rear door glass sub-assembly RH · Rear door glass run LH · Rear door glass run RH	Initialize power window control system	· Auto up and down function · Jam protection function · Catch protection function · Remote control function · Wireless transmitter-linked function · Key-linked function · Key-off operation function · Window open warning function	(202409,999999,_59,_083107,_0400960,RM100000002NUSM,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
Lane tracing assist system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Power back door system
Power back door function*	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

When performing removal for the rear door belt moulding, disconnect the negative (-) auxiliary battery terminal after fully opening the rear door glass.
