RM36D0EC _58 Vehicle Interior _083092 DOOR LOCK _0403680 FRONT DOOR LOCK A

DOOR LOCK  FRONT DOOR LOCK  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the front door lock assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
·

Power window regulator motor assembly LH

·

Power window regulator motor assembly RH

·

Front door window regulator sub-assembly LH

·

Front door window regulator sub-assembly RH

·

Front door glass sub-assembly LH

·

Front door glass sub-assembly RH

·

Front door glass run LH

·

Front door glass run RH


·

Auto up and down function

·

Jam protection function

·

Catch protection function

·

Remote control function

·

Wireless transmitter-linked function

·

Key-linked function

·

Key-off operation function

·

Window open warning function


Initialize power window control system (Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system


·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power back door function Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
·

Power window regulator motor assembly LH

·

Power window regulator motor assembly RH

·

Front door window regulator sub-assembly LH

·

Front door window regulator sub-assembly RH

·

Front door glass sub-assembly LH

·

Front door glass sub-assembly RH

·

Front door glass run LH

·

Front door glass run RH


·

Auto up and down function

·

Jam protection function

·

Catch protection function

·

Remote control function

·

Wireless transmitter-linked function

·

Key-linked function

·

Key-off operation function

·

Window open warning function


Initialize power window control system (Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system


·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -

·

Use the same procedure for the RH and LH sides.

·

The procedure below is for the LH side.

·

When removing the front door glass sub-assembly LH, move the front door glass sub-assembly LH to the lowest position before disconnecting the negative (-) auxiliary battery terminal.



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
B475753

Be sure to read Precaution thoroughly before servicing.



NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the auxiliary negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:
B394718

·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.








Hide 5.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

Hide 6.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

Hide 69220 17.REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH (for Driver Side)

Hide 18.REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY LH (for Driver Side)

Hide 69312 19.REMOVE FRONT DOOR LOCK OPEN ROD LH

a.

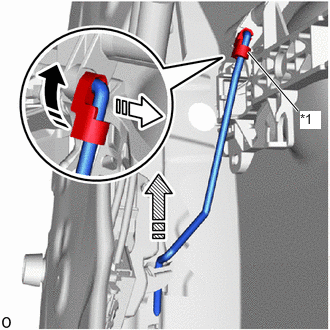

B522042C01
3.104,1.156 2.583,0.542 true 3.125,1.156 3.344,1.344 0.219,0.188 10 true *1
*1 Snap
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V113149

Remove in this Direction (3)


Detach the snap as shown in the illustration.


b.

Remove the front door lock open rod LH in the direction indicated by the arrow show in the illustration.


Hide 69040A 20.REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH

a.

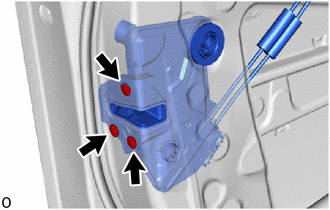

B522045

Using a T30 "TORX" socket wrench, remove the 3 "TORX" screws and front door lock with motor assembly LH.


Hide 69318C 21.REMOVE DOOR LOCK WIRING HARNESS SEAL

a.

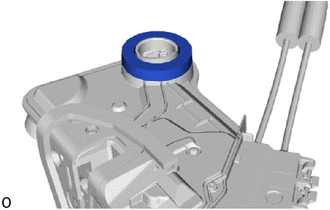

B522046

When reusing front door lock with motor assembly LH:

i.

Remove the door lock wiring harness seal from the front door lock with motor assembly LH.



Hide 69036A 22.REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY LH

a.

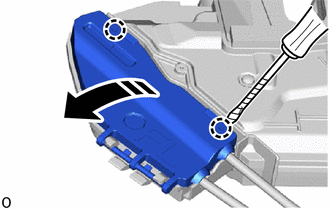

B522047C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a screwdriver with its tip wrapped with protective tape, detach the claw and open the front door lock cover sub-assembly LH.


b.

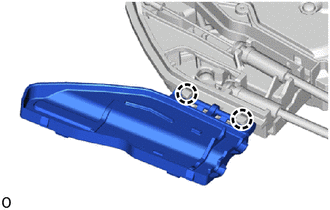

B522048

Detach the claw and remove the front door lock cover sub-assembly LH.


Hide 69720D 23.REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY

a.

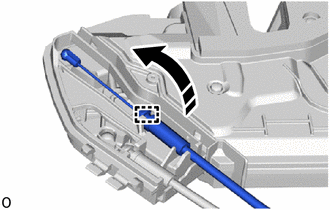

B522049C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clamp and remove the front door lock remote control cable assembly as shown in the illustration.


Hide 69760B 24.REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY

a.

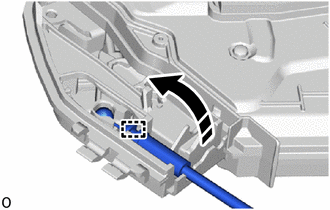

B522050C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clamp and remove the front door inside locking cable assembly as shown in the illustration.
