CRUISE CONTROL DYNAMIC RADAR CRUISE CONTROL SYSTEM(for Gasoline Model) Distance Control Switch Circuit
DESCRIPTION
The vehicle-to-vehicle distance control switch is used to set the distance for vehicle-to-vehicle distance control mode. The vehicle-to-vehicle distance control switch is installed in the steering pad switch assembly. The vehicle-to-vehicle distance set value can be changed by operating the vehicle-to-vehicle distance control switch while the dynamic radar cruise control system is controlling vehicle speed in vehicle-to-vehicle distance control mode.
WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
- ·
Before replacing the ECM, refer to the Service Bulletin.
·The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.
for GTMC Made: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>PRECAUTION202405,999999,_58,_083100,_0694959,RM100000002LV12,
for SFTM Made: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>PRECAUTION202405,202409,_58,_083100,_0694957,RM100000002LV40,202409,999999,_58,_083100,_0694957,RM100000002NSNT,
·When replacing the forward recognition camera, always replace it with a new one. If a forward recognition camera which was installed to another vehicle is used, the information stored in the forward recognition camera will not match the information from the vehicle and a DTC may be stored.
·When the forward recognition camera is replaced with a new one or the windshield glass is replaced or removed/installed, make sure to perform beam axis adjustment for the forward recognition camera and clear the vehicle control history for each system.
- HINT:
-
Forward recognition camera axis alignment can be performed by using either One Time Recognition, Sequential Recognition or Driving Adjustment.
-
One Time Recognition: Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>TARGET ADJUSTMENT(ONE TIME RECOGNITION)202405,202409,_51,_083055,_0401005,RM100000002ME7B,202409,999999,_51,_083055,_0401005,RM100000002NTD0,
-
Sequential Recognition: Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>TARGET ADJUSTMENT(SEQUENTIAL RECOGNITION)202405,202409,_51,_083055,_0401005,RM100000002ME7D,202409,999999,_51,_083055,_0401005,RM100000002NTD3,
-
Driving Adjustment: Click hereEngine / Hybrid System>CRUISE CONTROL>FRONT CAMERA>DRIVING ADJUSTMENT202405,202409,_51,_083055,_0401005,RM100000002ME7F,202409,999999,_51,_083055,_0401005,RM100000002NTD4,
PROCEDURE
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Powertrain / Radar Cruise2 / Data List.
Read the Data List according to the display on the GTS.
- Powertrain > Radar Cruise2 > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note Vehicle-to-vehicle Distance Control Switch Vehicle-to-vehicle distance control switch signal ON or OFF ON: Vehicle-to-vehicle distance control switch pushed
OFF: Vehicle-to-vehicle distance control switch not pushed-
- Powertrain > Radar Cruise2 > Data List
-
Tester Display Vehicle-to-vehicle Distance Control Switch - 50003 426 4
- OK:
The value of the Data List item changes according to the operation of the vehicle-to-vehicle distance control switch.
- Result:
Proceed to OK NG
OK
NG
Remove the steering pad switch assembly.
Inspect the steering pad switch assembly.
- Result:
Proceed to OK NG
OK
NG
Remove the spiral cable sub-assembly.
Inspect the spiral cable sub-assembly.
- Result:
Proceed to OK NG
OK
NG
Disconnect the G20 spiral cable sub-assembly connector.
Disconnect the P8 forward recognition camera connector.
Disconnect the A116*1 or A125*2 ECM connector.
*1: for SFTM Made
*2: for GTMC Made
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
for SFTM Made Tester Connection Condition Specified Condition G20-6 (DIST) - P8-3 (LKSW) Always Below 1 Ω G20-2 (ECC) - A116-92 (ECCS) Always Below 1 Ω G20-6 (DIST) or P8-3 (LKSW) - Body ground Always 10 kΩ or higher G20-2 (ECC) or A116-92 (ECCS) - Body ground Always 10 kΩ or higher
for GTMC Made Tester Connection Condition Specified Condition G20-6 (DIST) - P8-3 (LKSW) Always Below 1 Ω G20-2 (ECC) - A125-92 (ECCS) Always Below 1 Ω G20-6 (DIST) or P8-3 (LKSW) - Body ground Always 10 kΩ or higher G20-2 (ECC) or A125-92 (ECCS) - Body ground Always 10 kΩ or higher
Disconnect the A116*1 or A125*2 ECM connector.
*1: for SFTM Made
*2: for GTMC Made
Connect the P8 forward recognition camera connector.
Connect the G20 spiral cable sub-assembly connector.
- Result:
Proceed to OK NG
OK
NG
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
for SFTM Made Tester Connection Condition Specified Condition A116-22 (E1) - Body ground Always Below 1 Ω
for GTMC Made Tester Connection Condition Specified Condition A125-22 (E1) - Body ground Always Below 1 Ω
Connect the ECM connector.
- Result:
Proceed to OK NG
OK
NG
Disconnect the A116*1 or A125*2 ECM connector.
*1: for SFTM Made
*2: for GTMC Made
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
for SFTM Made Tester Connection Condition Specified Condition A116-92 (ECCS) - A116-22 (E1) Always Below 1 Ω
for GTMC Made Tester Connection Condition Specified Condition A125-92 (ECCS) - A125-22 (E1) Always Below 1 Ω
Connect the A116*1 or A125*2 ECM connector.
*1: for SFTM Made
*2: for GTMC Made
- Result:
Proceed to OK NG
OK
NG

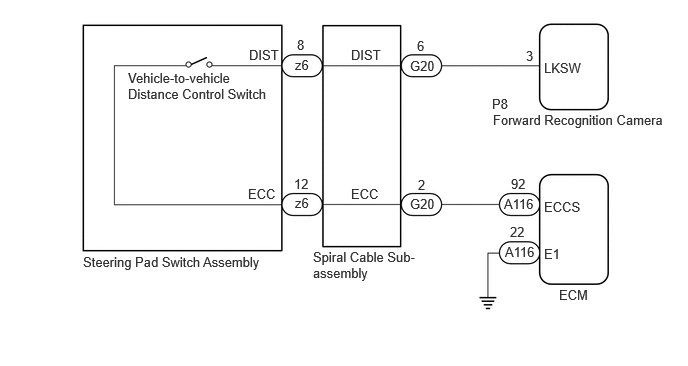

for M20C-FKS:

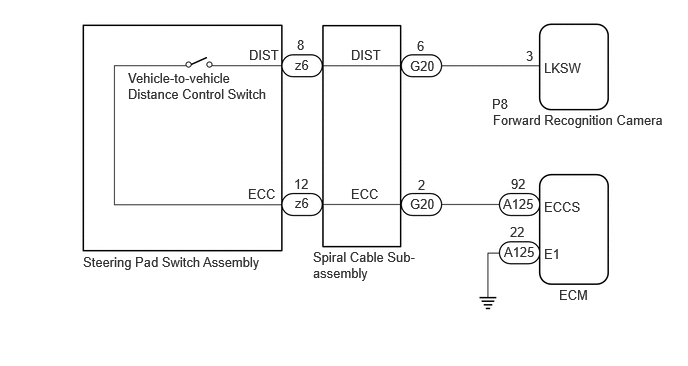

for M20D-FKS:
