RM36D0EC _56 Audio / Visual / Telematics _083086 AUDIO / VIDEO _0593011 AUDIO AND VISUAL SYSTEM C

AUDIO / VIDEO  AUDIO AND VISUAL SYSTEM  B15C371  Speaker Output Short Actuator Stuck


DESCRIPTION

This DTC is stored when the radio and display receiver assembly detects a short in a speaker circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
B15C371 Speaker Output Short Actuator Stuck When any of the following conditions is met:
(2 trip detection logic)
·

A short is detected in the speaker output circuit

·

Internal direct current is detected in the AMP power IC


·

Harness or connector

·

Radio and display receiver assembly

·

Telematics transceiver

·

Speaker


Navigation System A

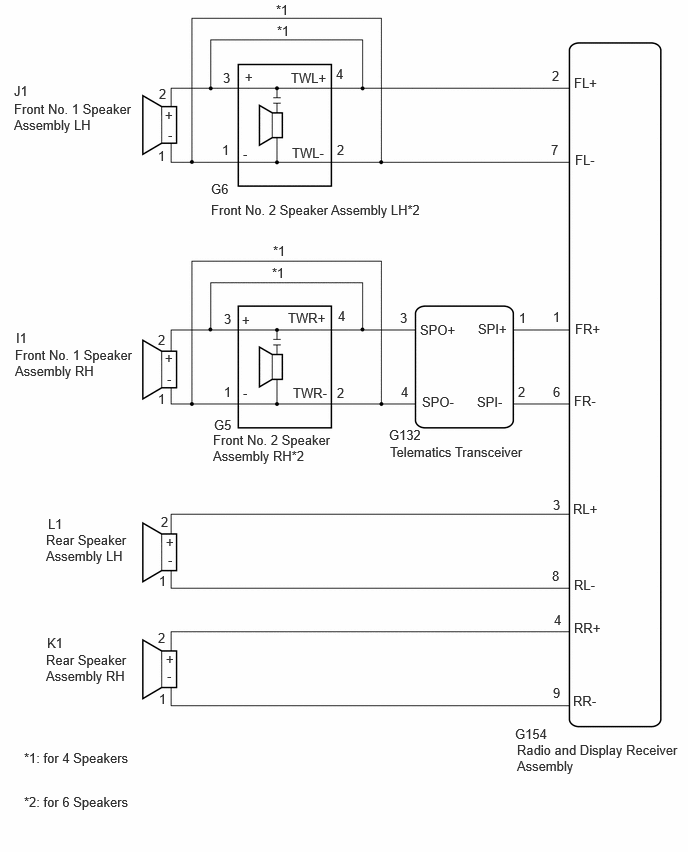

WIRING DIAGRAM

E513315E01
5.99,3.344 6.323,3.552 0.333,0.208 10 false FR+ 5.76,3.219 6.177,3.427 0.417,0.208 10 false 1 5.76,4 5.917,4.177 0.156,0.177 10 false 6 5.75,0.708 6.167,0.917 0.417,0.208 10 false 2 5.365,7.563 5.958,7.75 0.594,0.188 10 false G154 5.385,7.729 7.073,8.125 1.688,0.396 10 false Radio and Display Receiver Assembly 3.5,0.688 3.917,0.896 0.417,0.208 10 false 4 3.51,1.479 3.927,1.688 0.417,0.208 10 false 2 1.646,1.542 2.063,1.75 0.417,0.208 10 false 1 2.323,0.729 2.74,0.938 0.417,0.208 10 false 3 3.031,0.729 3.594,0.958 0.563,0.229 10 false TWL+ 0.146,0.865 0.563,1.073 0.417,0.208 10 false J1 0.146,1.052 1.427,1.417 1.281,0.365 10 false Front No. 1 Speaker Assembly LH 0.167,3.438 0.583,3.646 0.417,0.208 10 false I1 0.5,5.375 0.917,5.583 0.417,0.208 10 false L1 0.49,6.615 0.906,6.823 0.417,0.208 10 false K1 0.156,3.615 1.417,3.99 1.26,0.375 10 false Front No. 1 Speaker Assembly RH 0.479,5.542 1.365,5.917 0.885,0.375 10 false Rear Speaker Assembly LH 0.479,6.792 1.375,7.167 0.896,0.375 10 false Rear Speaker Assembly RH 2.552,0.719 2.969,0.927 0.417,0.208 10 false + 2.333,3.24 2.75,3.448 0.417,0.208 10 false 3 2.333,4 2.75,4.208 0.417,0.208 10 false 1 3.51,4.01 3.927,4.219 0.417,0.208 10 false 2 3.521,3.208 3.938,3.417 0.417,0.208 10 false 4 3,3.229 3.531,3.448 0.531,0.219 10 false TWR+ 4.969,4.104 5.385,4.313 0.417,0.208 10 false SPI- 2.531,4.01 2.677,4.208 0.146,0.198 10 false - 2.521,3.25 2.938,3.458 0.417,0.208 10 false + 5.979,4.094 6.26,4.302 0.281,0.208 10 false FR- 5.979,0.781 6.271,0.99 0.292,0.208 10 false FL+ 5.99,1.583 6.25,1.792 0.26,0.208 10 false FL- 1.677,5.354 2.094,5.563 0.417,0.208 10 false 2 1.646,6.563 2.063,6.771 0.417,0.208 10 false 2 1.656,5.969 2.073,6.177 0.417,0.208 10 false 1 1.656,7.198 2.073,7.406 0.417,0.208 10 false 1 5.969,7.219 6.26,7.406 0.292,0.188 10 false RR- 5.979,6.458 6.313,6.646 0.333,0.188 10 false RR+ 5.979,6.01 6.25,6.219 0.271,0.208 10 false RL- 5.969,5.219 6.271,5.427 0.302,0.208 10 false RL+ 5.76,5.177 6.177,5.385 0.417,0.208 10 false 3 5.75,5.917 6.167,6.125 0.417,0.208 10 false 8 5.771,6.375 6.188,6.583 0.417,0.208 10 false 4 5.76,7.135 6.177,7.344 0.417,0.208 10 false 9 1.646,3.458 1.833,3.677 0.188,0.219 10 false 2 1.646,4.073 2.063,4.281 0.417,0.208 10 false 1 3.052,4.01 3.583,4.229 0.531,0.219 10 false TWR- 4.396,4.104 4.813,4.313 0.417,0.208 10 false SPO- 4.979,3.344 5.396,3.552 0.417,0.208 10 false SPI+ 4.375,3.354 4.792,3.563 0.417,0.208 10 false SPO+ 4.167,3.229 4.583,3.438 0.417,0.208 10 false 3 4.177,4 4.333,4.188 0.156,0.188 10 false 4 5.406,3.229 5.604,3.417 0.198,0.188 10 false 1 5.396,4 5.521,4.198 0.125,0.198 10 false 2 3.042,1.51 3.604,1.74 0.563,0.229 10 false TWL- 2.531,1.521 2.948,1.729 0.417,0.208 10 false - 1.656,0.896 2.073,1.104 0.417,0.208 10 false 2 2.313,1.479 2.729,1.688 0.417,0.208 10 false 1 2.198,1.885 2.729,2.104 0.531,0.219 10 false G6 2.198,2.104 4.604,2.323 2.406,0.219 10 false Front No. 2 Speaker Assembly LH*2 2.229,4.344 2.76,4.563 0.531,0.219 10 false G5 2.219,4.5 3.5,4.875 1.281,0.375 10 false Front No. 2 Speaker Assembly RH*2 4.063,4.625 5.646,4.854 1.583,0.229 10 false Telematics Transceiver 4.052,4.448 4.594,4.615 0.542,0.167 10 false G132 1.719,1.115 2.135,1.323 0.417,0.208 10 false + 1.75,1.323 2.167,1.531 0.417,0.208 10 false - 1.719,3.646 2.135,3.854 0.417,0.208 10 false + 1.729,5.563 2.146,5.771 0.417,0.208 10 false + 1.729,6.781 2.146,6.99 0.417,0.208 10 false + 1.74,3.865 2.156,4.073 0.417,0.208 10 false - 1.75,5.75 2.167,5.958 0.417,0.208 10 false - 1.74,6.958 2.156,7.167 0.417,0.208 10 false - 5.74,1.479 6.156,1.688 0.417,0.208 10 false 7 2.885,0.24 3.083,0.427 0.198,0.188 10 false *1 2.875,0.021 3.073,0.208 0.198,0.188 10 false *1 2.833,2.76 3.031,2.948 0.198,0.188 10 false *1 2.844,2.531 3.042,2.719 0.198,0.188 10 false *1 0.25,7.813 1.833,8.042 1.583,0.229 10 false *1: for 4 Speakers 0.25,8.271 1.833,8.5 1.583,0.229 10 false *2: for 6 Speakers

CAUTION / NOTICE / HINT

NOTICE:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM>PRECAUTION


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - EACH SPEAKER OR TELEMATICS TRANSCEIVER)
a.

Disconnect the G154 radio and display receiver assembly connector.


b.

Disconnect the G5 and G6 front No. 2 speaker assembly connectors.*

*: for 6 Speakers



c.

Disconnect the J1 and I1 front No. 1 speaker assembly connectors.


d.

Disconnect the L1 and K1 rear speaker assembly connectors.


e.

Disconnect the G132 telematics transceiver connector.


f.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

*1: for 6 Speakers

*2: for 4 Speakers

G154-2 (FL+) or G6-4 (TWL+) - Body ground*1 Always 10 kΩ or higher
G154-7 (FL-) or G6-2 (TWL-) - Body ground*1 Always 10 kΩ or higher
J1-2 (+) or G6-3 (+) - Body ground*1 Always 10 kΩ or higher
J1-1 (-) or G6-1 (-) - Body ground*1 Always 10 kΩ or higher
G154-2 (FL+) or J1-2 (+) - Body ground*2 Always 10 kΩ or higher
G154-7 (FL-) or J1-1 (-) - Body ground*2 Always 10 kΩ or higher
G154-1 (FR+) or G132-1 (SPI+) - Body ground Always 10 kΩ or higher
G154-6 (FR-) or G132-2 (SPI-) - Body ground Always 10 kΩ or higher
G132-3 (SPO+) or G5-4 (TWR+) - Body ground*1 Always 10 kΩ or higher
G132-4 (SPO-) or G5-2 (TWR-) - Body ground*1 Always 10 kΩ or higher
I1-2 (+) or G5-3 (+) - Body ground*1 Always 10 kΩ or higher
I1-1 (-) or G5-1 (-) - Body ground*1 Always 10 kΩ or higher
G132-3 (SPO+) or I1-2 (+) - Body ground*2 Always 10 kΩ or higher
G132-4 (SPO-) or I1-1 (-) - Body ground*2 Always 10 kΩ or higher
G154-3 (RL+) or L1-2 (+) - Body ground Always 10 kΩ or higher
G154-8 (RL-) or L1-1 (-) - Body ground Always 10 kΩ or higher
G154-4 (RR+) or K1-2 (+) - Body ground Always 10 kΩ or higher
G154-9 (RR-) or K1-1 (-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

2.INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS AND CONNECTOR

3.CHECK MODEL
a.

Choose the model to be inspected.


Result:
Result Proceed to
for 6 Speakers A
for 4 Speakers B



A

4.INSPECT FRONT NO. 2 SPEAKER ASSEMBLY

B

5.INSPECT REAR SPEAKER ASSEMBLY
6.INSPECT TELEMATICS TRANSCEIVER
a.
E418548C47
1.906,1.177 2.51,0.698 true 1.5,1.583 1.063,1.938 true 1.49,1.177 0.833,0.688 true 1.927,1.573 2.354,1.917 true 2.396,1.917 3.01,2.115 0.615,0.198 10 false SPO+ 2.594,0.615 3.208,0.813 0.615,0.198 10 false SPI+ 0.5,0.563 1.115,0.76 0.615,0.198 10 false SPI- 0.677,1.917 1.292,2.115 0.615,0.198 10 false SPO- 0.125,0.125 0.438,0.323 0.313,0.198 10 false *a
*a Component without harness connected
(Telematics Transceiver)


Disconnect the telematics transceiver connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (SPI+) - 3 (SPO+) Always Below 1 Ω
2 (SPI-) - 4 (SPO-) Always Below 1 Ω
1 (SPI+) - 2 (SPI-) Always 10 kΩ or higher
3 (SPO+) - 4 (SPO-) Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

7.CHECK FOR DTC

NG

REPLACE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


7.CHECK FOR DTC
a.

Clear the DTCs.

Body Electrical > Navigation System > Clear DTCs
50002 496

b.

Turn the ignition switch off.


c.

Check for DTCs and proceed to the following step.

Body Electrical > Navigation System > Trouble Codes
50001 496

Result:
Result Proceed to
DTCs are not output A
DTC B15C371 is output B



A

END

B

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL
