M20D-FKS ENGINE CONTROL  SFI SYSTEM  P219519  A/F (O2) Sensor Signal Biased/Stuck Lean Bank 1 Sensor 1 Circuit Current Above Threshold  P219524  A/F (O2) Sensor Signal Biased/Stuck Lean Bank 1 Sensor 1 Signal Stuck High  P219618  A/F (O2) Sensor Signal Biased/Stuck Rich Bank 1 Sensor 1 Circuit Current Below Threshold  P219623  A/F (O2) Sensor Signal Biased/Stuck Rich Bank 1 Sensor 1 Signal Stuck Low


DESCRIPTION

Refer to DTC P003012.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>P003012

HINT:

Although the DTC titles say O2 sensor, these DTCs relate to the air fuel ratio sensor (sensor 1).


DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P219519 A/F (O2) Sensor Signal Biased/Stuck Lean Bank 1 Sensor 1 Circuit Current Above Threshold While the fuel-cut operation is performed (during vehicle deceleration), the air fuel ratio sensor (sensor 1) current is 2.2 mA or more for 3 seconds (2 trip detection logic).
·

Open or short in air fuel ratio sensor (sensor 1) circuit

·

Air fuel ratio sensor (sensor 1)

·

Intake system

·

Gas leak from exhaust system

·

Fuel pressure (for low pressure side)

·

Fuel pressure (for high pressure side)

·

Port fuel injector assembly

·

Direct fuel injector assembly

·

Fuel system

·

EGR valve assembly

·

ECM


Comes on DTC stored SAE: P2195
P219524 A/F (O2) Sensor Signal Biased/Stuck Lean Bank 1 Sensor 1 Signal Stuck High Both of the following conditions are met for 5 seconds or more (2 trip detection logic):
1.

Air fuel ratio sensor (sensor 1) current is more than 0.1883 mA.

2.

Air fuel ratio sensor (sensor 2) current is less than 0.0551 mA.


·

Open or short in air fuel ratio sensor (sensor 1) circuit

·

Air fuel ratio sensor (sensor 1)

·

Intake system

·

Gas leak from exhaust system

·

Fuel pressure (for low pressure side)

·

Fuel pressure (for high pressure side)

·

Port fuel injector assembly

·

Direct fuel injector assembly

·

Fuel system

·

EGR valve assembly

·

ECM


Comes on DTC stored SAE: P2195
P219618 A/F (O2) Sensor Signal Biased/Stuck Rich Bank 1 Sensor 1 Circuit Current Below Threshold While the fuel-cut operation is performed (during vehicle deceleration), the air fuel ratio sensor (sensor 1) current is less than 0.47 mA for 3 seconds (2 trip detection logic).
·

Open or short in air fuel ratio sensor (sensor 1) circuit

·

Air fuel ratio sensor (sensor 1)

·

Intake system

·

Gas leak from exhaust system

·

Fuel pressure (for low pressure side)

·

Fuel pressure (for high pressure side)

·

Port fuel injector assembly

·

Direct fuel injector assembly

·

Fuel system

·

EGR valve assembly

·

ECM


Comes on DTC stored SAE: P2196
P219623 A/F (O2) Sensor Signal Biased/Stuck Rich Bank 1 Sensor 1 Signal Stuck Low Both of the following conditions are met for 5 seconds or more (2 trip detection logic):
1.

Air fuel ratio sensor (sensor 1) current is less than -0.1883 mA.

2.

Air fuel ratio sensor (sensor 2) current is -0.0851 mA or more.


·

Open or short in air fuel ratio sensor (sensor 1) circuit

·

Air fuel ratio sensor (sensor 1)

·

Intake system

·

Gas leak from exhaust system

·

Fuel pressure (for low pressure side)

·

Fuel pressure (for high pressure side)

·

Port fuel injector assembly

·

Direct fuel injector assembly

·

Fuel system

·

EGR valve assembly

·

ECM


Comes on DTC stored SAE: P2196

HINT:
·

When any of these DTCs are stored, check the air fuel ratio sensor (sensor 1) current output by entering the following menus on the GTS: Powertrain / Engine / Data List / A/F (O2) Sensor Current B1S1.

·

Short-term fuel trim values can also be read using the GTS.

·

If an air fuel ratio sensor (sensor 1) malfunction is detected, the ECM will store a DTC.



MONITOR DESCRIPTION

Air Fuel Ratio Sensor (Sensor 1) Low/High Current:

Under air fuel ratio feedback control, If the air fuel ratio sensor (sensor 1) output current is less than -0.1883 mA (very rich condition) for 5 seconds despite the air fuel ratio sensor (sensor 2) output current being -0.0851 mA or more, the ECM stores DTC P219623. Alternatively, if the air fuel ratio sensor (sensor 1) output current is more than 0.1883 mA (very lean condition) for 5 seconds despite the air fuel ratio sensor (sensor 2) output current being less than 0.0551 mA, DTC P219524 is stored.


Air Fuel Ratio Sensor (Sensor 1) Limit Current:

The ECM monitors the air fuel ratio sensor (sensor 1) current during fuel-cut and detects any abnormal current values.

If the air fuel ratio sensor (sensor 1) output is 2.2 mA or more for more than 3 seconds of cumulative time, the ECM interprets this as a malfunction in the air fuel ratio sensor (sensor 1) and stores DTC P219519 (stuck on high side). If the air fuel ratio sensor (sensor 1) output is less than 0.47 mA for more than 3 seconds of cumulative time, the ECM stores DTC P219618 (stuck on low side).


A284399E07
2.385,2.281 2.188,1.594 2.188,1.594 2.323,1.594 false 4.406,2.281 4.26,1.667 4.26,1.667 4.396,1.667 false 5.771,2.281 5.677,1.656 5.677,1.656 5.813,1.656 false 0.177,0.115 3.396,0.333 3.219,0.219 10 false Air Fuel Ratio Sensor (Sensor 1) Limit Current 3.26,0.313 6.521,0.5 3.26,0.188 10 false Cumulative Time "t" = t1 + t2 = 3 seconds or more 1.469,1.208 1.854,1.396 0.385,0.188 10 false OFF 1.49,0.917 1.875,1.104 0.385,0.188 10 false ON 0.646,1.073 1.24,1.281 0.594,0.208 10 false Fuel-cut 0.448,2.833 1.802,3.104 1.354,0.271 10 false High Side Threshold 2.375,1.51 3.729,1.781 1.354,0.271 10 false Delay (3 seconds) 0.49,3.49 1.844,3.76 1.354,0.271 10 false Low Side Threshold 0.479,2.219 1.833,2.49 1.354,0.271 10 false Sensor Current (mA) 4.448,1.563 5.802,1.833 1.354,0.271 10 false Delay (3 seconds) 5.865,1.563 7.073,1.823 1.208,0.26 10 false Delay (3 seconds) 6.01,3.813 6.292,4.031 0.281,0.219 10 false t2 4.708,3.813 4.99,4.031 0.281,0.219 10 false t1 2.385,3.635 3.74,3.906 1.354,0.271 10 false 3 seconds or more 4.708,4.24 6.365,4.427 1.656,0.188 10 false Abnormal Sensor Output 2.417,4.25 4.073,4.438 1.656,0.188 10 false Normal Sensor Output 6.667,4.26 7.031,4.448 0.365,0.188 10 false Time

MONITOR STRATEGY

Required Sensors/Components (Main) Air fuel ratio sensor (sensor 1)
Required Sensors/Components (Related) Air fuel ratio sensor (sensor 2)
Frequency of Operation Continuous: Sensor low/high current
Once per driving cycle: Sensor limit current
Duration 3 seconds: Sensor limit current
5 seconds: Sensor low/high current

TYPICAL ENABLING CONDITIONS

Air Fuel Ratio Sensor (Sensor 1) Low/High Current
Time after engine start 30 seconds or more
Battery voltage 11 V or higher
Air fuel ratio sensor (sensor 1) status Activated
Fuel system status Closed-loop

Air Fuel Ratio Sensor (Sensor 1) Limit Current
Battery voltage 11 V or higher
Engine coolant temperature 75°C (167°F) or higher
Atmospheric pressure 76 kPa(abs) [11 psi(abs)] or higher
Air fuel ratio sensor (sensor 1) status Activated
Continuous time of fuel-cut 3 seconds or more, and less than 10 seconds

TYPICAL MALFUNCTION THRESHOLDS

P219524: Air Fuel Ratio Sensor (Sensor 1) High Current (Lean Side Malfunction)
Air fuel ratio sensor (sensor 2) current Less than 0.0551 mA
Air fuel ratio sensor (sensor 1) current More than 0.1883 mA

P219623: Air Fuel Ratio Sensor (Sensor 1) Low Current (Rich Side Malfunction)
Air fuel ratio sensor (sensor 2) current -0.0851 mA or more
Air fuel ratio sensor (sensor 1) current Less than -0.1883 mA

P219519: Air Fuel Ratio Sensor (Sensor 1) Limit Current (High Side Malfunction)
Duration of following condition 3 seconds or more
Air fuel ratio sensor (sensor 1) current 2.2 mA or more

P219618: Air Fuel Ratio Sensor (Sensor 1) Limit Current (Low Side Malfunction)
Duration of following condition 3 seconds or more
Air fuel ratio sensor (sensor 1) current Less than 0.47 mA

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR



A242051E45

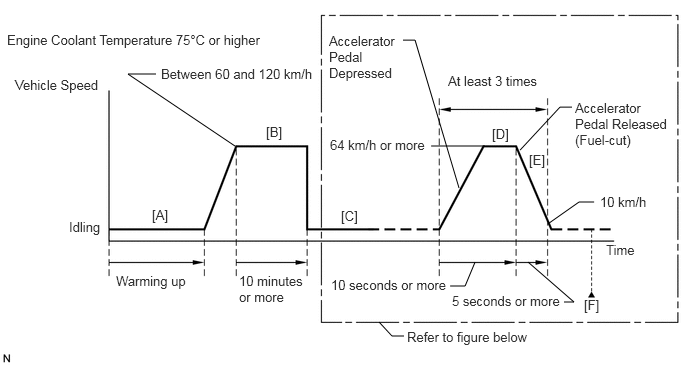

6.188,2.104 6.031,2.104 6.031,2.104 5.719,2.323 false 5.052,1.521 4.49,1.521 false 5.958,1.115 5.833,1.115 5.833,1.115 5.417,1.563 false 4.198,0.417 4.323,0.417 4.323,0.417 4.781,1.958 false 1.625,0.771 1.333,0.771 1.333,0.771 2.448,1.521 false 4.208,3.5 4.083,3.5 4.083,3.5 3.948,3.354 false 5.875,3.146 5.979,3.146 false 5.979,3.146 5.5,2.729 false 4.688,2.979 4.844,2.979 false 4.844,2.979 4.948,2.729 false 0.073,0.333 2.917,0.5 2.844,0.167 10 false Engine Coolant Temperature 75°C or higher 0.156,0.802 1.073,0.969 0.917,0.167 10 false Vehicle Speed 0.719,2.281 1.156,2.542 0.438,0.26 10 false Idling 1.208,2.844 1.979,3.01 0.771,0.167 10 false Warming up 2.49,2.844 3.188,3.167 0.698,0.323 10 false 10 minutes or more 1.583,2.156 1.938,2.323 0.354,0.167 10 false [A] 2.771,1.292 3.125,1.469 0.354,0.177 10 false [B] 3.552,2.167 3.917,2.333 0.365,0.167 10 false [C] 5.125,1.313 5.448,1.49 0.323,0.177 10 false [D] 5.51,1.583 5.844,1.771 0.333,0.188 10 false [E] 6.313,2.521 6.646,2.688 0.333,0.167 10 false Time 6.083,3.094 6.427,3.281 0.344,0.188 10 false [F] 6.25,2.021 6.833,2.188 0.583,0.167 10 false 10 km/h 3.438,1.427 4.531,1.594 1.094,0.167 10 false 64 km/h or more 4.667,0.76 5.917,0.948 1.25,0.188 10 false At least 3 times 5.99,1.042 6.969,1.552 0.979,0.51 10 false Accelerator Pedal Released (Fuel-cut) 3.427,0.344 4.156,0.854 0.729,0.51 10 false Accelerator Pedal Depressed 1.677,0.688 3.427,0.854 1.75,0.167 10 false Between 60 and 120 km/h 4.24,3.427 5.594,3.594 1.354,0.167 10 false Refer to figure below 3.448,2.885 4.698,3.177 1.25,0.292 10 false 10 seconds or more 4.708,3.052 5.885,3.344 1.177,0.292 10 false 5 seconds or more

A268862E47

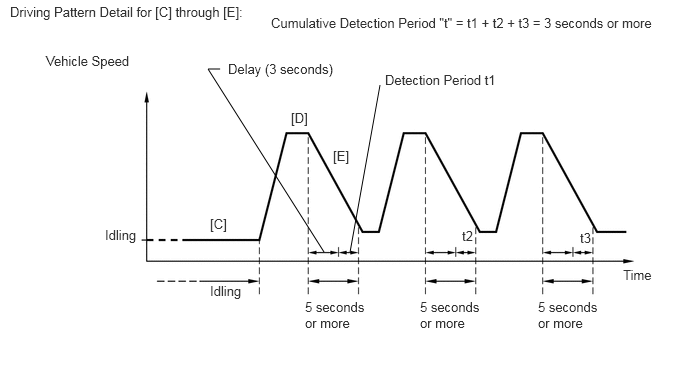

3.646,2.625 3.958,0.885 false 3.375,2.625 2.167,0.719 2.167,0.719 2.292,0.719 false 0.104,0.042 3.042,0.24 2.938,0.198 10 false Driving Pattern Detail for [C] through [E]: 0.479,0.552 2.25,0.75 1.771,0.198 10 false Vehicle Speed 2.823,0.156 7,0.406 4.177,0.25 10 false Cumulative Detection Period "t" = t1 + t2 + t3 = 3 seconds or more 1.094,2.365 1.51,2.563 0.417,0.198 10 false Idling 2.188,2.948 2.698,3.229 0.51,0.281 10 false Idling 3.177,3.115 3.833,3.479 0.656,0.365 10 false 5 seconds or more 2.188,2.25 2.448,2.521 0.26,0.271 10 false [C] 3.031,1.146 3.313,1.469 0.281,0.323 10 false [D] 3.469,1.542 3.729,1.813 0.26,0.271 10 false [E] 2.375,0.635 3.563,0.833 1.188,0.198 10 false Delay (3 seconds) 4.01,0.75 5.448,0.948 1.438,0.198 10 false Detection Period t1 4.813,2.375 4.99,2.625 0.177,0.25 10 false t2 6.042,2.396 6.302,2.635 0.26,0.24 10 false t3 6.49,2.781 6.875,2.979 0.385,0.198 10 false Time 4.375,3.115 5.031,3.479 0.656,0.365 10 false 5 seconds or more 5.604,3.115 6.26,3.479 0.656,0.365 10 false 5 seconds or more

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON.

7.

Turn the GTS on.

8.

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A].

9.

Drive the vehicle at a speed between 60 and 120 km/h (37 and 75 mph) for at least 10 minutes [B].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


10.

With the shift lever in M or 2nd gear [C], accelerate the vehicle to 64 km/h (40 mph) or more by depressing the accelerator pedal for at least 10 seconds [D].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


11.

Soon after performing step [D] above, release the accelerator pedal for at least 5 seconds without depressing the brake pedal in order to execute fuel-cut control [E].

12.

Allow the vehicle to decelerate until the vehicle speed decreases to less than 10 km/h (6 mph).

13.

Repeat steps [C] through [E] above at least 3 times in one driving cycle.

14.

Enter the following menus: Powertrain / Engine / Trouble Codes [F].

15.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



16.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

17.

Input the DTC: P219519, P219524, P219618 or P219623.

18.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.

·

If the judgment result is INCOMPLETE, perform steps [B] through [F] again.

·

[A] to [F]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.


HINT:
·

A low air fuel ratio sensor (sensor 1) current could be caused by a rich air fuel mixture. Check for conditions that would cause the engine to run rich.

·

A high air fuel ratio sensor (sensor 1) current could be caused by a lean air fuel mixture. Check for conditions that would cause the engine to run lean.

·

Sensor 1 refers to the sensor closest to the engine assembly.

·

Sensor 2 refers to the sensor farthest away from the engine assembly.

·

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.



PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P219519, P219524, P219618 OR P219623)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Trouble Codes.


e.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTC P219519, P219524, P219618 or P219623 is output A
DTC P219519, P219524, P219618 or P219623 and P00D562 are output
DTC P219519, P219524, P219618 or P219623 and other DTCs are output B


HINT:

If any DTCs other than P219519, P219524, P219618 or P219623 are output, troubleshoot those DTCs first.




A

2.CONFIRM IF VEHICLE HAS RUN OUT OF FUEL IN PAST

B

GO TO DTC CHART

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DIAGNOSTIC TROUBLE CODE CHART


2.CONFIRM IF VEHICLE HAS RUN OUT OF FUEL IN PAST
a.

Has the vehicle run out of fuel in the past?


Result:
Proceed to
YES
NO



YES

3.CLEAR DTC

NO

5.CLEAR DTC
3.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

4.CHECK WHETHER DTC OUTPUT RECURS (DTC P219519, P219524, P219618 OR P219623)
4.CHECK WHETHER DTC OUTPUT RECURS (DTC P219519, P219524, P219618 OR P219623)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

c.

Input the DTC: P219519, P219524, P219618 or P219623.


d.

Check the DTC judgment result.

Result:
Result Proceed to
NORMAL
(DTCs are not output) 		A
ABNORMAL
(DTC P219519, P219524, P219618 or P219623 is output) 		B




A

DTC CAUSED BY RUNNING OUT OF FUEL

B

5.CLEAR DTC
5.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

6.READ VALUE USING GTS (A/F (O2) SENSOR CURRENT B1S1)
6.READ VALUE USING GTS (A/F (O2) SENSOR CURRENT B1S1)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Data List / A/F (O2) Sensor Current B1S1.

Powertrain > Engine > Data List
Tester Display
A/F (O2) Sensor Current B1S1
50003 372 230

c.

Check the test value of the air fuel ratio sensor output (sensor 1) current during fuel-cut, referring to the Driving Pattern Detail for [C] through [E] in the Confirmation Driving Pattern.

HINT:
·

To measure the air fuel ratio sensor (sensor 1) current precisely, perform the fuel-cut operation as long as possible.

·

If it is difficult to measure the air fuel ratio sensor (sensor 1) current, use the snapshot function of the GTS.



Result:
Test Value Proceed to
Within normal range
(0.47 mA or more, and less than 2.2 mA) 		A
Outside normal range
(Less than 0.47 mA, or 2.2 mA or more) 		B




A

7.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)

B

22.REPLACE AIR FUEL RATIO SENSOR (SENSOR 1)
7.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.


e.

Warm up the air fuel ratio sensors at an engine speed of 2500 rpm for 90 seconds.


f.

Enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume for A/F Sensor / Data List / Coolant Temperature, A/F (O2) Sensor Current B1S1 and A/F (O2) Sensor Current B1S2.

Powertrain > Engine > Active Test
Active Test Display
Control the Injection Volume for A/F Sensor
Data List Display
Coolant Temperature
A/F (O2) Sensor Current B1S1
A/F (O2) Sensor Current B1S2
50004 372 8 205,230,564

g.

Perform the Control the Injection Volume for A/F Sensor operation with the engine idling.


h.

Monitor the output currents of the air fuel ratio sensors (A/F (O2) Sensor Current B1S1 and A/F (O2) Sensor Current B1S2) displayed on the GTS.

HINT:
·

The Control the Injection Volume for A/F Sensor operation lowers the fuel injection volume by 12.5% or increases the injection volume by 12.5%.

·

The air fuel ratio sensor (sensor 1) has an output delay of a few seconds and the air fuel ratio sensor (sensor 2) has a maximum output delay of approximately 20 seconds.

·

If the sensor output current does not change (almost no reaction) while performing the Active Test, the sensor may be malfunctioning.



Standard
GTS Display (Sensor) Injection Volume Status Current
A/F (O2) Sensor Current B1S1
(Air fuel ratio sensor (sensor 1)) 		12.5% Rich Below -0.075 mA
-12.5% Lean More than 0.037 mA
A/F (O2) Sensor Current B1S2
(Air fuel ratio sensor (sensor 2)) 		12.5% Rich Below -0.86 mA
-12.5% Lean More than 0.33 mA

Result:
Status of A/F (O2) Sensor Current B1S1 Status of A/F (O2) Sensor Current B1S2 Air Fuel Ratio Condition and Air Fuel Ratio Sensor (Sensor 1) Condition Proceed to
Lean Lean Actual air fuel ratio lean A
Rich Rich Actual air fuel ratio rich
Lean Lean/Rich Air fuel ratio sensor (sensor 1) malfunction B
Rich Lean/Rich Air fuel ratio sensor (sensor 1) malfunction
Lean/Rich Lean/Rich Normal C


Lean: During the Control the Injection Volume for A/F Sensor Active Test, the air fuel ratio sensor (sensor 1) output current (A/F (O2) Sensor Current B1S1) is consistently more than 0.037 mA, and the air fuel ratio sensor (sensor 2) output current (A/F (O2) Sensor Current B1S2) is consistently more than 0.33 mA.

Rich: During the Control the Injection Volume for A/F Sensor Active Test, the air fuel ratio sensor (sensor 1) output current (A/F (O2) Sensor Current B1S1) is consistently below -0.075 mA, and the air fuel ratio sensor (sensor 2) output current (A/F (O2) Sensor Current B1S2) is consistently below -0.86 mA.

Lean/Rich: During the Control the Injection Volume for A/F Sensor Active Test, the output current of the air fuel ratio sensor (sensor 1) or air fuel ratio sensor (sensor 2) alternate correctly.


HINT:

Refer to "Data List / Active Test" [A/F (O2) Sensor Current B1S1, A/F (O2) Sensor Current B1S2].

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DATA LIST / ACTIVE TEST




A

8.CHECK INTAKE SYSTEM

B

22.REPLACE AIR FUEL RATIO SENSOR (SENSOR 1)

C

19.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)
8.CHECK INTAKE SYSTEM
a.

Check the intake system for vacuum leaks.

Click hereEngine / Hybrid System>M20D-FKS (INTAKE / EXHAUST)>INTAKE SYSTEM>ON-VEHICLE INSPECTION

OK:

No leaks in the intake system.


HINT:

Perform "Inspection After Repair" after repairing or replacing the intake system.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

9.CHECK FOR EXHAUST GAS LEAK

NG

REPAIR OR REPLACE INTAKE SYSTEM

9.CHECK FOR EXHAUST GAS LEAK
a.

Check for exhaust gas leaks.

OK:

No gas leaks in exhaust system.


HINT:

Perform "Inspection After Repair" after repairing or replacing the exhaust system.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

10.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)

NG

REPAIR OR REPLACE EXHAUST SYSTEM

10.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.



e.

Enter the following menus: Powertrain / Engine / Active Test / Control the EGR Step Position / Data List / Engine Speed, Intake Manifold Absolute Pressure and Coolant Temperature.

Powertrain > Engine > Active Test
Active Test Display
Control the EGR Step Position
Data List Display
Engine Speed
Intake Manifold Absolute Pressure
Coolant Temperature
50004 372 25 211,385,205

f.

Check the engine idling condition and Intake Manifold Absolute Pressure values in the Data List while performing the Active Test.

NOTICE:
·

Do not leave the EGR valve open for 10 seconds or more during the Active Test.

·

Be sure to return the EGR valve to step 0 when the Active Test is completed.

·

Do not open the EGR valve 30 steps or more during the Active Test.



OK:

The value of Intake Manifold Absolute Pressure and Engine Speed change in response to EGR step position.


Standard:
- Control the EGR Step Position (Active Test)
0 Steps 0 to 30 Steps
Idling condition Steady idling Idling changes from steady to rough idling or engine stalls
Intake Manifold Absolute Pressure
(Data List) 		Intake Manifold Absolute Pressure value is 18 to 38 kPa(abs) (2.6 to 5.5 psi(abs))
(EGR valve is fully closed) 		Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed


HINT:

During Active Test, if the idling condition does not change in response to EGR step position, then there is probably a malfunction in the EGR valve.



Result:
Proceed to
OK
NG



OK

12.CHECK FUEL PRESSURE (FOR LOW PRESSURE SIDE)

NG

11.INSPECT EGR VALVE ASSEMBLY
11.INSPECT EGR VALVE ASSEMBLY
a.

Remove the EGR valve assembly.

Click hereEngine / Hybrid System>M20D-FKS (EMISSION CONTROL)>EGR VALVE>REMOVAL


b.

Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.


HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

12.CHECK FUEL PRESSURE (FOR LOW PRESSURE SIDE)

NG

REPLACE EGR VALVE ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (EMISSION CONTROL)>EGR VALVE>REMOVAL


12.CHECK FUEL PRESSURE (FOR LOW PRESSURE SIDE)
a.

Check the fuel pressure (for low pressure side).

Click hereEngine / Hybrid System>M20D-FKS (FUEL)>FUEL SYSTEM>ON-VEHICLE INSPECTION


Result:
Proceed to
OK
NG



OK

13.INSPECT PORT FUEL INJECTOR ASSEMBLY

NG

20.CHECK FUEL LINE
14.READ VALUE USING GTS (FUEL PRESSURE (HIGH))
a.

Connect the GTS to the DLC3.


b.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with all the accessories switched off.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Data List / Engine Speed, Coolant Temperature, Fuel Pressure (High) and Injection Mode.

Powertrain > Engine > Data List
Tester Display
Engine Speed
Coolant Temperature
Fuel Pressure (High)
Injection Mode
50003 372 211,205,265,294

e.

According to the display on the GTS, read the Data List.

Standard:
GTS Display Condition Specified Condition
Fuel Pressure (High)
·

Shift position: P

·

A/C: Off

·

Engine warmed up

·

Engine Speed: 3000 rpm

·

Injection Mode: Direct


2400 to 20000 kPag



Result:
Proceed to
OK
NG



OK

15.INSPECT DIRECT FUEL INJECTOR ASSEMBLY

NG

REPAIR OR REPLACE FUEL SYSTEM (FOR HIGH PRESSURE SIDE)

17.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

18.CHECK WHETHER DTC OUTPUT RECURS (DTC P219519, P219524, P219618 OR P219623)
18.CHECK WHETHER DTC OUTPUT RECURS (DTC P219519, P219524, P219618 OR P219623)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

c.

Input the DTC: P219519, P219524, P219618 or P219623.


d.

Check the DTC judgment result.

Result:
Result Proceed to
NORMAL
(DTCs are not output) 		A
ABNORMAL
(DTC P219519, P219524, P219618 or P219623 is output) 		B




A

END

B

REPLACE ECM

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL


19.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.



e.

Enter the following menus: Powertrain / Engine / Active Test / Control the EGR Step Position / Data List / Engine Speed, Intake Manifold Absolute Pressure and Coolant Temperature.

Powertrain > Engine > Active Test
Active Test Display
Control the EGR Step Position
Data List Display
Engine Speed
Intake Manifold Absolute Pressure
Coolant Temperature
50004 372 25 211,385,205

f.

Check the engine idling condition and Intake Manifold Absolute Pressure values in the Data List while performing the Active Test.

NOTICE:
·

Do not leave the EGR valve open for 10 seconds or more during the Active Test.

·

Be sure to return the EGR valve to step 0 when the Active Test is completed.

·

Do not open the EGR valve 30 steps or more during the Active Test.



OK:

The value of Intake Manifold Absolute Pressure and Engine Speed change in response to EGR step position.


Standard:
- Control the EGR Step Position (Active Test)
0 Steps 0 to 30 Steps
Idling condition Steady idling Idling changes from steady to rough idling or engine stalls
Intake Manifold Absolute Pressure
(Data List) 		Intake Manifold Absolute Pressure value is 18 to 38 kPa(abs)
(2.6 to 5.5 psi(abs))
(EGR valve is fully closed) 		Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed


HINT:

During Active Test, if the idling condition does not change in response to EGR step position, then there is probably a malfunction in the EGR valve.



Result:
Proceed to
OK
NG



OK

22.REPLACE AIR FUEL RATIO SENSOR (SENSOR 1)

NG

21.INSPECT EGR VALVE ASSEMBLY
20.CHECK FUEL LINE
a.

Check the fuel lines for leaks or blockage.


Result:
Proceed to
OK
NG



OK

GO TO FUEL PUMP CONTROL CIRCUIT

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>Fuel Pump Control Circuit


NG

REPAIR OR REPLACE FUEL LINE

21.INSPECT EGR VALVE ASSEMBLY
a.

Remove the EGR valve assembly.

Click hereEngine / Hybrid System>M20D-FKS (EMISSION CONTROL)>EGR VALVE>REMOVAL


b.

Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.


HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

22.REPLACE AIR FUEL RATIO SENSOR (SENSOR 1)

NG

REPLACE EGR VALVE ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (EMISSION CONTROL)>EGR VALVE>REMOVAL


23.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

24.CHECK WHETHER DTC OUTPUT RECURS (DTC P219519, P219524, P219618 OR P219623)
24.CHECK WHETHER DTC OUTPUT RECURS (DTC P219519, P219524, P219618 OR P219623)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

c.

Input the DTC: P219519, P219524, P219618 or P219623.


d.

Check the DTC judgment result.

Result:
Result Proceed to
NORMAL
(DTCs are not output) 		A
ABNORMAL
(DTC P219519, P219524, P219618 or P219623 is output) 		B




A

END

B

REPLACE ECM

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>ECM>REMOVAL
