RM3660EC _54 Brake _080771 BRAKE SYSTEM (OTHER) _0392410 BRAKE PEDAL(for Gasoline Model) A

BRAKE SYSTEM (OTHER) BRAKE PEDAL(for Gasoline Model) INSTALLATION

PROCEDURE

Hide Display 47121 1.INSTALL BRAKE PEDAL PAD

a.

Install the brake pedal pad to the brake pedal support assembly.

HINT:: Installation is easier after applying a small amount of soapy water.

Hide Display 84345 2.INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER

a.

Engage the 2 claws to install the stop light switch mounting adjuster.

Hide Display 3.INSTALL BRAKE PEDAL SUPPORT ASSEMBLY

a.

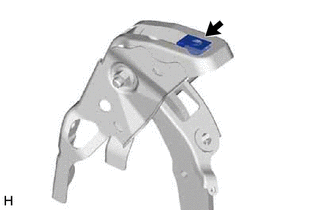

C416083

Install the nut to the brake pedal support assembly.

b.

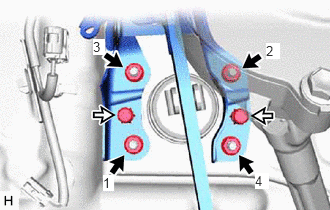

C416082C02

2.771,0.448 2.917,0.615 0.146,0.167 10 true 2 0.969,0.406 1.094,0.573 0.125,0.167 10 true 3 1.073,1.823 1.188,1.99 0.115,0.167 10 true 1 2.656,1.802 2.802,1.969 0.146,0.167 10 true 4

	Nut
	Clip

Temporarily install the brake pedal support assembly with 2 new clips.

c.

Install the 4 nuts.

Torque:: 12.7 N*m (130 kgf*cm, 9 ft.*lbf)

NOTICE:: Tighten the nuts in the order shown in the illustration.

d.

Install the brake pedal support assembly to the instrument panel reinforcement assembly with the bolt.

Torque:: 23.6 N*m (241 kgf*cm, 17 ft.*lbf)

e.

Engage the clamp to install the wire harness to the brake pedal support assembly.

Hide Display 47264A 4.INSTALL PUSH ROD PIN

a.

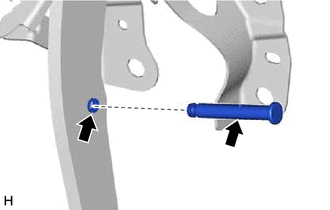

C416088C01

0,0 0,0 false

V100135

Lithium Soap Base Glycol Grease

Apply lithium soap base glycol grease to the pushrod pin and installation hole of the brake pedal support assembly.

b.

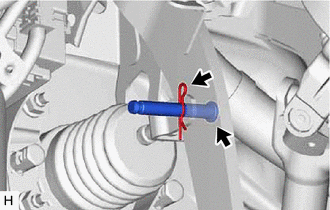

C416079

Connect the brake master cylinder push rod clevis to the brake pedal support assembly with the push rod pin, and install a new clip as shown in the illustration.

NOTICE:: Be sure to install the push rod pin in the correct direction.

Hide Display 47101A 5.INSTALL BRAKE PEDAL RETURN SPRING

a.

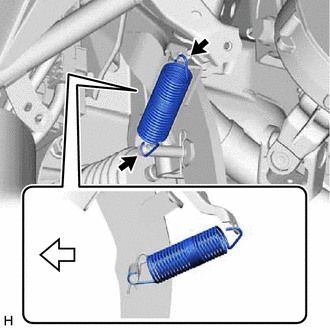

C416089C01

0,0 0,0 false

V100136

Front

Install the brake pedal return spring to the brake pedal support assembly and push rod pin as shown in the illustration.

Hide Display 84340 6.INSTALL STOP LIGHT SWITCH ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>INSTALLATION201906,999999,_59,_080784,_0393172,RM100000001HW6G_01_0014,

Hide Display 87211 7.INSTALL NO. 1 AIR DUCT

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>INSTALLATION202304,999999,_55,_080762,_0391589,RM100000002BCU7_01_0151,

Hide Display 58831A 8.INSTALL FRONT CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION202304,999999,_58,_080744,_0393717,RM100000002AVGG_01_0086,

Hide Display 58816D 9.INSTALL FRONT NO. 1 CONSOLE BOX INSERT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION202304,999999,_58,_080744,_0393717,RM100000002AVGG_01_0089,

Hide Display 73900 10.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Knee Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>INSTALLATION202307,999999,_58,_080741,_0392904,RM100000002D3D9_01_0001,

Hide Display 55432B 11.INSTALL LOWER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202304,999999,_58,_080744,_0393716,RM100000002B101_01_0291,

Hide Display 53601 12.CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202304,999999,_58,_080744,_0393716,RM100000002B101_01_0247,

Hide Display 55434F 13.INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION202304,999999,_58,_080744,_0393717,RM100000002AVGG_01_0088,

Hide Display 55317E 14.INSTALL NO. 1 INSTRUMENT SIDE PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202304,999999,_58,_080744,_0393716,RM100000002B101_01_0292,

Hide Display 15.INSPECT AND ADJUST BRAKE PEDAL

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE PEDAL (for Gasoline Model)>ADJUSTMENT202304,999999,_54,_080771,_0392410,RM100000002BD5K,

Hide Display 55606 16.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION202304,999999,_58,_080744,_0393717,RM100000002AVGG_01_0100,

Hide Display 62112A 17.INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0268,

Hide Display 67914 18.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0105,

Hide Display 19.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL (w/ Knee Airbag)

Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN,

Hide Display 20. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Knee Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>DTC CHECK / CLEAR202307,999999,_58,_080741,_0610731,RM100000002CH03,

Hide Display 21.INSPECT SRS WARNING LIGHT (w/ Knee Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>OPERATION CHECK202307,202502,_58,_080741,_0610731,RM100000002CH00,202502,999999,_58,_080741,_0610731,RM100000002QSGL,

Hide Display 22. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL (w/ Knee Airbag)

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202304,999999,_V1,_143216,_0598315,RM100000002B3MJ,
